Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GDCN
-
Model Number:
-
HGW1
-
Product name:
-

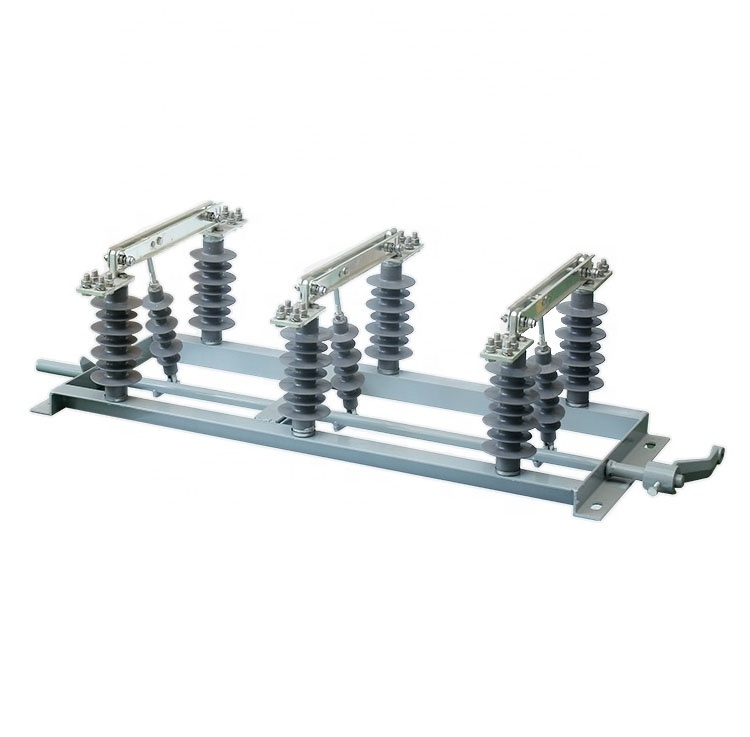

Disconnect Switch
-
Usage:
-
High Voltage
-
Max. Voltage:
-
12KV
-
Material:
-
Copper
-
Packing:
-
The wooden case
-
OEM production:
-
Accept
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
400/630/1000/1250
-
Rated Voltage:
-
12
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GDCN
-
Model Number:
-
HGW1
-
Product name:
-
Disconnect Switch
-
Usage:
-
High Voltage
-
Max. Voltage:
-
12KV
-
Material:
-
Copper
-
Packing:
-
The wooden case
-
OEM production:
-
Accept
Product Description
1.The altitude does not exceed 1000m,
2.The ambient air temperature: Maximum+ 40'C ;Minimum:General Area -30'C, Paramos -40 C;
3.The earthquake intensity does not exceed 8 degrees;
4.Installation Location: No fire, explosion danger, pollution, chemical corrosion and frequent violent vibration of the place
Technical specification
|
Type
|
Rated
voltage
(KV)
|
Rated
current
(A)
|
4S Thermally stable current
|
Dynamic stable current
|
Impulse withstand
voltage
|
|
Power-frequency
withstand voltage
|
|
||
|
|
|
|
|
|
voltage to earth
|
Interfracture voltage
|
voltage to earth
|
voltage to earth
|
||
|
HGW1-12D/400
|
12
|
400
|
16
|
50
|
75
|
85
|
38
|
42
|
||
|
HGW1-12D/630
|
12
|
630
|
20
|
50
|
75
|
85
|
38
|
42
|
||
|
HGW1-12D/1000
|
12
|
1000
|
25
|
63
|
75
|
85
|
38
|
42
|
||
|
HGW1-12D/1250
|
12
|
1250
|
25
|
63
|
75
|
85
|
38
|
42
|
||
