Quick Details
-
Applicable Industries:
-
die cutting company
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DP
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2400mm*1290mm*1910mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
kiss cutting machine
-
Max Feeding Width:
-
650mm/1000mm/1500mm
-
Cutting Type:
-
Foam cutter
-
Cutting Speed:
-
30-70T/M
-
Precise:
-
0.10mm
-
Main Power:
-
2.2/3KW
-
Machine Voltage:
-
220V/380V
-
Working Plane Dimension:
-
650*600mm, 800*600mm, 1000*600mm
-
Certification:
-
CE
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
650mm
-
Applicable Industries:
-
die cutting company
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DP
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2400mm*1290mm*1910mm
-
Weight:
-
1500 kg
-
Marketing Type:
-
kiss cutting machine
-
Max Feeding Width:
-
650mm/1000mm/1500mm
-
Cutting Type:
-
Foam cutter
-
Cutting Speed:
-
30-70T/M
-
Precise:
-
0.10mm
-
Main Power:
-
2.2/3KW
-
Machine Voltage:
-
220V/380V
-
Working Plane Dimension:
-
650*600mm, 800*600mm, 1000*600mm
-
Certification:
-
CE
die cutting and creasing machine
DP-650P:
| DP-650P Sheet Material Hydraulic Oil Press | |||||||
| FUNCTIONAL CHARACTERSTICS | |||||||
| Template launch device under the belt , easy and flexible operation | |||||||
| Electronic positioning, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, | |||||||
| push board back and forth precision can be controlled in 0.02 to 0.05 mm | |||||||
| There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable | |||||||
| Applies to punch electronic materials such as aluminum foil ,PET, protective film through cutting or kiss cutting, | |||||||
| all kinds of precision components of stamping forming | |||||||
| PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection | |||||||

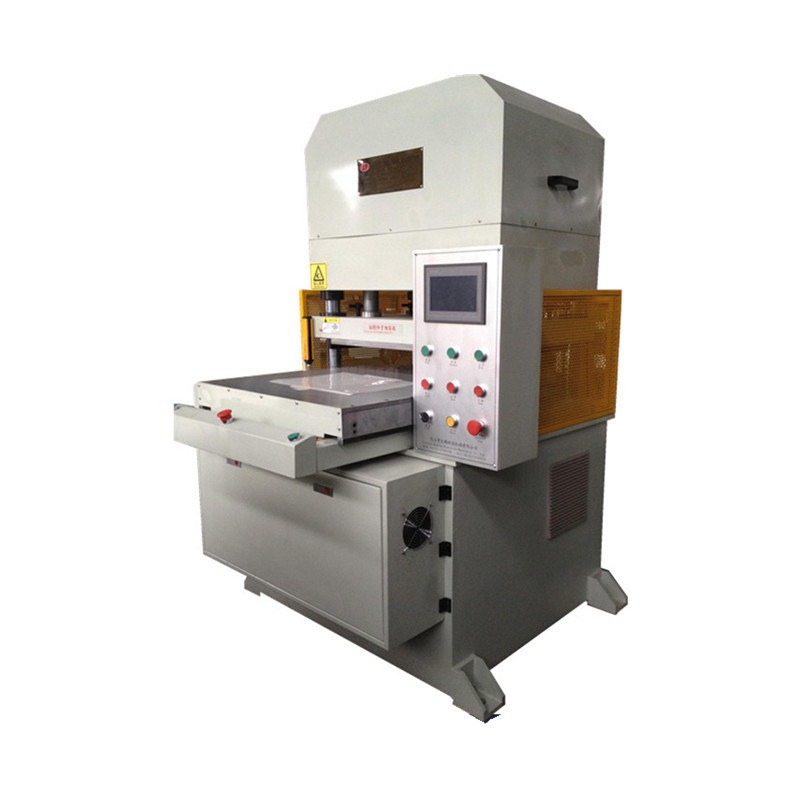

| Pictures of machine | |||||||
| Main Technical Parameters | |||||||
| ITEM NO. | Capacity | table-board underneath size | Press base size | Table height | HORSE POWER | Max spacing | Max range |
| TON | mm | mm | mm | HP | mm | mm | |
| DP-650P | 40 | 650*600mm | 650*600 | 800 | 7.5 | 100 | 100 |
| DP-800P | 40 | 600*800mm | 600*800 | 800 | 10 | 100 | 100 |
| DP-1000P | 60 | 600*1000mm | 600*1000 | 1000 | 15 | 100 | 100 |
| DP-1050P | 75 Ton | 1050*750mm | 1050*750 | 1000 | 15 | 100 | 100 |
| ITEM NO. | accuracy | Machine size | Packing size | CBM | weight | ||
| DP-650P | ±0.03mm | 1320X1420X1900mm | 1.6X1.4X2.1 M3 | 4.7 M3 | 2.2 ton | ||
| DP-800P | ±0.03mm | 1320X1650X1900mm | 1.6X1.8X2.1 M3 | 6.05 M3 | 2.5 ton | ||
| DP-1000P | ±0.03mm | 1320X1900X1920mm | 1.6X2.1X2.2 M3 | 7.4 M3 | 3.2 ton | ||
| DP-1050P | ±0.03mm | 2000X1500X1920mm | 2.2X1.75X2.2 M3 | 8.5 M3 | 3.5 ton | ||
die cutting and creasing machine
Item No.: DP-1050P die cutting and creasing machine
Technical Data
l Operation platform area :1050*750mm
l Operation platform range : 50-100mm (Adjustable)
l Max Pressure capacity : 40T (Adjustable)
l Table board height :1000mm
l Work route adjustment accuracy :±0.01m/m
l Weight : 2.5T
Configuration Detail
l PLC 1 Set Mitsubishi
l Touch Screen 1 Set Shanghai EV
l Safety Photoelectric 1 Set Taiwan
l Automatic Depth Adjustment Motor 1 Set Taiwan
l Main Motor (7.5KW-4) 1 Set QL Taiwan
l Oil Pump 1 Set Danxin Taiwan
l Magnetic Valve 1 Group Danxin Taiwan
l Main engine Oil Cylinder 1 Set Self-production
l Feeding Oil System Cylinder 1 Set Self-production
l Air Cooling System 1 Set Self-production
l Oil Seal 1 Set Japan
l Feed Plate Slippery Course 2 Bar HIWINSH
l PE Plate(10mm) 1 Piece Made in China
*Special design blanking Positioning Mechanism, Accuracy ±0.01mm,Material can be through cutting and kiss cutting , Fine adjustment accuracy 0.01mm
*Security guards , Safety magic eye Protection Device, CE Safety Labels\
*Template launch device under the belt , easy and flexible operation
*Electronic positioning, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm, push board back and forth precision can be controlled in 0.02 to 0.05 mm
*There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable
*Applies to punch electronic materials such as aluminum foil ,PET, protective film through cutting or kiss cutting, all kinds of precision components of stamping forming
*PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection
l
l Packing : Wooden case packing
Design of machine :
