Quick Details
-
Specification:
-
1"~12"
-
Length:
-
50m,100m
-
Thickness:
-
1-3 mm
-
Standard:
-
ISO 9001:2008,CE
-
size:
-
2 4 6 8 10 12 inch
-
working pressure:
-
2-10 bar
-
bursting pressure:
-
6-30 bar
-
thickness:
-
1-3 mm
-
length:
-
50m ~100m
-
working temperature:
-
-5C ~ +65C
-
application:
-
agiculture irrigation pipe
-
certificate:
-
CE,ROHS,REACH,PAK,BSCI,Germany TUV testing
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GIRUI
-
Model Number:
-
lfh001
-
Specification:
-
1"~12"
-
Length:
-
50m,100m
-
Thickness:
-
1-3 mm
-
Standard:
-
ISO 9001:2008,CE
-
size:
-
2 4 6 8 10 12 inch
-
working pressure:
-
2-10 bar
-
bursting pressure:
-
6-30 bar
-
thickness:
-
1-3 mm
-
length:
-
50m ~100m
-
working temperature:
-
-5C ~ +65C
-
application:
-
agiculture irrigation pipe
-
certificate:
-
CE,ROHS,REACH,PAK,BSCI,Germany TUV testing
Product Description
|
Inch Size
|
Metric I.D.(mm)
|
0.2MPa (kg/m)
|
0.3MPa (kg/m)
|
0.4MPa (kg/m)
|
0.6MPa (kg/m)
|
0.8MPa (kg/m)
|
1.0MPa (kg/m)
|
|
1''
|
25.4±1.3
|
0.125
|
0.13
|
0.14
|
0.155
|
0.17
|
0.185
|
|
1-1/4''
|
31.8±1.3
|
0.145
|
0.155
|
0.175
|
0.195
|
0.21
|
0.23
|
|
1-1/2''
|
38.1±1.5
|
0.185
|
0.2
|
0.24
|
0.27
|
0.3
|
0.32
|
|
2''
|
50.3±2.0
|
0.25
|
0.3
|
0.35
|
0.375
|
0.39
|
0.42
|
|
2-1/2''
|
63.5±2.3
|
0.32
|
0.38
|
0.45
|
0.48
|
0.52
|
0.55
|
|
3''
|
76.2±2.3
|
0.38
|
0.47
|
0.57
|
0.63
|
0.69
|
0.78
|
|
4''
|
101.6±2.5
|
0.52
|
0.58
|
0.72
|
0.8
|
0.9
|
1.1
|
|
5''
|
127±2.8
|
0.75
|
0.85
|
0.95
|
1.1
|
1.2
|
/
|
|
6''
|
152.4±3.0
|
0.9
|
1.05
|
1.2
|
1.4
|
1.8
|
/
|
|
8''
|
203.2±3.5
|
1.45
|
1.55
|
1.7
|
1.9
|
2.4
|
/
|
|
10''
|
254±4
|
2.3
|
2.5
|
/
|
/
|
/
|
/
|
|
12''
|
304.8±4.5
|
3.2
|
3.5
|
/
|
/
|
/
|
/
|

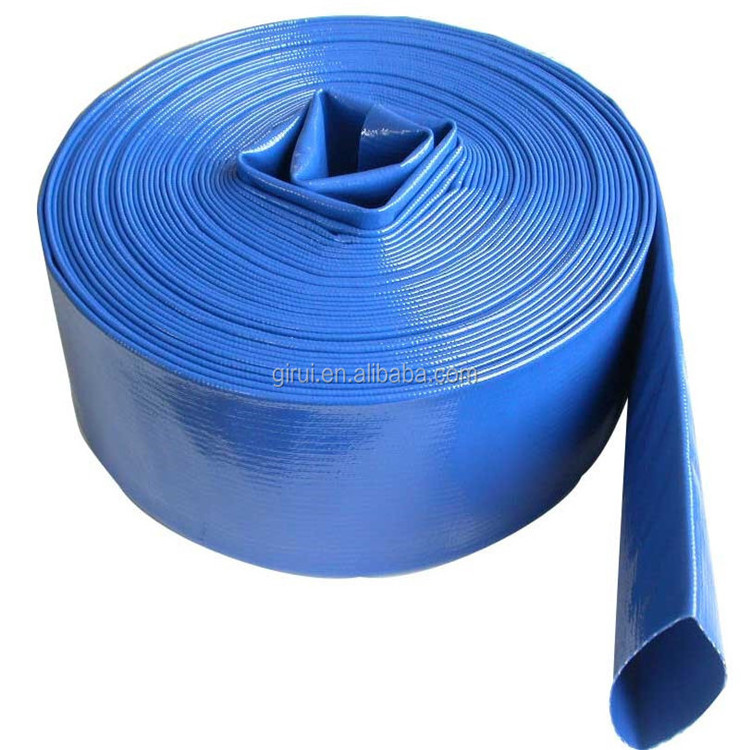

Lay Flat Hose Is Use As Delivery Hose In Agriculture,For Water Pump, Construction,Mines, Environment Rotection,Industry, Marine Use In Ships, Transferring Corrosive Chemicals And Liquids. Hi-Strength Terylene Yam And Qualified Pvc Synthesis Materials. Light Weight, Good Flexibility, Bright Color, Smooth Smearing Layer. Hoses Coil Flat For Easy Storage, Convenient For Moving, Corrosion Resistance And Ageing Resistance. Use Temperature:-5℃~65℃
