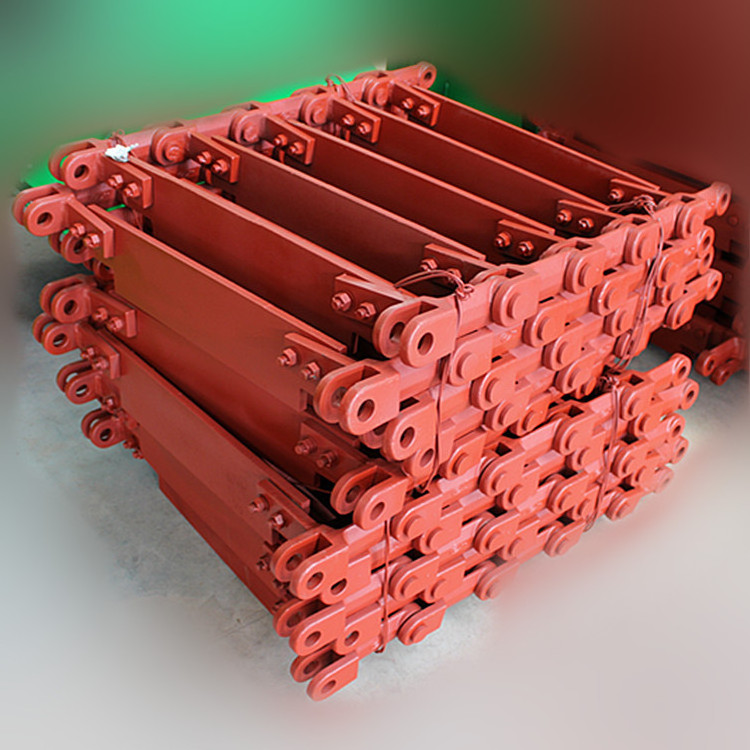

Wear- Resistant Alloy Steel Drop Forged scraper conveyor chain

Wear- Resistant Alloy Steel Drop Forged scraper conveyor chain

FOB Reference Price: Get Latest Price

≥1 Meters

US $70

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hubei, China

Brand Name:: YIJI

chain link:: Fork style

chain link material:: 20CrMnTi or customized

chain surface treatment:: Carburizing treatment

scraper material:: carbon steel or customized

scraper width:: 100~1400mm or customized

Chain broken load:: 112~750KN

chain brand:: YIJI

place of origin:: Hubei yidu yunji China

chain function:: transmission power

Chain category:: scraper conveyor chain

Quick Details

Warranty:: 1 Year

Applicable Industries:: Grain and oil, metallurgy, power plant

Weight (KG):: 20

Place of Origin:: Hubei, China

Brand Name:: YIJI

chain link:: Fork style

chain link material:: 20CrMnTi or customized

chain surface treatment:: Carburizing treatment

scraper material:: carbon steel or customized

scraper width:: 100~1400mm or customized

Chain broken load:: 112~750KN

chain brand:: YIJI

place of origin:: Hubei yidu yunji China

chain function:: transmission power

Chain category:: scraper conveyor chain

Product Description

Specification

1. We are the only national standard drafter and maker of scraper conveyor Chain.

2. It is made by imported technology.

3. Good wear resistance and corrosion resistance.

4. ISO,TUV

Wear- Resistant Alloy Steel Drop Forged scraper conveyor chain

Scraper conveyor chain feature

1. It is made of alloy steel links with 40Cr, 20CrMnTi,it has strong broken load.

2. It has strict Carburizing treatment, and has high wear resistance and strong tensile strength.

3, It is make by forging process.

Scraper conveyor chain function.

It is the key part to transmit power of conveyor, to make the conveyor to finishe conveying material.

Scraper conveyor chain parameters

Item	Type	P	W1	W2	D	W3	H	T	R1/R2
1	142N	142	43	22	25	19	50	12.5	R25
2	150D	150	60	30	30	28	70	18	R35
3	MG20	200	70	29	35	27	70	17	R35
4	MG20B	200	70	29	30	27	70	17	R35
5	MG20C	200	70	29	28	27	70	17	R35
6	ML40	200	48	25	25	23	58	18	R31
7	ML40A	200	48	25	25	23	58	18	R31
8	MS32	200	42	22	25	20	50	12	R25
9	MS32B	200	42	22	20	20	50	12	R25
10	MS32C	200	42	22	20	20	50	12	R25
11	MS55	200	80	38	28	35	71	25	R35.5/R35
12	MS63	250	70	33	32	30	80	20	R44/R40
13	S16	100	30	16	14	15	27	8	R14/R13.5
14	S20	125	34	18	17	17	33	8	R17/R16.5
15	S25	160	48	25	20	23	40	13	R20/R19.5
16	S30	142	46	23	25	22	49	14	R25/R27
17	S55D	200	87	40	36	38	85	30	R42.5
18	T63	250	95	42	40	40	86	30	R44/R43
19	Z16	100	40	20	17	18	35	12	R18/R17.5
20	Z20	125	50	26	20	24	45	14	R23/R22.5
21	Z20D	125	52	26	26	24	60	16	R30
22	Z25	160	58	30	25	28	55	18	R28/R27.5
23	Z25D	160	66	31	28	29	64	22	R32
24	3006	200	65	33	36	30	70	24	R36.4/R35
25	Z30	142	64	30.5	25	29	50	18	R25.5/R27
