Quick Details
-
Size:
-
235mmx225mmx63mm
-
Weight:
-
about 2.5kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUABAI
-
After-sales Service Provided:
-
No overseas service provided
-
Size:
-
235mmx225mmx63mm
-
Weight:
-
about 2.5kg

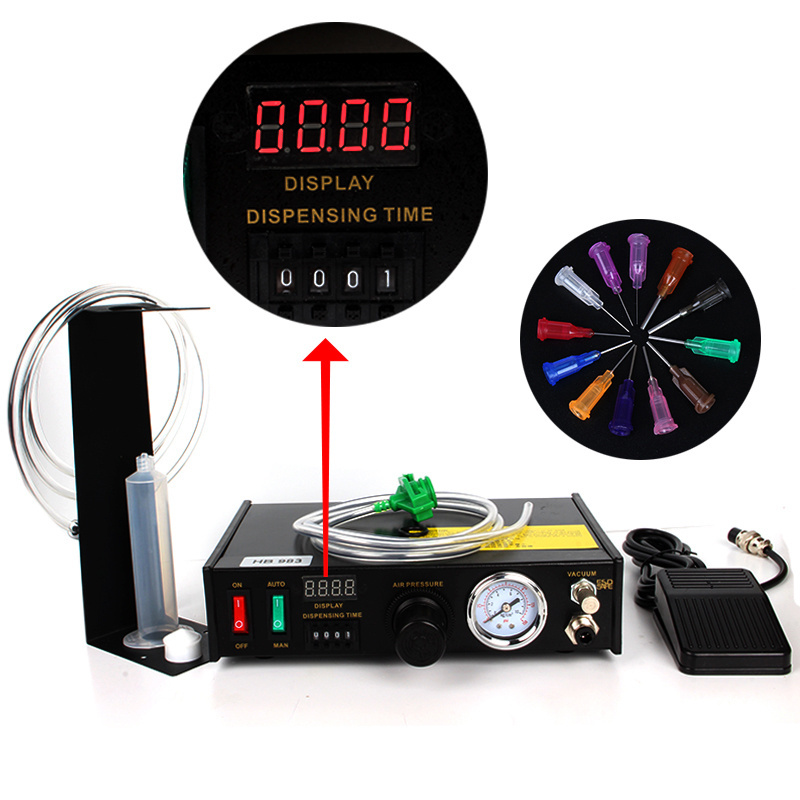

HB983 Digital Automatic Glue Dispenser/ plastic injection UV Solder Paste/Liquid glue dispensing display machine
Describtion :
Operated by a foot pedal switch and preset timer, this automatic liquid dispenser can dispense fixed amount of glue/soldering paste to determined location via the needle and barrel.
Features:
Two controlling modes: manual mode & auto mode.
Precise control of dispensing drops and dispensing cycle.
Suck-back function ensures no leakage drops.
Designed for wide range of application: cellphone key-press, printing, switch, connectors, computer, digital products, digital camera, MP3, MP4, electronic toys, horn, buzzer, electronic components, integrated circuit, LCD screen, relays, speaker, LED lamp, chassis bonding, optical lens, mechanical components, seal, etc.
Work great for secure the SMD components position before soldering work.
Suitable for many different liquids, such as quick-drying glue, red glue, yellow glue, epoxide-resin glue, silica gel, grease, screw locking glue and soldering flux.
System comes with 3 30cc liquid barrels, 10 steel needle/tips and 10 plastic tips.
This unit need to be connected to air compressor.
Specifications:
Timer: Programmale: 0.01-1S,0.1-10S,0.2-20S,0.3-30S
Manual mode: Continuous / momentary
Repeat tolerance: ±0.5%
Voltage input: AC 220~240, 50Hz
Internal voltage: 24V DC
Minimum deposit: 0.01ml
Air input: 2.5 to 7 bar(35 to 100psi)
Air output: 0.1 to 5.5 bar(1 to 78psi)
Item size: 23.8 * 15.5 * 6cm
Item weight: 1673g
Package size: 26.5 * 22.5 * 14cm
Package weight: 2685g
package including :
1 * Main Unit
1 * Foot Switch
1 * Dispenser Stand
3 * 30cc Liquid Barrels
11 * Plastic Tips
1 * Air Tube to Barrel
1 * Air Tube to Air Supply
1 * Hand Switch
1 * Power Cable
