Quick Details
-
Lift Speed:
-
Depends
-
Weight (KG):
-
100 kg
-
Product name:
-
10t CD MD electric wire rope hoist
-
Color:
-
Customized
-
Application:
-
Workshop, outside etc.
-
Voltage:
-
380V or customized
-
Can be installed on:
-
Single girder crane, or I-beam, H-beam
-
After Warranty Service:
-
Video technical support
-
Feature:
-
Space Saved Hoist
-
Current overload protection system:
-
Include
-
Weight overload protection:
-
Include
-
MOQ:
-
1 Set
Quick Details
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Lift Speed:
-
Depends
-
Weight (KG):
-
100 kg
-
Product name:
-
10t CD MD electric wire rope hoist
-
Color:
-
Customized
-
Application:
-
Workshop, outside etc.
-
Voltage:
-
380V or customized
-
Can be installed on:
-
Single girder crane, or I-beam, H-beam
-
After Warranty Service:
-
Video technical support
-
Feature:
-
Space Saved Hoist
-
Current overload protection system:
-
Include
-
Weight overload protection:
-
Include
-
MOQ:
-
1 Set

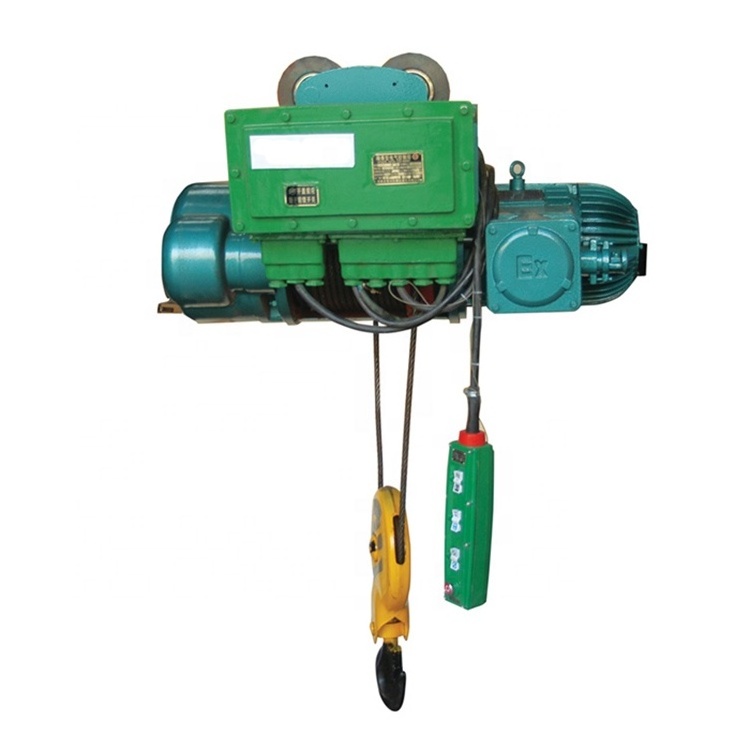

CD/MD 15 ton electric wire rope hoist
Product Description
- If you want handling equipment with compact design, light dead weight, wide use, competitive price, convenient operation and easy maintenance, wireless remote control electri hoist is your best choice.
- Wireless remote control electric hoist can be installed in the single beam crane like gantry crane, bridge crane, jib crane...
- Wireless remote control electric hoist can also be used as a winch, with slight modification .
Contact us for more information !
Technology Parameter
|
Lifting capacity(t) |
0.25 |
0.5 |
1, 2, 3, 5 |
10 |
16 |
20 |
|
Lifting height(m) |
3, 6, 9 |
3, 6, 9 |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
9, 12, 18 |
9, 12, 18 |
|
Lifting speed(m/min) |
8 |
7 |
3.5 |
4 |
||
|
Travel speed(m/min) |
20 |
20/30 |
20 |
20 |
||
|
Work system |
Intermediate FC=25% |
|||||
|
Power source |
Three-phase AC 380V 50Hz |
|||||
Please contact me for customized parameters !
Working Environment
The wireless remote control electric hoist's working environment temperature is between -20 °C to +40 °C, and relative humidity of air should within 85%, and within 1000 meters Altitude.
Flammable, explosive and corrosive gases or dust must not be contained.
Wireless remote control electric hoist is widely used in warehouse, factories, mines, cargo storage areas and shop, essential in raising working efficiency and improving working conditions.
Structure
√Motors
a. Motor of wireless remote control electric hoist is an taper type rotor motor with braking
b.Mini electric wire rope hoist is made by special motor factory for cranes,it is of the best quality motors
c. It has bigger torque, can be adapted to moving frequently and the Maximum torque is 2.4-3 times than the rated torque.
√Rope drum
The rope drum of wireless remote control electric hoist is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
√Rope guide
The rope guide of wireless remote control electric hoist is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is so designed to ensure proper tensioning of the rope.
√Gear box
Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears of wireless remote control electric hoist are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
√Construction
Brake, motors, gear box & control panel are independent units and are accessible easily. The complete wireless remote control electric hoist can be easily maintained by keeping it in its installed position, thus saving on precious labor as well as down time maintenance time.
Contact me for more parameters and quotation !
Safety Features for wireless remote control elcetric hoist
• Fire stopper: Adjustable mechanical memory structure, high sensitivity
• Weight limiting stopper: preventing hook clashing the top, sensitive reaction.Safe and durable, easy to install and commissioning.
• Overload limiter:Preset related data according working condition, show accurate weight value clearly . Modular, low power design.
• Brake and clutch ensure the safety under any circumstance, no slip under load.
• IP55 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
• Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
• Low voltage contactor ensures the safe and reliable operation
