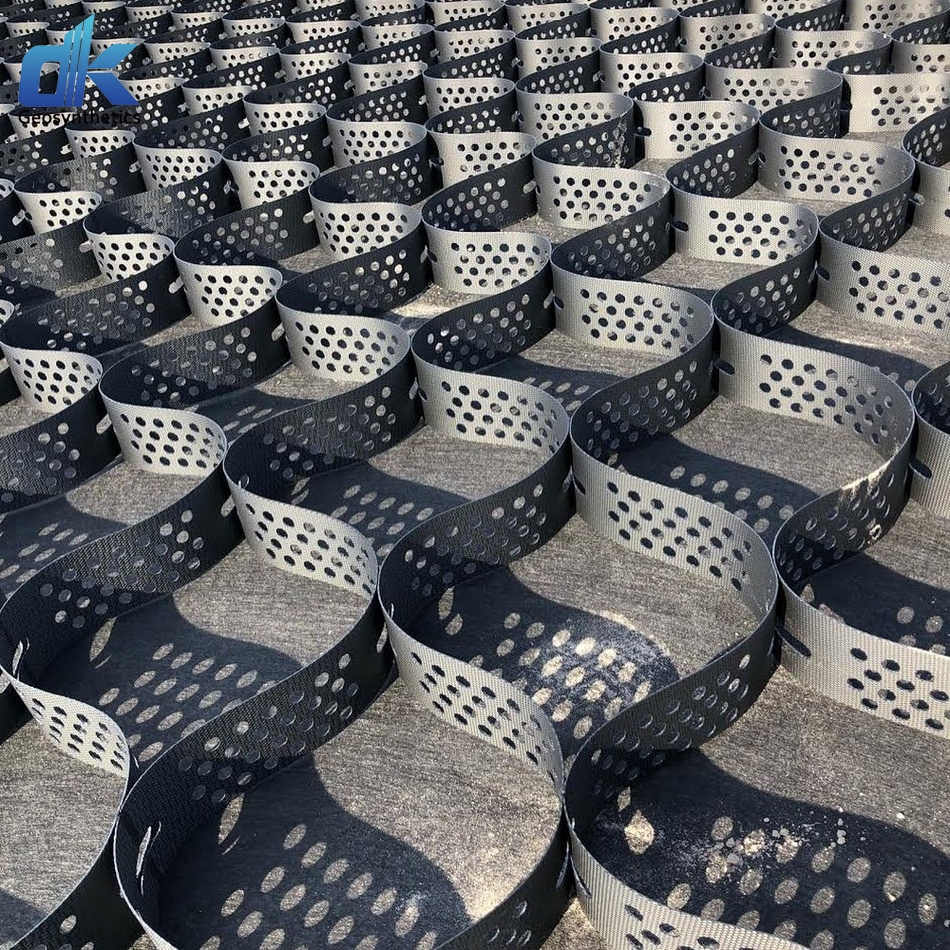

Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by
ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Road
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Model Number:
-
Geocell
-
Product name:
-
Geocell
-
Material:
-
pp
-
Height:
-
50-75-100-150-200mm
-
Welding distance:
-
330-1000mm
-
Color:
-
Black Yellow White Green
-
Thickness of smooth geocell:
-
1.1mm-1.2mm
-
Thickness of Textured geocell:
-
1.5-1.6mm
-
MOQ:
-
1000m2
-
Application of geocell:
-
Slope Protection
-
Peel strength of welding point:
-
1000N or 1420N/10CM
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support, Onsite Installation
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Road
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dingkun
-
Model Number:
-
Geocell
-
Product name:
-
Geocell
-
Material:
-
pp
-
Height:
-
50-75-100-150-200mm
-
Welding distance:
-
330-1000mm
-
Color:
-
Black Yellow White Green
-
Thickness of smooth geocell:
-
1.1mm-1.2mm
-
Thickness of Textured geocell:
-
1.5-1.6mm
-
MOQ:
-
1000m2
-
Application of geocell:
-
Slope Protection
-
Peel strength of welding point:
-
1000N or 1420N/10CM
Products Description
Specification
|
Materials Properties
|
Unit
|
Index
|
|
|
|
|
|
Test Method
|
|||||
|
Cell Depth
|
mm
|
50
|
75
|
100
|
150
|
200
|
250
|
|
|||||
|
Welding space
|
mm
|
330/356/400/445/450/500/600/660/712/800
|
|
|
|
|
|
|
|||||
|
Polymer Density
|
g/cm3
|
0.935-0.965
|
|
|
|
|
|
ASTM D 1505
|
|||||
|
Environmental Stress Crack Resistance
|
Hours
|
>400
|
|
|
|
|
|
ASTM D 5397
|
|||||
|
Environmental Stress Crack Resistance
|
Hours
|
6000
|
|
|
|
|
|
ASTM D 1693
|
|||||
|
Carbon Black Content
|
%
|
1.5-2.0
|
|
|
|
|
|
ASTM D 1603
|
|||||
|
Oxidative Induction Time
|
Min
|
≥150
|
|
|
|
|
|
ASTM D 5885
|
|||||
|
Nominal Sheet Thickness After Texturing
|
mm
|
≥1.52
|
|
|
|
|
|
ASTM D 5199
|
|||||
|
Yield Strength
|
kn/m
|
20
|
|
|
|
|
|
ASTM D 6693
|
|||||
|
Resistance to breakage
|
kn/m
|
12
|
|
|
|
|
|
ASTM D 6693
|
|||||
|
Elongation at the fluenca
|
%
|
12
|
|
|
|
|
|
ASTM D 6693
|
|||||
|
Elongation at break
|
%
|
100
|
|
|
|
|
|
ASTM D 6693
|
|||||
|
Tear Resistance
|
N
|
155
|
|
|
|
|
|
ASTM D 1004
|
|||||
|
Strip Puncture Resistance
|
N
|
450
|
|
|
|
|
|
ASTM D 4833
|
|||||
|
Resistance of joints to peel off
|
kn/m
|
10
|
|
|
|
|
|
EN ISO13426-1B
|
|||||
|
Seam peel strength
|
N
|
710
|
1065
|
1420
|
2130
|
2840
|
3550
|
EN ISO13426-1B
|
|||||
|
Seam Efficiency
|
%
|
100
|
|
|
|
|
|
GRI-GS13
|
|||||
|
Nominal Expanded Cell Size (width x length )
|
mm
|
244x205，333x280，527x442，etc
|
|
|
|
|
|
|
|||||
|
Nominal Expanded panel Size (width x length)
|
m
|
2.44x6.15, 5.0x7.0,5.8x11.05, etc
|
|
|
|
|
|
|
|||||
Sheet thickness:
(1) 1.5mm~1.7mm for textured perforated geocell
(2) 1.0mm~1.2mm for flat surface geocell
(1) 1.5mm~1.7mm for textured perforated geocell
(2) 1.0mm~1.2mm for flat surface geocell
Product Feature
Application
1. Used for all kinds of road building, driveways, soil stabilization and embankment stabilization
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.
Packaging & Delivey
Packed in woven geotextile and strength belt or PE film Or packed according to customers' requirements such as mark the company Logo (Export standard package). Packaging size and container capacity vary according to product specifications.
we can package and transport the products according to the requirements of the customers. please contact us if you need.
FAQ
Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as your requests. It would be better if you could provide us with samples.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,then it is OK. But if no stock available, don't worry, we can take your order with our other clients' order to produce together, but it needs to wait some time.
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you. After confirming your order, the sample's freight cost will be refunded.
Q4. How will you follow my order?
A4. When the goods are started to produce, we will take photos for the goods and send it to you.
A1. Yes.of course.We can produce the products as your requests. It would be better if you could provide us with samples.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,then it is OK. But if no stock available, don't worry, we can take your order with our other clients' order to produce together, but it needs to wait some time.
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you. After confirming your order, the sample's freight cost will be refunded.
Q4. How will you follow my order?
A4. When the goods are started to produce, we will take photos for the goods and send it to you.
