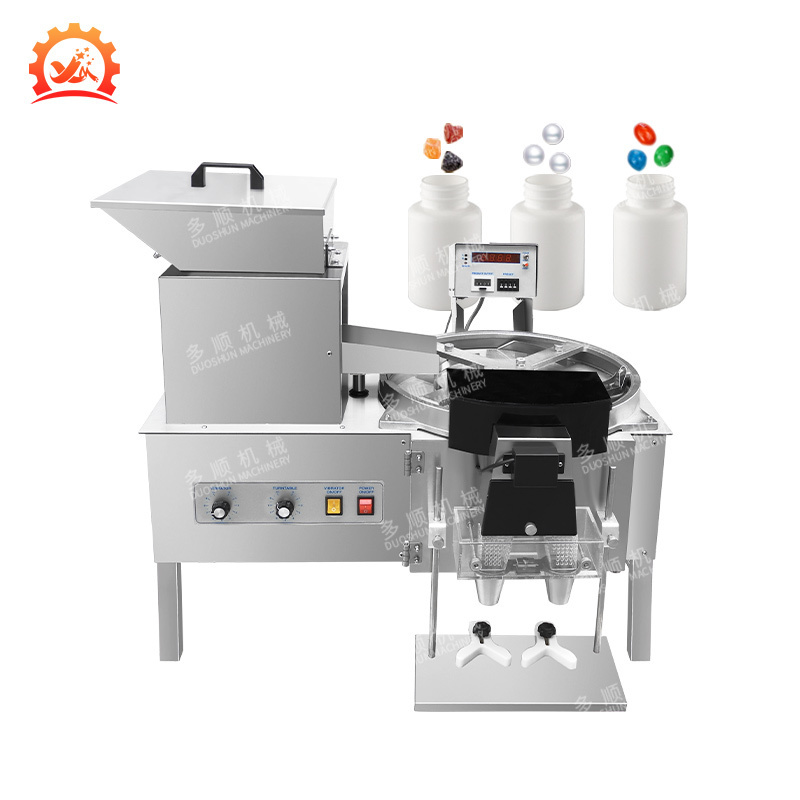

Automatic DXS-2 Intelligent Electronic Fish Oil Soft Gelatin Capsule Candy Tablet Counter Counting Machine

Automatic DXS-2 Intelligent Electronic Fish Oil Soft Gelatin Capsule Candy Tablet Counter Counting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3800

≥3 Sets

US $3450

≥5 Sets

US $3100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Material:: tablet, pill, capsule, pellet, candy

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Voltage:: 220V 50-60Hz

Dimension(L*W*H):: 850*700*850mm

Weight (KG):: 65

Power (kW):: 0.1

Product name:: Capsule Counting Machine

Application:: 000-5# Capsules

Feature:: High Precision

Keyword:: Desktop Capsule Counter

Material:: Stainless Steel 304

Working range:: Adjustable

Advantage:: Digital

Counting range, piece:: 1-9999pcs/times

Model:: DXS-2

Function:: Capsuel Counting

Quick Details

Capacity (bottle/min):: 1 - 40 bottle/min

Bottle Capacity (pcs/bottle):: 1 - 9999 pcs/bottle

Capacity (pcs/h):: 80000 pcs/h

Applicable Material:: tablet, pill, capsule, pellet, candy

Place of Origin:: Guangdong, China

Brand Name:: DUOSHUN

Voltage:: 220V 50-60Hz

Dimension(L*W*H):: 850*700*850mm

Weight (KG):: 65

Power (kW):: 0.1

Product name:: Capsule Counting Machine

Application:: 000-5# Capsules

Feature:: High Precision

Keyword:: Desktop Capsule Counter

Material:: Stainless Steel 304

Working range:: Adjustable

Advantage:: Digital

Counting range, piece:: 1-9999pcs/times

Model:: DXS-2

Function:: Capsuel Counting

- Factory Area -

More than 20,000 m ² area.

- Quantity in Stock -

More than 5,000 sets .

- Team Power -

More than 300 employees .

- Monthly Yield -

More than 2,000 sets .

- Established Time -

More than 20 years .

- Monthly Sales -

More than 1,000 sets .

Machine Model	DXS-2
Application	Capsule/Softgel/Tablet/ Pill/Granule
Counting Range	1-9999
Production Capacity	1400pcs/min(capsule #1) *2200pcs/min(tablet 115mm)**
Material Diameter	5-23mm(customized)
Material Thickness	≥4mm
Bottle Limit	≤240mm
Voltage	220V 50-60Hz 100W
Machine Weight	65kg

Product Application

Product Description

Diagram 1

1. feeding storage hopper

2. vibrating feeder

3. control panel

4. electric eye

5. output (2)

6. Y-type positioner (2)

7. counter

8. vibration plate

9. position regulator (2)

Diagram 2

1. indicator light

2. counting display

3. clear

4. reset

5. preset

6. product output

7. vibrator control

8. turntable control

9. vibrator ON/OFF

10. power ON/OFF

Feeding Storage Hopper:

Big storage hopper, made of SUS304, clean and hygienic.

Feeding Device:

Vibration feeding, feeding speed can be adjusted by controlling vibration degree.

Turntable:

Glass turntable, rotary counting design, the rotational speed can be adjusted, fast and accurate.

Electric Eye:

Special electric eye protection device to ensure accurate counting.

Output:

Lay off side by side to m ake collecting operation easier. Y-type positioner can adjust the position to fit various kinds of bottles.

Product Parameter

Machine Model	DXS-2	DXS-4
Application	Capsule/Softgel/Tablet/Pill/Granule	Capsule/Softgel/Tablet/Pill/Granule
Counting Range	1-9999	1-9999
Production Capacity	1400pcs/min(capsule #1) *2200pcs/min(tablet 115mm)**	1800pcs/min(capsule #1) 2600pcs/min(tablet 11*5mm)
Material Diameter	5-23mm(customized)	5-23mm(customized)
Material Thickness	≥4mm	≥4mm
Bottle Limit	≤240mm	≤240mm
Voltage	220V 50-60Hz 100W	220V 50-60Hz 100W
Machine Dimensions	*850700850mm*	950800900mm
Machine Weight	65kg	70kg
