--Motor grader is designed for excavation and profiling, construction and repair of roads, used for moving and distributing
soil.
--As well as for planning side ditches, bankets and slopes, clearing roads from precipitation, mixing soils with various building
materials on the roadbed, as well as for loosening asphalt, cobblestone pavements and heavy soils with the help of an additional
rear ripper.
--Motor grader works with soils of 1-3 categories with differences from 40 to -40 C in a temperate climate. Class 140.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
11600 kg
-
Dimension(L*W*H):
-
9015*2600*3400mm
-
Product name:
-
motor grader
-
Engine:
-
Cummins 6BTAA5.9-C1850
-
Rated power/speed:
-
132kW/2200rpm
-
Operating weight:
-
15900kg
-
Wheelbase (mm):
-
6260mm
-
Wheel tread:
-
2155mm
-
Minimum ground clearance:
-
430mm
-
Turning radius:
-
7800mm (Outer side of front wheel)
-
Maximum digging depth of blade:
-
500mm
-
Gears:
-
Six forward and three reverse
Quick Details
-
Engine Brand:
-
Cummins
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Weight:
-
11600 kg
-
Dimension(L*W*H):
-
9015*2600*3400mm
-
Product name:
-
motor grader
-
Engine:
-
Cummins 6BTAA5.9-C1850
-
Rated power/speed:
-
132kW/2200rpm
-
Operating weight:
-
15900kg
-
Wheelbase (mm):
-
6260mm
-
Wheel tread:
-
2155mm
-
Minimum ground clearance:
-
430mm
-
Turning radius:
-
7800mm (Outer side of front wheel)
-
Maximum digging depth of blade:
-
500mm
-
Gears:
-
Six forward and three reverse
Product Description

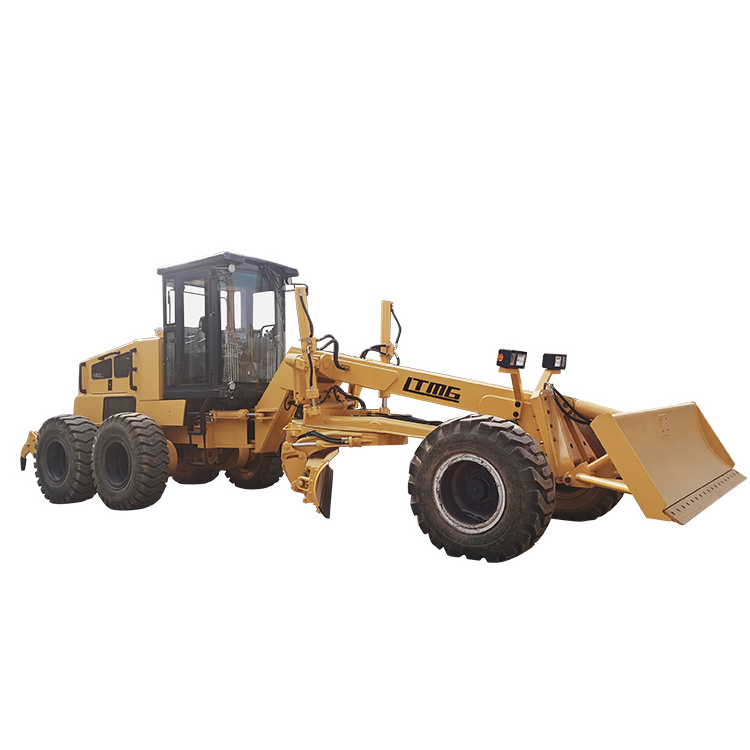

LTMG Motor Grader
Motor Grader Introduction
Product Paramenters
|
MODEL
|
|
LG135
|
LG165
|
LG180
|
LG190
|
LG220
|
|
Operating mass
|
kg
|
13800
|
15000
|
16000
|
16000
|
16900
|
|
Front axle load
|
kg
|
4000
|
4150
|
5150
|
5150
|
5820
|
|
Rear axle load
|
kg
|
9800
|
10850
|
10850
|
10850
|
11080
|
|
Max.forward speed
|
km/h
|
38.3
|
40.4
|
36/38.2
|
36/38.2
|
36.8
|
|
Max.backward speed
|
km/h
|
24.4
|
25.7
|
25/24.5
|
25/24.5
|
24.8
|
|
Speed gear number
|
|
F6/R3
|
F6/R3
|
F6/R3
|
F6/R3
|
F6/R3
|
|
Turning radius
|
mm
|
7500
|
7500
|
7800
|
7800
|
7800
|
|
Hydraulic system pressure
|
Mpa
|
18
|
18
|
18
|
18
|
18
|
|
Blade length x height
|
mm
|
3660x610
|
3660x610
|
3965x610
|
3965x610
|
3965x610
|
|
Front wheeltrack
|
mm
|
2150
|
2150
|
2150
|
2150
|
2150
|
|
Rear wheeltrack
|
mm
|
2165
|
2255
|
2255
|
2255
|
2255
|
|
Wheelbase
|
mm
|
5347
|
5347
|
5647
|
5647
|
5647
|
|
Engine model
|
|
QSB5.9
|
QSB5.9
|
QSB5.9
|
WP6G190E330
|
QSC8.3
|
|
Engine power
|
kW
|
97
|
125
|
132
|
140
|
158
|
|
Overall dimensions
|
mm
|
8270x2495x3390
|
8605x2695x3420
|
8605x2695x3420
|
8605x2695x3420
|
8605x2695x3420
|
