⑧
Acid base regulation ⑨ high pressure pump ⑩ RO system 11.TDS test 12.middle tank 13. second pressure pump 14. RO system 15.Pure water tank 16. feed water pump 17.Ozone .after 18 item is parts which can choose or not
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
295kg
-
Size:
-
1600*900*1600mm
-
Power:
-
2.15kw
-
Weight (KG):
-
295 kg
-
Application:
-
Water Purification
-
After Warranty Service:
-
Online Video Technical Support
-
Advantage:
-
24 Hours Automatic Running
-
Certification:
-
CE/ISO 9001
-
Control:
-
PLC+Touch Screen
-
Capacity:
-
250L
-
Flow rate:
-
260 - 300 L/h
-
Filter Type:
-
Reverse Osmosis Ro Water Treatment
-
Filtering material:
-
Precision Filtration + Activated Carbon Filter
-
Micron Rate:
-
0.0001um
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hailian
-
Material:
-
SS304
-
Weight:
-
295kg
-
Size:
-
1600*900*1600mm
-
Power:
-
2.15kw
-
Weight (KG):
-
295 kg
-
Application:
-
Water Purification
-
After Warranty Service:
-
Online Video Technical Support
-
Advantage:
-
24 Hours Automatic Running
-
Certification:
-
CE/ISO 9001
-
Control:
-
PLC+Touch Screen
-
Capacity:
-
250L
-
Flow rate:
-
260 - 300 L/h
-
Filter Type:
-
Reverse Osmosis Ro Water Treatment
-
Filtering material:
-
Precision Filtration + Activated Carbon Filter
-
Micron Rate:
-
0.0001um
Product Show

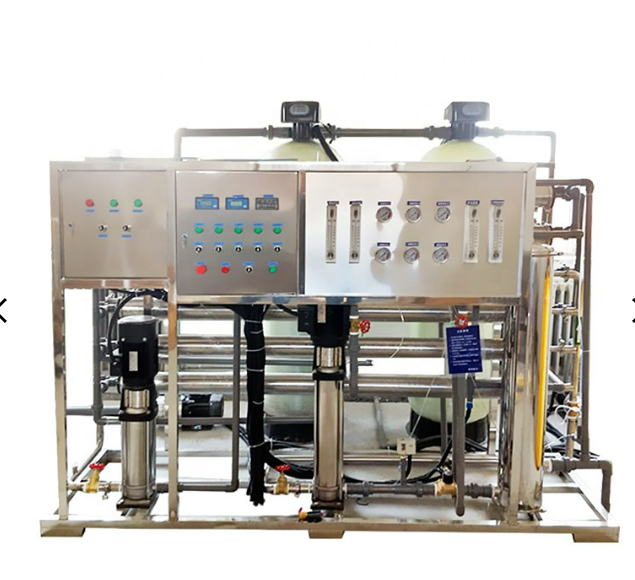

Front view
The machine adopts regular three-dimensional design, the operating system is simple and convenient, the panel and control head can be selected, usd PLC simulation screen monitoring is installed
Back view
Independent suspended reverse osmosis membrane arrangement structure. The pressure pump is in front. Convenient for later machine inspection and routine maintenance
Side view
There is a water quality detection port on the side, which is convenient for real-time sampling and detection. The pipeline adopts horizontal or vertical direction
Details Exhibition
Manufacturing Technique
Certificate Authentication
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Manufacturing Technique
Whole water treatment process flow chart
① raw water tank ②raw water pump ③ dosing system ④ sand filter ⑤ carbon filter ⑥ PP filter ⑦ PH regulator
Delivery Package
Full container packaging
Adhere to each part of the wooden packing fixed, fixed wood triangle to prevent the movement of goods.
LCL packing
Plastic film packaging, plus wood inspection free wooden cases.
FAQ
|
Q : How many days can delivery after i payment？and which payment way you can use?
|
|
|
|
|
||||
|
A: IF The machine small than 5T make in 10 days . and big than this need half month. payment way not have limit
|
|
|
|
|
||||
|
Q: Do you have after sell service?
|
|
|
|
|
||||
|
A: whole life supply and free parts give during warranty.
|
|
|
|
|
||||
