IPC-HFW2431DG-4G-SP-EAU-B Da hua Outdoor 4MP PIR Detection built-in Mic Speaker Lithium Battery LTE 4G solar powered ip camera

IPC-HFW2431DG-4G-SP-EAU-B Da hua Outdoor 4MP PIR Detection built-in Mic Speaker Lithium Battery LTE 4G solar powered ip camera

FOB Reference Price: Get Latest Price

≥2 Sets

US $168

≥3 Sets

US $160

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: da hua

Model Number:: IPC-HFW2431DG-4G-SP-EAU-B

Product name:: Da hua 4G Solar Powered IP Camera

Image Sensor:: 1/3" CMOS

Effective Pixels:: 2688 x 1520

Max. IR LEDs Length:: 30m

Active Deterrence:: Light Warning, Sound Warning

4G:: Yes

Audio Input/ Output:: 1/1, l (built-in mic/ Speaker)

Camera Protection:: IP66

Storage:: FTP; Micro SD card (supports up to 512 GB); NAS

Memory:: Built-in 8 GB eMMC memory

Quick Details

Special Features:: Built-in Siren, NIGHT VISION, Motion Detection, Vandal-proof, Waterproof / Weatherproof, Two-way Audio, PAN-TILT, Human Motion Tracking, Sound Detection

Function:: Waterproof / Weatherproof, Two-way Audio, PAN-TILT, NIGHT VISION, Built-in Mic, Built-in Siren, Alarm I/O, Wide Angle

Customized support:: Online technical support, Customized logo, Software reengineering, OEM, ODM

Place of Origin:: Zhejiang, China

Brand Name:: da hua

Model Number:: IPC-HFW2431DG-4G-SP-EAU-B

Product name:: Da hua 4G Solar Powered IP Camera

Image Sensor:: 1/3" CMOS

Effective Pixels:: 2688 x 1520

Max. IR LEDs Length:: 30m

Active Deterrence:: Light Warning, Sound Warning

4G:: Yes

Audio Input/ Output:: 1/1, l (built-in mic/ Speaker)

Camera Protection:: IP66

Storage:: FTP; Micro SD card (supports up to 512 GB); NAS

Memory:: Built-in 8 GB eMMC memory

Products Description

IPC-HFW2431DG-4G-SP-EAU-B

4MP IR Fixed-focal Bullet 4G Solar Power Network Camera

> 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light/IR LED.
> Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
> Built in high-performance 4G Module that suits all mobile networks.
> Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature.
> Built-in 8 GB eMMC memory chip that protects key records from being lost.
> Supports solar power, making it ideal for use in locations that have exposure to sunlight.
> Standalone with built-in solar panel and battery, battery cycle life can last up to 10 days at the rate of 1-hour remote live view per day.
> Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk.
> IP67 protection.

Driven by low power consumption technology, 4G Solar Power Network PT Camera operates safely in areas that do not have access to electricity and the internet. Designed for convenience, it is easy to install, cost effective and supports multiple types of 4G bands to meet the needs of different countries. It features two-way talk which allows you to communicate with people in front of the camera in real-time. The camera is also equipped with smart dual illuminators, which help the camera display clear images in full color, and capture videos of critical events.

With a built-in high-performance 4G mobile network module, the camera can be directly registered to cloud platforms after a 4G SIM card has been inserted into it. It can be installed anywhere without the hassle of network cables. Users can perform real-time monitoring and remote control of the camera from a mobile client through 4G network.

Starlight

With its large image sensor and large aperture, the camera delivers high performance and quality, even in low-light conditions. The starlight feature allows the camera to capture highly detailed images in accurate color, recognizing targets even at night or in scenes with limited light.

Two-way Talk

With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Cyber Security

Da hua network cameras employ a series of security technologies, including security authentication and
authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Technical Datasheet

Brief specifications for a quick acknowledge of this item, for further detailed parameters or technical consult, please feel free to contact us at HERE.

Camera Model	IPC-HFW2431DG-4G-SP-LA-B
Image Sensor	1/3" CMOS
Pixel	4 MP
Max. Resolution	2688 (H) × 1520 (V)
Min. Illumination	0.01 Lux@F1.6 (Color,30IRE) 0.001 Lux@F1.6 (B/W,30IRE) 0 lux (Illuminator on)
Illumination Distance	IR: 50 m (164.04 ft) Warm light: 30 m (98.43 ft)
Illuminator Number	2 (IR) 2 (white light)
PIR Sensor Distance	10 m (the height of device is 2.5 m, placed horizontally) 5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal)
Battery Type	Lithium-ion
Capacity	10Ah
Max. Charging Voltage	4.2V
Operating Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Battery Voltage	3.6V
Cycle Lifetime	Sleep Mode:7 days (at the rate of 1-hour remote live view per day)
Battery Life	More than 500 cycles
Battery Weight	Approx. 192 g (0.42 lb)
Solar Module
Maximum Power	5.5W
Cell type	Monocrystalline
Operating Temperature	–40 °C to +80 °C (–40 °F to +176 °F)
Dimensions	247 mm × 219 mm×179 mm (9.72" × 8.62" × 7.05")
Standard testing condition	AM = 1.5, 25 °C (77 °F), 1000 W/m², SMQ + 12%
Lens	2.8 mm; 3.6 mm; 6 mm
Field of View	2.8 mm: H: 102°; V: 54°; D:121° 3.6 mm: H: 84°; V: 42°; D:101° 6 mm: H: 52°; V: 48°; D:61°
Active Deterrence
Light Warning	White light warning Flash duration: 5 s–30 s Flash frequency: High, medium, low
Sound Warning	1 sound warning alarm The alarm can be configured to go off 1-3 times
Video Compression	H.265; H.264; H.264B; H.264H; MJPEG(Sub Stream)
Streaming Capability	2 streams
Resolution	1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480)
Video Frame Rate	Main stream: 1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Audio Compression	G.711a; G.711Mu; G.726; PCM
Network Port	RJ-45 (10/100 Base-T)
4G	Yes
Frequency Band	LTE-FDD: B1/2/3/4/5/7/8/12/17/28/66 LTE-TDD: Band 38/40 WCDMA: Band 1/2/3/4/5/8 GSM: 850/900/1800/1900 MHz
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS
Storage	FTP; Micro SD card (supports up to 512 GB); NAS
Management Software	DMSS
Mobile Client	iOS; Android
Audio Input	1 channel (built-in mic)
Audio Output	1 channel (built-in speaker)
Power Supply	5.4 VDC, 3A (Standard solar panel)
Battery Life on a Full Charge	Sleep Mode: 7days (at the rate of 1-hour remote live view per day)
Power Consumption	Sleep: 35 mW Static: 2.3 W (daytime,only SD storage) 2.5 W (daytime: pulling stream in 4G), 4.8 W (illuminator on, pulling stream in 4G) Max.: 10 W (illuminator + PTZ + heater + pulling stream in 4G)
Operating Temperature	0 °C to +50 °C (32 °F to +122 °F)
Protection	IP66 TVS 2000 V lightning proof; surge protection; voltage transient protection
Product Dimensions	336 mm × 247 mm × 223 mm (13.23" × 9.72" × 8.78") (L × W × H)
Gross Weight	2.14 kg (4.72 lb)

Successful Projects

1- This a Surveillance Projects installed in Melborne, Australia.

Customer preferred to have a long range visible 4K PTZ camera and people counting 4K Bullet camera. So we suggested DH- SD8A840-HNF-PA which is 8MP 4K 40X zoom with 500m laser IR and auto-tracking function, and IPC-HFW71242H-Z which is 12MP Wizmind Series with face recognition, people counting, ANPR etc intelligent AI camera. Besides that, there also other accessories like PoE switch, camera bracket and cables suggested to customer. The whole system running very well.

Why Choose Us

Our company

As a professional project-base structure designed hd cctv camera manufacturer, GWSecu had passed ISO9001-14001 quality management system authentication, all products have been successfully certificated by CE, FCC, ROHS.

We're also Da hua distributor for the brand products as always. Origin English firmware version and 2 years warranty service. Welcome to contact us for more information.

Your benefits from GWSECU.

1- Original international version products and support future firmware upgrade if necessary.

2- Online technical support to help you design the system and recommend most cost-effective and suitable products.
3- Fast delivery within 1-10 working business day base on models in stock.
4- 18 years golden supplier with Alibaba Trade Assurance to protect your purchase.

5- OEM Service available to put your company brand on the products and package box.

6- Two years worry-free warranty service.

Packing & Delivery

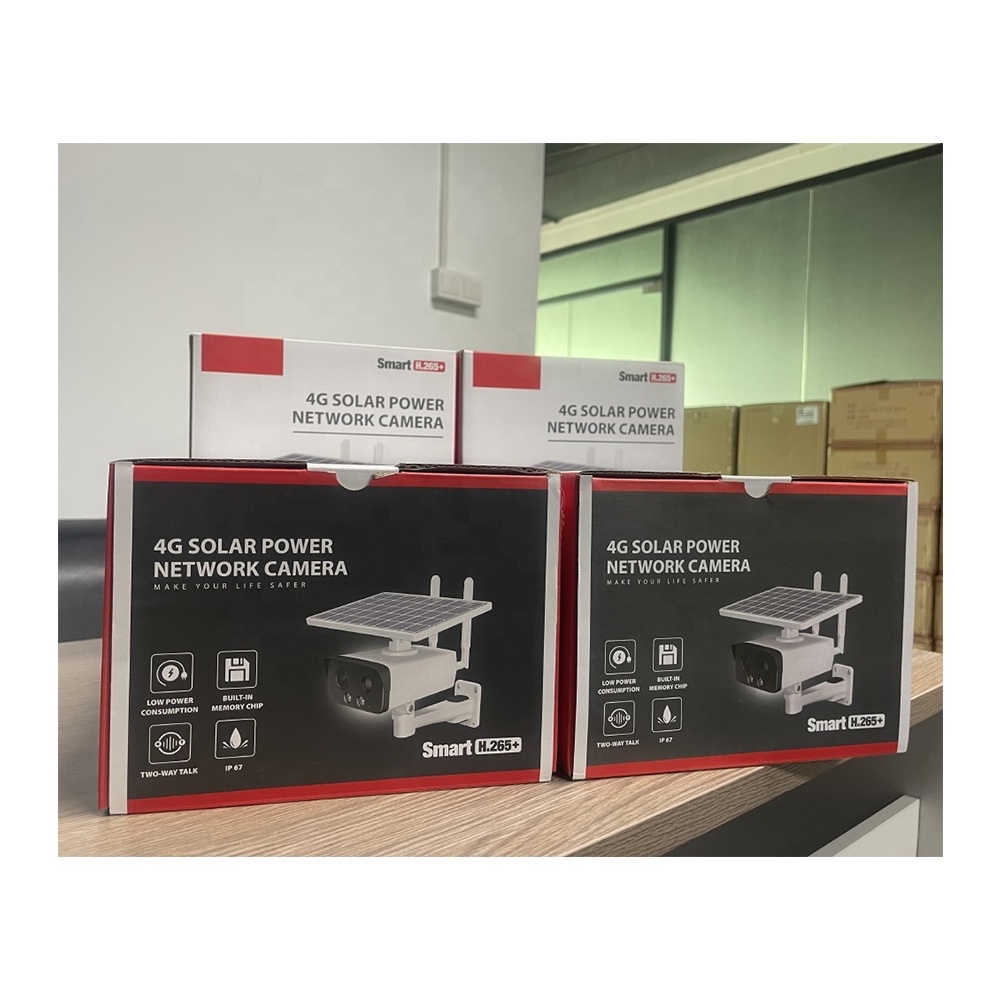

We pack the goods well just make sure our customer receive all items in good condition.
