Stainless Steel 60 Plate Wort Chiller Brazed Plate Heat Exchanger with 1/2 NPT Barb Adapter for Hydronic Heating

Stainless Steel 60 Plate Wort Chiller Brazed Plate Heat Exchanger with 1/2 NPT Barb Adapter for Hydronic Heating

FOB Reference Price: Get Latest Price

≥10 Pieces

US $54.5

≥50 Pieces

US $49.5

≥100 Pieces

US $35.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Wellbom

Liquid Flow Rate:: /

Maximum Working Pressure:: 2.0 Mpa(290 psi)

Weight:: 6.5 KG

Dimension(L*W*H):: 190mm*72mm*140mm

Working Temperature Range:: /

Name:: 60 Plates Wort Chiller

Material:: Stainless Steel 304 + Copper

Barb:: 1/2" NPT

Capacity:: 500,000 - 600,000 Btu/hr Capacity

Min. Operating Temp:: -256F

Test pressure:: 653psi

Max. Operating Temp:: 482F

Refrigeration Capacity:: 1-5 KW(3400-17000 BTU/hour)

Heat Transfer Area/plate:: 0.012m2(0.14ft2)

Packing:: one by one boxes

Quick Details

Structure:: Plate Heat Exchanger

Voltage:: 0

Core Components:: PLATE

Place of Origin:: Guangdong, China

Brand Name:: Wellbom

Liquid Flow Rate:: /

Maximum Working Pressure:: 2.0 Mpa(290 psi)

Weight:: 6.5 KG

Dimension(L*W*H):: 190mm*72mm*140mm

Working Temperature Range:: /

Name:: 60 Plates Wort Chiller

Material:: Stainless Steel 304 + Copper

Barb:: 1/2" NPT

Capacity:: 500,000 - 600,000 Btu/hr Capacity

Min. Operating Temp:: -256F

Test pressure:: 653psi

Max. Operating Temp:: 482F

Refrigeration Capacity:: 1-5 KW(3400-17000 BTU/hour)

Heat Transfer Area/plate:: 0.012m2(0.14ft2)

Packing:: one by one boxes

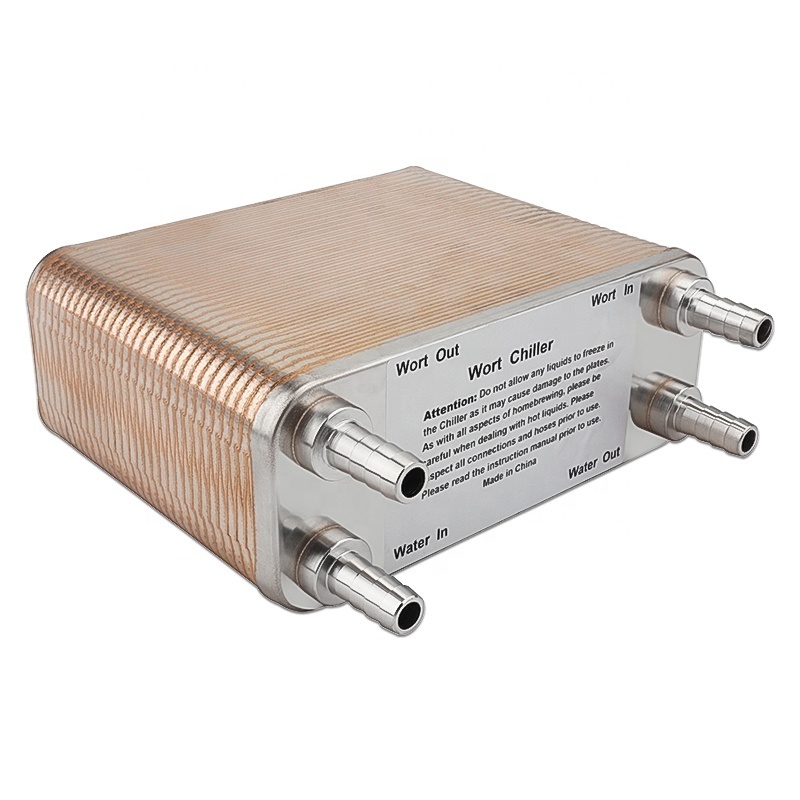

Stainless Steel 60 Plate Wort Chiller Brazed Plate Heat Exchanger with 1/2 NPT Barb Adapter for Hydronic Heating

SS 304 heat exchanger 60 Plates Wort Chiller

1---We are manufacturer of SS 304 Heat Exchanger Wort Chiller

2---60 Plates Wort Chiller: 1/2" Barb

3---Material: 304 stainless steel plates with 99.9% copper brazed, can reduce contamination or oxidation in your home brew.

4---Three size Heat Exchanger Beer Wort Chiller for your choose: 20 plates/30plates/60 plates wort chiller.

5---We can customized design for bard： 1/2” Barb/ 3/4” Barb and so on are welcome.

Product Description

Name:	Homebrew Beer 60 plates wort chiller 1/2" Barbed
Material:	Stainless Steel 304L, 99.9% Copper
Product Size:	19x7.2x14 cm
Design Temperature:	-195°C to +220°C (-319°F to 430°F)
Heat Transfer Area/plate:	0.012m2(0.14ft2)
Thickness of plates:	0.3 mm(0.0118")
Max Flow Rate:	66.6L/min(17.6gpm)
Design Pressure:	1.0 Mpa(145 psi), Test Pressure: 2.0 Mpa(290 psi)
Refrigeration Capacity:	1-5 KW(3400-17000 BTU/hour)
