Quick Details
-
Brand Name:
-
Aipuxin
-
Model Number:
-
High frequency radar level gauge
-
Material:
-
304 stainless steel
-
Mode:
-
Contactless
-
Product name:
-
High frequency radar level gauge
-
Medium:
-
Liquid/powder/granule
-
Power supply:
-
24VDC
-
Measuring range:
-
70 meters
-
Medium temperature:
-
-40~230℃
-
Process pressure:
-
-0.1~3Mpa
-
Precision:
-
±5mm
-
Frequency Range:
-
26GHz/80GHZ
-
Protection level:
-
IP67
-
Electrical Interface:
-
M20*1.5
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Aipuxin
-
Model Number:
-
High frequency radar level gauge
-
Material:
-
304 stainless steel
-
Mode:
-
Contactless
-
Product name:
-
High frequency radar level gauge
-
Medium:
-
Liquid/powder/granule
-
Power supply:
-
24VDC
-
Measuring range:
-
70 meters
-
Medium temperature:
-
-40~230℃
-
Process pressure:
-
-0.1~3Mpa
-
Precision:
-
±5mm
-
Frequency Range:
-
26GHz/80GHZ
-
Protection level:
-
IP67
-
Electrical Interface:
-
M20*1.5
Products Description

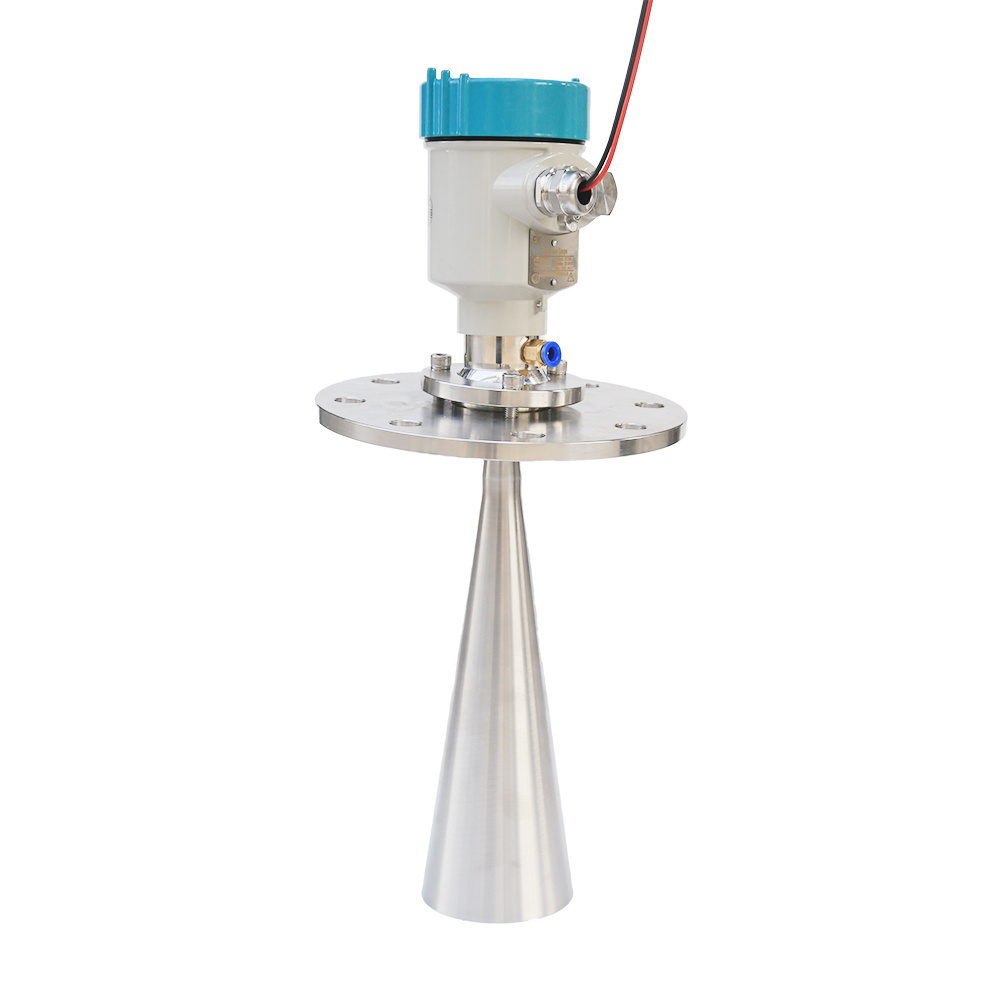

The RD800 series radar sensor is a high frequency microwave pulse type radar level gauge. The electromagnetic wave of about 11mm is emitted by the radar antenna system, and the focus of the horn antenna is reflected on the material surface. The reflected echo is received through the antenna system.
|
High frequency radar level meter APXRD
|
|
|
|
Medium
|
Liquid/powder/granule
|
|
|
Power supply
|
DC24V
|
|
|
Measuring range
|
70 meters
|
|
|
Process connection
|
Universal flange、G1.5 inch thread or bracket
|
|
|
Medium temperature
|
-40~230℃
|
|
|
Process pressure
|
-0.1~3Mpa
|
|
|
Precision
|
±5mm
|
|
|
Frequency Range
|
26GHz/80GHZ
|
|
|
Protection level
|
IP67
|
|
|
Explosion-proof grade
|
ExdibIICT4 Gb
|
|
|
Signal output
|
4-20Ma/HART(Two-wire/four-wire)RS485/Mod bus
|
|
|
Antenna material
|
304 stainless steel/PTFE/PFA
|
|
|
Electrical Interface
|
M20*1.5
|
|
|
Antenna form
|
96 bell mouth/Lens type / PTFE rod type / sanitary flat type
|
|
Product Display
Details Images
Aging test
