Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HENGTAI
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2000*120*100
-
Core Components:
-
electrical machinery/cable carrier/
-
After-sales Service Provided:
-
Overseas third-party support available, Free spare parts
-
place of orgin:
-
hebei ,China
-
Type:
-
Stainless Steel
-
Certification:
-
ISO9001, ISO9001
-
Name:
-
Magnetic chip removing machine
-
Product name:
-
Magnet Chip Conveyor
-
Usage:
-
Conveying Products
-
Color:
-
Customers' Request
-
Frame Material:
-
Stainless Steel Finish
-
Conveyor type:
-
permanent magnet
Quick Details
-
Power:
-
0.2-2.2KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
150/200/250/320/400/500/600 mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HENGTAI
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
2000*120*100
-
Core Components:
-
electrical machinery/cable carrier/
-
After-sales Service Provided:
-
Overseas third-party support available, Free spare parts
-
place of orgin:
-
hebei ,China
-
Type:
-
Stainless Steel
-
Certification:
-
ISO9001, ISO9001
-
Name:
-
Magnetic chip removing machine
-
Product name:
-
Magnet Chip Conveyor
-
Usage:
-
Conveying Products
-
Color:
-
Customers' Request
-
Frame Material:
-
Stainless Steel Finish
-
Conveyor type:
-
permanent magnet
Contact name: Sandy
Wechat number: +86 17332766796
Phone number: +86 13343079066

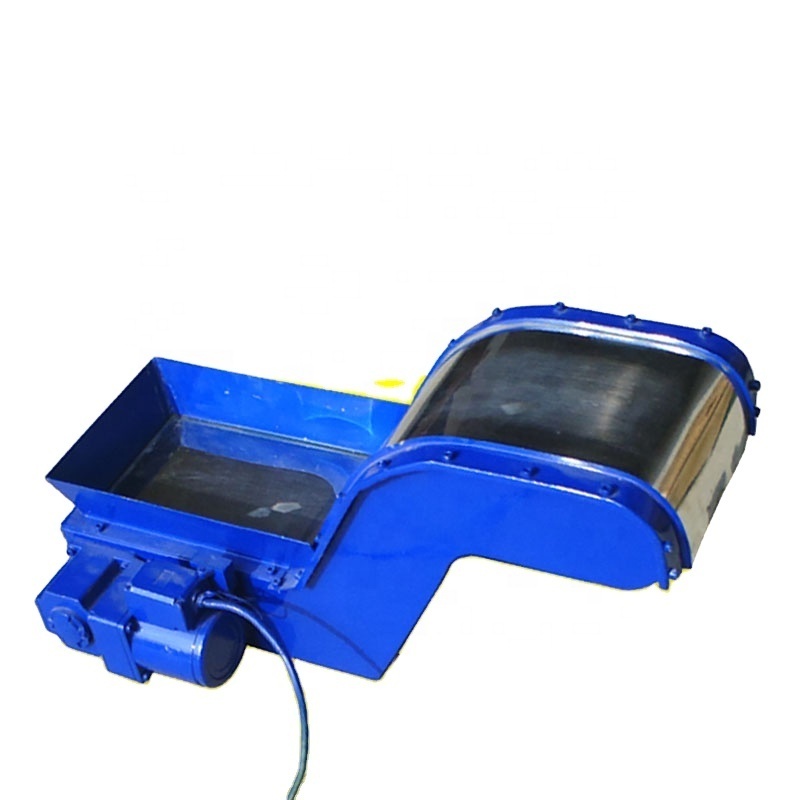

Permanent Magnet Type Chip Conveyor
Compact with high efficiency;it’s the most proper model on removing the chips of brass,aluminum or casting,and so on.
The best choice on using various kinds of chips remover
Compact with high efficiency;it’s the most proper model on removing the chips of brass,aluminum or casting,and so on.
Plural scraped width offers you the optimal application for wide range and the effectiveness. A firm scraped assembly with high strength,precise coordinary and stablesilent motion. With a limited torque force,it can effectively reduce the damage to the minimum level that caused by improper operation.
Specification Options
|
Specification |
Option |
||
|
ReduceSpeedMotor |
1/4Hp(0.2kw)1/165 220/380v |
1.CE Specification Device |
1.Simple CE Device of exit |
|
Pitch of Chain |
C2050 p=31.75mm p=38.1mm p=50.8 p=63.5 |
2.Full Cover CE device of exit |
|
|
Scraped Width |
175,150-600(there is one kind of specification every 50mm) |
2.Manual Control Device |
1.Standard emergent stop |
|
Scraped device |
One-three pieces for every six pitch |
2.CE spec standard emergent stop |
|
|
Scraped Speed |
1.2-1.4M/min(50/60HZ) |
3.Various far terminal controller boxes |
|
|
Safety Device |
HTL-350-2 |
4.Torque limit device |
|
|
Angleof Conveyor |
60° |
5.Prevent chips roll up device |
|
Warranty Policy
The basic warranty principle for our products in the market is the warrant policy of Hengtai Corporation, according to which, from the delivery to the clients:
• The normal warranty period is 12 months;
• The normal wear and normal maintenance of the products are excluded in warranty.
International warranty
The warranty includes the defects of the material and the manufacturing technology found in delivery or in the warranty period.
Hengtai Corporation is responsible for, free of charge, correcting the defects of the material and the manufacturing technology found in delivery or in the warranty period. The distributers designated by Hengtai Corporation will decide the corrective measures at it sole discretion.
Except the terms and conditions specified above, Hengtai Company makes no other statement or warranty and receives no indirectly warranty.
