to separate the wire steel from tire bead
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Tyre Recycling Machine/Tyre Shredder tire cutter machine
-
capacity:
-
500kg-3000kg/h
-
feeding material:
-
waste tires
-
final product:
-
rubber blocks, rubber granules, rubber powder
-
Function:
-
Recycle Waste Rubber
-
Application:
-
Rubber Processing Machinery
-
Advantage:
-
long service time
-
Keyword:
-
tire cutter machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HVST
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*3200*2800mm
-
Year:
-
2024
-
Power (kW):
-
44 kW
-
Weight (KG):
-
8000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Tyre Recycling Machine/Tyre Shredder tire cutter machine
-
capacity:
-
500kg-3000kg/h
-
feeding material:
-
waste tires
-
final product:
-
rubber blocks, rubber granules, rubber powder
-
Function:
-
Recycle Waste Rubber
-
Application:
-
Rubber Processing Machinery
-
Advantage:
-
long service time
-
Keyword:
-
tire cutter machine
1.Provide the floor space and size required for recycling machine.
2.Provide the complete recycling line layout and its 3D drawing
3.After machine reach the customer's working site, We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training
Main Recycling Process
Demi-Auto Waste Tire Recycling Machine Manufacturer Price required tire chopping machine

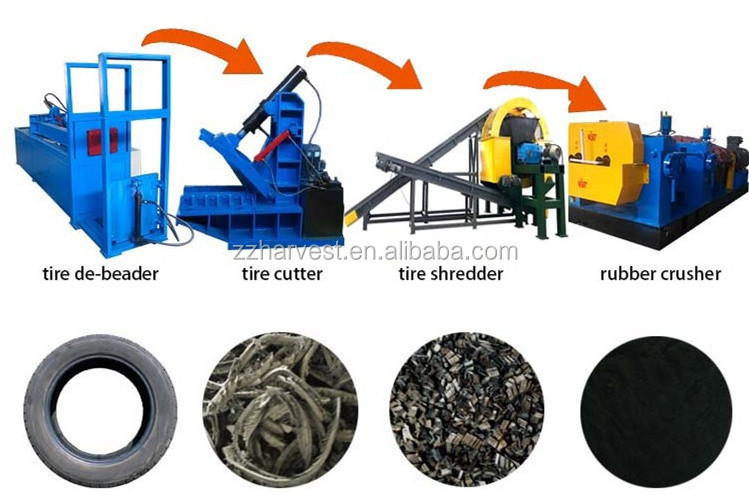

Flow chart of tire recycling
(Fully-automatic Production Line):
Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line
Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder
Tire circle
to cut open the joint of tire bead and side wall
Tire strip
to cut tire into strip
Tire slice cutter
To cut strip into block
Rim separator
Hydraulic souble hook tire de-beader:
draw out the wire steels from the tire bead.
|
Model No.
|
TD-1200
|
|
Feed size of tire(mm)
|
≤φ1200
|
|
Capacity(tires/h)
|
80
|
|
Power(KW)
|
18.5
|
|
Overall dimensions(m)
|
4.5*1.5*1.8
|
|
Equipment weight(T)
|
3.5
|
Whole tire cutter:
used to cut big tires into small pieces.
|
Model No.
|
TC-1200
|
|
Feed size of tire(mm)
|
≤φ1200
|
|
Capacity(tires/h)
|
30-40
|
|
Power(KW)
|
7.5
|
|
Working pressure(T)
|
12
|
|
Overall dimensions(m)
|
1.85*0.7*1.76
|
|
Equipment weight(T)
|
2.5
|
Whole tire shredder:
shred whole tires into 50*50mm/60*60mm rubber blocks.
|
Model
|
TS-900
|
TS-1200
|
|
Production capacity
|
1-2ton/h
|
3-5ton/h
|
|
Size of feeding
|
≤900mm whole tyre
|
≤1200mm whole tyre
|
|
Size of the slice
|
≤50*50mm
|
≤60*60mm
|
|
Quantity of the knives
|
16pcs
|
20pcs
|
|
Motor power
|
22KW*2
|
55KW*2
|
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Host equipment,rubber crusher: is used to be grind the chunks into small mesh powder through the vibrating screen as you need.
|
Model
|
capacity
|
Drum diameter
|
Drum length
|
Front roll
linear
|
Roll speed
ratio
|
Max roller
spacing
|
Motor power
|
|
XKP-350
|
3ton-6ton
|
300mm
|
500mm
|
26.2m/min
|
1:2.5
|
8mm
|
30KW
|
|
XKP-400
|
6ton-12ton
|
400mm
|
600mm
|
34.5m/min
|
1:2.5
|
8mm
|
45KW
|
|
XKP-450
|
8ton-16ton
|
450mm
|
760mm
|
38.0m/min
|
1:2.5
|
8mm
|
55KW
|
|
XKP-560
|
10ton-20ton
|
560mm
|
800mm
|
38.6m/min
|
1:2.5
|
8mm
|
75KW
|
|
XKP-560D
|
20ton-40ton
|
560mm
|
1000mm
|
42.5m/min
|
1:2.5
|
8mm
|
132KW
|
Machines feature of rubber crusher
1)Roller structure: Our two rollers are both grooved, which increase the friction and then improve the output.
2)Roller material: The roller is made by Welding wear resistant alloy materials, 5Cr6MnMo. We can offer you 3 years warranty of the roller.
3)Crusher roller speed ratio:Roller speed ratio is 1:2.5, high speed and low noise
4)Bearing:there are 8 pieces bearing in the main crusher.
5)9.99% nylon and radial removing rate. keeping the final rubber powder is pure.
Magnetic separator:
Separate the wire steel from the powder.
Nylon separator:
separate the nylon fiber from the nylon tire
|
Motor power
|
11kw
|
|
Weight
|
2.5T
|
|
Specifications
|
1.5 x 1.5 x 3.5m
|
