Quick Details
-
Storage Temperature:
-
-20℃~60℃
-
Nominal Voltage:
-
48Volts
-
Application1:
-
Home Appliances
-
Application2:
-
Consumer Electronics
-
Application3:
-
Electric Power Systems
-
Size:
-
Customised Accepted
-
Certificate:
-
CE/ROHS/MSDS/UN38.3
-
Warranty:
-
3 -5Years
-
Cycle Life:
-
6000 cycle @ 100% DOD, 80% capacity remain
Quick Details
-
Model Number:
-

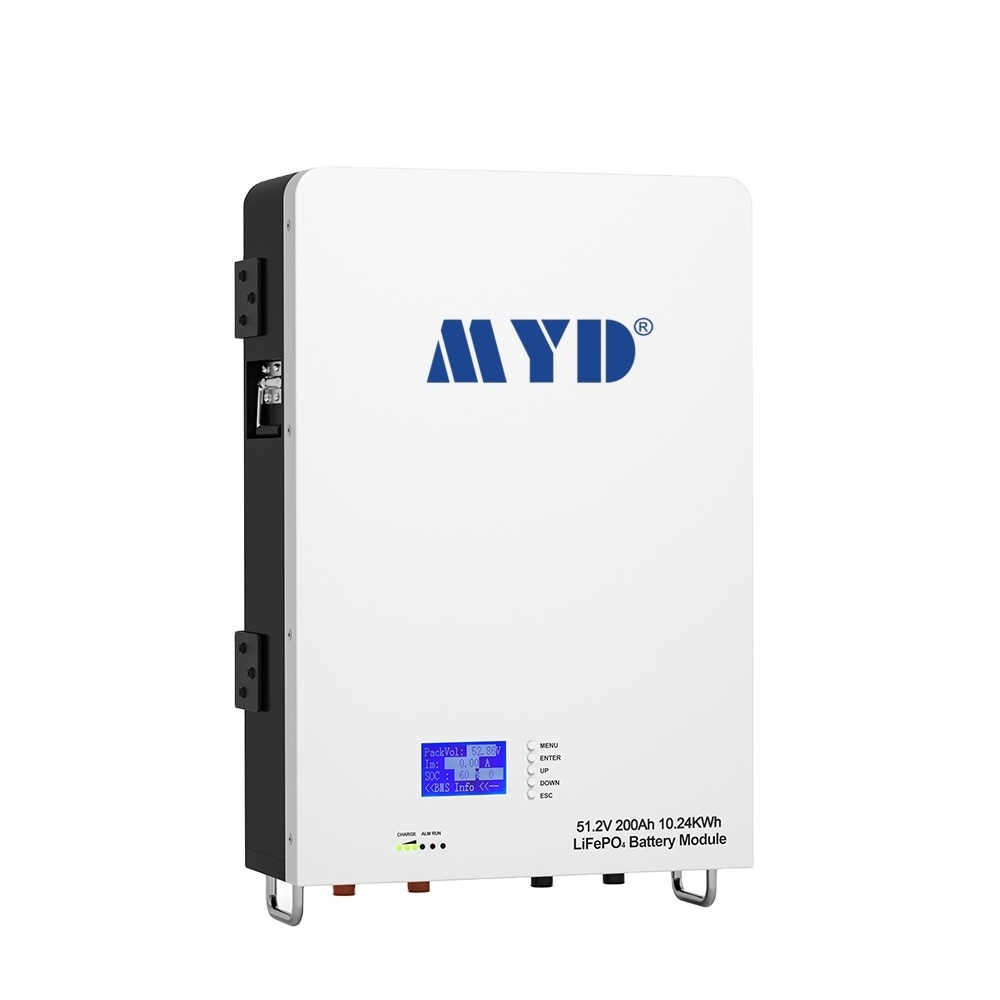

48V 200AH
-
Brand Name:
-
MYD
-
Place of Origin:
-
Guangdong, China
-
Storage Temperature:
-
-20℃~60℃
-
Nominal Voltage:
-
48Volts
-
Application1:
-
Home Appliances
-
Application2:
-
Consumer Electronics
-
Application3:
-
Electric Power Systems
-
Size:
-
Customised Accepted
-
Certificate:
-
CE/ROHS/MSDS/UN38.3
-
Warranty:
-
3 -5Years
-
Cycle Life:
-
6000 cycle @ 100% DOD, 80% capacity remain
Matching Inverter
Precautions
|
Basic parameters
|
MYD48100-3U
|
MYD48100-4U
|
MYD48200-4U
|
|
Nominal Voltage(V)
|
48
|
48
|
48
|
|
Nominal Capacity(Wh)
|
5120
|
5120
|
10240
|
|
Dimension (mm)
|
Customizable
|
Customizable
|
Customizable
|
|
Weight (Kg)
|
40
|
46.8
|
84
|
|
Discharge Voltage (V)
|
45 ~ 54
|
45 ~ 54
|
45 ~ 54
|
|
Charge Voltage (V)
|
52.5 ~ 54
|
52.5 ~ 54
|
52.5 ~ 54
|
|
Max Discharge Current (A)
|
100
|
100
|
120
|
|
Max Charge Current (A)
|
100
|
100
|
120
|
|
Communication
|
RS232,RS485,CAN
|
RS232,RS485,CAN
|
RS232,RS485,CAN
|
|
Charging Temperature
|
0°C~50°C
|
0°C~50°C
|
0°C~50°C
|
|
Discharging Temperature
|
-20°C~55°C
|
-10°C~50°C
|
-10°C~50°C
|
|
Shelf Temperature
|
-20°C~60°C
|
-20°C~60°C
|
-20°C~60°C
|
|
Certification
|
IEC / CE / UN38.3
|
IEC / CE / UN38.3
|
IEC / CE / UN38.3
|
|
Design life
|
20+ Years(25°C/77°F)
|
10+ Years(25°C/77°F)
|
10+ Years(25°C/77°F)
|
|
Cycle Life
|
>6000 ( 80% )
|
>4500 ( 90% )
|
>4500 ( 90% )
|
Product Performance
• Vertical industry integration ensures more than 6000 cycles with 80% .
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).
• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).
• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.
