DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices
DAKIOU HBJ-D800/1200  Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices

DAKIOU HBJ-D800/1200 Manufacture Automatic Efficient Paper Burger Box Forming Carton Box Erecting Making Machine Prices

FOB Reference Price: Get Latest Price
≥1 Sets
US $24000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
DAKIOU
Voltage:
380v
Power:
5kw
Dimension(L*W*H):
3600*1400*1700mm
Weight:
1800 kg
Speed:
50-320pcs/min
Certification:
ce
Local Service Location:
India
After-sales Service Provided:
Video technical support
After Warranty Service:
Online support
weight:
1800kgs
Total power:
5kw
Material:
200-600gsm,PE coated paper;white cardboard paper;corrugated paper

Quick Details

Production Capacity:
50-180pcs/min
Applicable Industries:
packaging&printing
Place of Origin:
Zhejiang, China
Brand Name:
DAKIOU
Voltage:
380v
Power:
5kw
Dimension(L*W*H):
3600*1400*1700mm
Weight:
1800 kg
Speed:
50-320pcs/min
Certification:
ce
Local Service Location:
India
After-sales Service Provided:
Video technical support
After Warranty Service:
Online support
weight:
1800kgs
Total power:
5kw
Material:
200-600gsm,PE coated paper;white cardboard paper;corrugated paper
Products Description

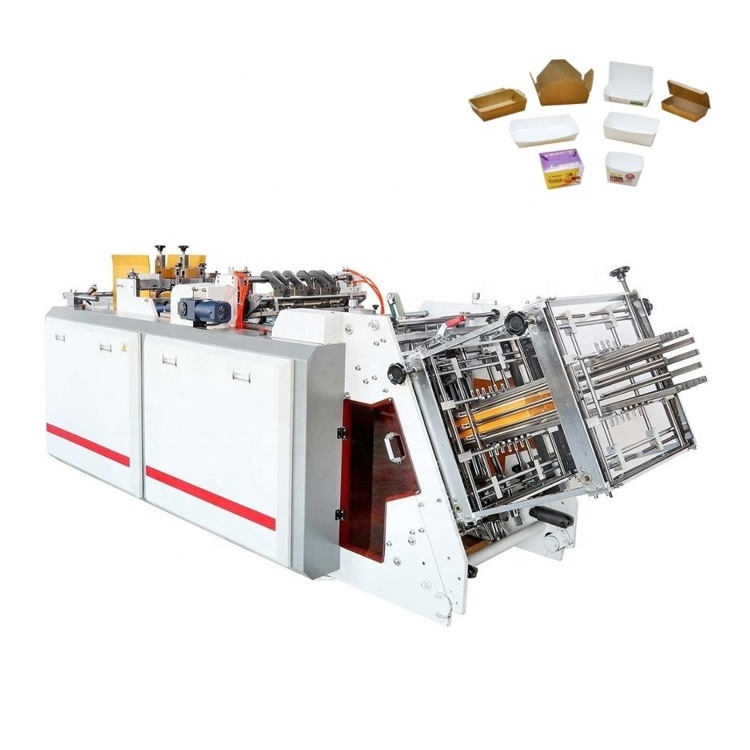

HBJ-D is an ideal choice to produce hamburger boxes, French fries box, food tray, lunch box, Chinese noodle box, hot dog box, etc.
It adopts micro-computer, PLC, alternating current frequency converter, the vacuum-sucking paper feeding, auto gluing, automatic
paper tape counting, and chain drive. All of these main parts and electric control system adopts imported brand to guarantee
steady working, precise positioning, smooth running, safety and reliability operation. It can make more than 10 types boxes.
Technical Specification:
Type
HBJ-D800
HBJ-D1200
Production capacity
50-180 pcs/min
80-320pcs/min
Suitable Material
200-600g/m2 card paper,PE coated paper, kraft paper, corrugated paper
Length
L100-450mm,degree:5°-40°
L100-450mm,degree:5°-40°
Width
100-600mm
W100-400mm
Hight
15-200mm
H15-200mm
Total Power
5KW
6.25KW
Total Weight
1.8T
2.8T
Overall Dimension
3600 x1400 x 1700 mm
3600 x 1850 x 1700 mm
power source
380V /220V 50HZ
380V 50HZ
Detailed Images

1.The chain drive is adopted in the machine to ensure the smooth running, and endurable structure. Each part is separated to reduce noise and workload, as well as to increase the stability.

2.Time of paper feeding is adjusted by cam. Simply operating, reducing failure rate.

3. Every part of forming and collecting system can be adjusted according to the size of mold. The whole collection system can be opened to change mold and install the forming parts conveniently.
