Quick Details
-
Brand Name:
-
guangyue/OEM
-
Voltage:
-
as per customer's request
-
Dimension(L*W*H):
-
different sizes with different dimension
-
Weight (KG):
-
1000 KG
-
Name:
-
lab roll mill / lab rubber mill /laboratory equipment
-
pedestal:
-
weld or cast
-
roll material:
-
chilled cast iron
-
nip adjustment:
-
electric or manual
-
lubrication system:
-
grease or thin oil
-
gear box:
-
bull gear box,planet gear box,hardened gear box
-
bush:
-
nylon bush,cooper bush,ball bearing bush
-
COLOR:
-
Customers' Demand
-
Advantage:
-
High Efficieny
-
Delivery time:
-
20 DAYS
Quick Details
-
Diameter of Roll(mm):
-
160 mm
-
Length of Roll(mm):
-
320 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
guangyue/OEM
-
Voltage:
-
as per customer's request
-
Dimension(L*W*H):
-
different sizes with different dimension
-
Weight (KG):
-
1000 KG
-
Name:
-
lab roll mill / lab rubber mill /laboratory equipment
-
pedestal:
-
weld or cast
-
roll material:
-
chilled cast iron
-
nip adjustment:
-
electric or manual
-
lubrication system:
-
grease or thin oil
-
gear box:
-
bull gear box,planet gear box,hardened gear box
-
bush:
-
nylon bush,cooper bush,ball bearing bush
-
COLOR:
-
Customers' Demand
-
Advantage:
-
High Efficieny
-
Delivery time:
-
20 DAYS
chilled cast iron open mixing mill /laboratory experiment/roller mill
Version : xk-160 xk-230 xk-250 xk-300 xk-360 xk-400 xk-450 xk-560
Rubber mill, Rubber mixing mill,Two roll mill,Open rubber mixing mill,two roll rubber open mixing mill,lab rubber mixing mill
Certificate and identification : W e have ISO9001:2008 , SG.S, CE quality standards and offer all kinds of certification according to customer's request:like CO,CIQ,SASO and so on.
Application
:
The mill is used for rubber plasticating, mixing, warming and sheeting.
General design
:
1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.
2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.
Equipment advantage:
Rolls : alloy chilled cast iron rolls with surface hardness 510 ~ 550 BHN.
The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.
Bearing: the Swedish imports, load bearing force big, can adjust the gap, high precision, good rigidity
Roll Clearance Adjusting Unit : Through worm and worm gear drive clutch rod for parallel sheeting hand wheels to close theNIP from One point only.
Roll Cooling : Universal rotary joints with inner spray pipes with hoses and headers. Piping is complete up to supply pipe terminal.
Journal Bearing Housing : Heavy duty steel casting housing fitted with anti friction roller bearings.
Lubrication : Manual / motorized grease lubrication pump for anti friction roller bearings fitted in dust sealed housing.
Stand Frame & Apron (Cap) : Heavy duty steel casting.
Gearbox : Helical reduction gearbox greaves/ shanti make direct coupled with rear roll and motor.
Base Frame : Common base frame heavy duty, steel beams and MS plate fabricated accurately machined on which whole machine with gearbox and motor are fitted. No deep foundation required.
Electric Control Panel : Star delta electric operating panel with auto reversing, voltmeter, ampere, overload protection relay, 3 phase indicator and emergency stop switch.
Our factory
We , Qingdao Guangyue Rubber Machinery Mnanufacturing Co.,Ltd make high quality rubber machine, from materials to producing, we use the good quality material , complete management system , also excellent aftersale service , we hope to be one reliable factory for you!
- professional manufacturer that has professional producing team and technical support
- Exclusive and unique solution can be provided to our customer by our well-trained and prof essional engineers and staff.
- best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.
- reasonable price and flexible delievery time
- more than 30 years of experience of exporting ability
Techinque of parameter:
|
rubber mixing mill |
Xk-160 |
Xk-250 |
Xk-300 |
Xk-400 |
Xk-450 |
Xk-560 |
Xk-660 |
|
Working diameter of rolls(mm) |
160 |
250 |
300 |
400 |
450 |
560 |
660 |
|
Working length of rolls(mm) |
320 |
620 |
750 |
1000 |
1200 |
1530 |
2130 |
|
Front roll surface speed(m/min) |
8.99 |
15.3 |
15.1 |
18.65 |
24.32 |
27.72 |
28.6 |
|
Friction ratio |
1:1.35 |
1:1.1 |
1:1.27 |
1:1.27 |
1:1.27 |
1:1.2 |
1:1.24 |
|
Max.nip(mm) |
4 |
8 |
8 |
10 |
15 |
15 |
15 |
|
Capacity per.batch(kg) |
1-2 |
10-15 |
15-20 |
18-35 |
25-50 |
35-50 |
165 |
|
Motor power (kw) |
5.5 |
18.5 |
25 |
45 |
70 |
110 |
245 |
|
Overall dimension(mm |
1160*920 *1370 |
3120*1322 *1500 |
3580*1550 *1695 |
4350*1850 *1780 |
5670*2390 *1670 |
5845*2284 *1978 |
7465*3662 *2080 |
|
Weight(kg) |
1000 |
4000 |
5200 |
8000 |
12000 |
23000 |
49000 |

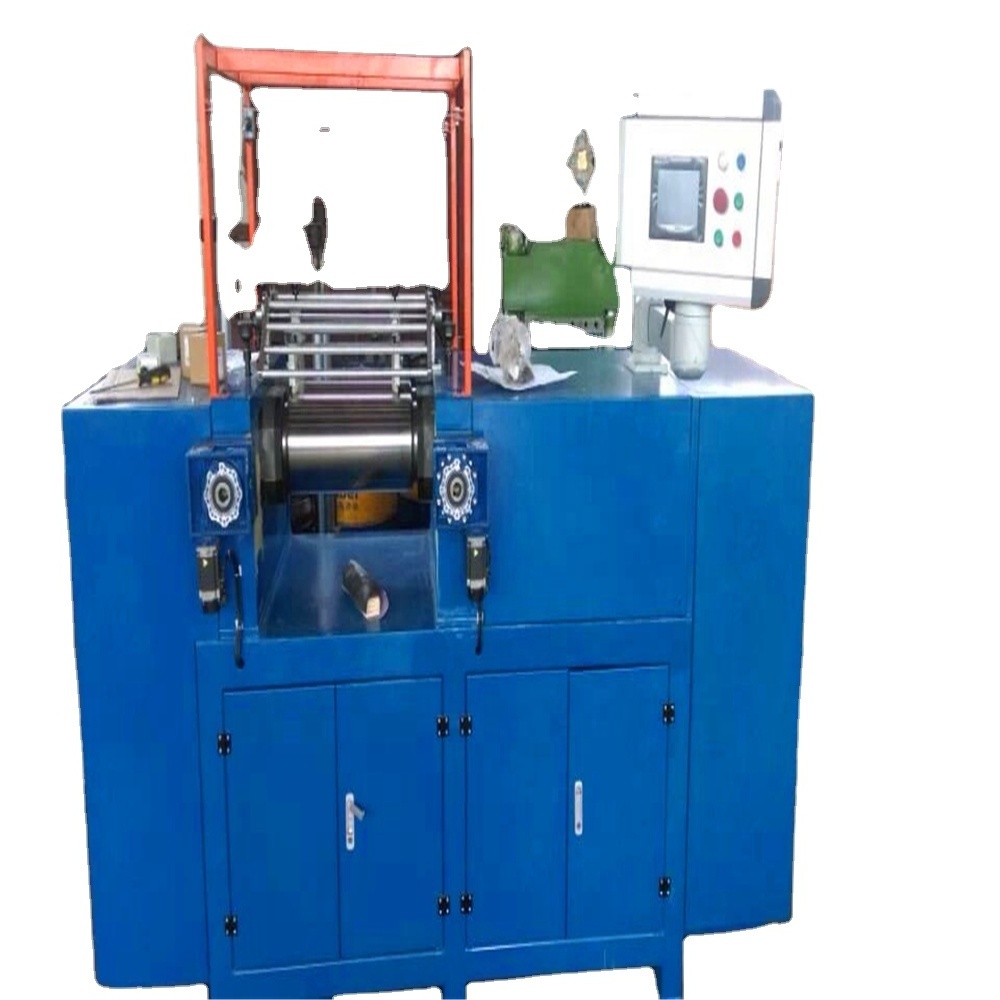

XK-160 lab rubber mixing mill Ordered by Vietnam
XK-400 Mixing Mill for masterbatch Ordered by England clients
(Ball bearing bush , hard gear reducer ,recycling water cooling )
XK-450 Rubber Mixing Mill Exported to Turkey
XK-560 Rubber Mixing Mill Exported to Ethiopia
certification:
customers who come to visite our factory
If you are interested in our products mentioned above, kindly let us know by return e-mail
.
We will do our best to service for you
.
