Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QuanSheng
-
Model Number:
-
UV-K5
-
Dimensions:
-
115*60*37.5mm
-
Frequency Range:
-
136-174MHz 400-520MHz
-
Name:
-

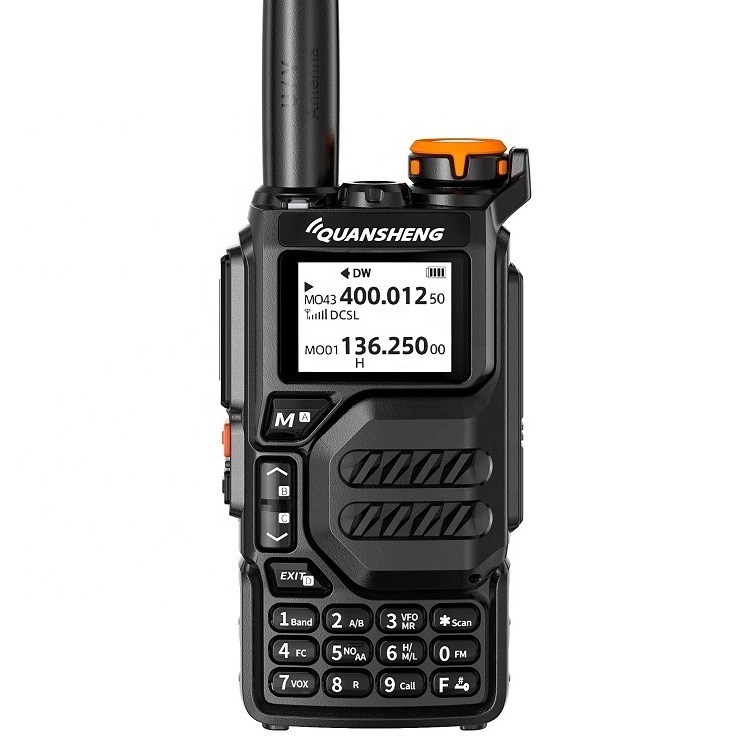

Quansheng UV-K5 dual band walkie talkie ham radio
-
OEM ODM:
-
yes
-
Power:
-
110v,120v, 220v
-
Certificate:
-
ISO, CE, FCC, Rohs
-
battery:
-
1600mAh li-ion
-
Rated voltage:
-
DC7.2V
-
Warranty:
-
12 months
-
Private Mold:
-
Yes
Quick Details
-
Talk Range:
-
5-10km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
200
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QuanSheng
-
Model Number:
-
UV-K5
-
Dimensions:
-
115*60*37.5mm
-
Frequency Range:
-
136-174MHz 400-520MHz
-
Name:
-
Quansheng UV-K5 dual band walkie talkie ham radio
-
OEM ODM:
-
yes
-
Power:
-
110v,120v, 220v
-
Certificate:
-
ISO, CE, FCC, Rohs
-
battery:
-
1600mAh li-ion
-
Rated voltage:
-
DC7.2V
-
Warranty:
-
12 months
-
Private Mold:
-
Yes
Ham Dual Band two way radio QuanSheng UV-K5 for ham use 5w d ual band long range walkie talkie
-VHF UHF Dual BAND STANDBY, 50-600MHz full band Receiving
-Frequency meter Function
-Cross-band Communication
-FM radio/Air Band Receiving
-VOX (Voice operated Transmission)
-10 Channels America NOAA weather forecast
-Built-in high light Torch -200 Memory Channels
-Wireless Frequency copy from other radios
-Wireless Radio Replication
-DTMF AND 1750 Tone
-Manual Emergency Alert
-10-Group Scrambler -Frequency/DCS/CTCSS Scan
-1600 mAh Rechargeable Li-ion Battery Pack
-TPYE C and Desktop Charging
Cheap
Frequency range: FM 50-76MHz Rx
76-108MHz Rx
AM 108-136MHz Rx
UHF 400-470MHz Rx & Tx
470-600MHz Rx
VHF 136-174MHz Rx & Tx
174-350MHz Rx
350-390MHz TX & Rx
Number of channels: 200
Number of FM radios: 16
Frequency stability:±1ppm
Size :115mmX60mmX37.5mm
Weight: 234g
Working temperature: -20℃+60℃
Antenna impedance: 50Ω
Modulation mode: FM: 11KOF3E(12.5KHz), 16K0F3E(25KHz)
Number of NOAA channels: 10
Battery capacity: 1600mAh
Audio Power:≥0.5W
Audio Distortion: ≤10%
Transmitting Power:≤5
Emission Current :≤1.5A
Maximum Frequency Deviation :≤5KHz(25KHz),≤2.5KHz(12.5KHz)
Modulation Distortion: ≤5%
Stray Power:≤7.5uW
Adjacent Channel Power: 70dB(25KHz), 60dB(12.5KHz)
Residual Modulation: 40dB
