Quick Details
-
Brand Name:
-
King Magnetics
-
Model Number:
-
KMN-252010Z
-
Material:
-
Nanocrystalline
-
Product Name:
-
Nanocrystalline Cores
-
Part Number:
-
KMN-252010Z
-
Rated Current:
-
10A
-
Inductance:
-
16 mH
-
Size:
-
25*20*10mm
-
Wire:
-
100% Copper Wire
-
Certification:
-
RoHS
-
Description:
-

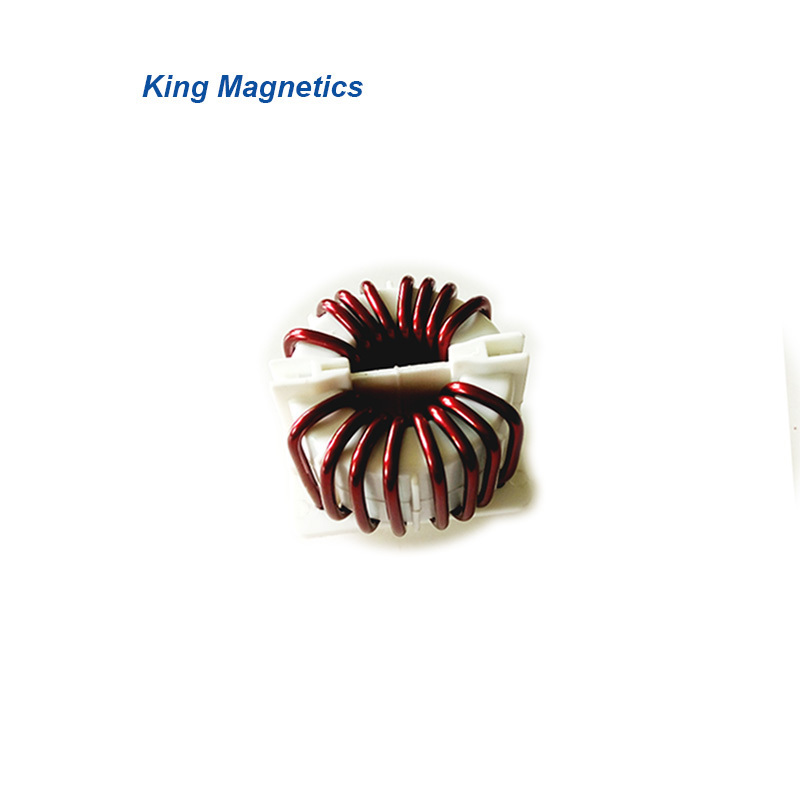

10A-16mH toroid common mode choke coil
-
Max temperature:
-
120 degree c
Quick Details
-
Tolerance:
-
30%
-
Grade:
-
Nanocrystalline Material
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
King Magnetics
-
Model Number:
-
KMN-252010Z
-
Material:
-
Nanocrystalline
-
Product Name:
-
Nanocrystalline Cores
-
Part Number:
-
KMN-252010Z
-
Rated Current:
-
10A
-
Inductance:
-
16 mH
-
Size:
-
25*20*10mm
-
Wire:
-
100% Copper Wire
-
Certification:
-
RoHS
-
Description:
-
10A-16mH toroid common mode choke coil
-
Max temperature:
-
120 degree c
KMN-252010Z Nanocrystalline Cores For Magnetic Amplifiers For Switched Mode Power Supplies
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: 80000
Permeability @ 100KHz: 20000
Curie temperature(℃): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
Applications
>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies
>> VFD Inverter Drive Motor Systems
Standard Cores
| Part No. | Core dimensions | Case dimensions |
Effictive
cross section |
Mean
path length |
Weight (g) | Saturation Flux(μWb) | ||||
| od | id | h | OD | ID | H | Ae | Lm | |||
| mm | mm | mm | mm | mm | mm | cm2 | cm | mFe | 2Φm | |
| KMN120803Z | 12 | 8.4 | 3.2 | 14.7 | 5.9 | 5.4 | 0.045 | 3.20 | 1.04 | 10.6 |
| KMN120804Z | 11.8 | 8.7 | 4.2 | 13.9 | 6.8 | 6.0 | 0.051 | 3.22 | 1.18 | 12.0 |
| KMN120805Z | 12 | 8 | 4.5 | 14.7 | 6.2 | 6.8 | 0.070 | 3.14 | 1.60 | 16.6 |
| KMN151005Z | 15 | 10 | 4.5 | 17 | 8 | 7.1 | 0.088 | 3.93 | 2.50 | 20.7 |
| KMN191505Z | 19 | 15 | 5 | 21 | 13 | 6.6 | 0.078 | 5.34 | 3.02 | 18.4 |
| KMN252010Z | 25 | 20 | 10 | 28 | 17.2 | 13.2 | 0.195 | 7.07 | 9.99 | 46.0 |
These cores are our standard products, we can also design and produce high performance cores according to customer’s requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.
* Epoxy coated.
** AL tolerance -30%/+50%
KMN322115Y - Three phase common mode choke core.
