Quick Details
-
Size:
-
12500*3000*1550 mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
low bed semi trailer
-
Suspension:
-
Mechanical Suspension
-
AXle No.&Brand:
-
2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua
-
Tire:
-
12R22.5
-
Landing Gear:
-
JOST/FUWA/Yahua brand 28T
-
Color:
-
Custom's Requirement
-
King pin:
-
JOST brand 2.0 or 3.5 inch
-
Usage:
-
heavy duty transportation
-
Keywords:
-
3 axle 40ft or 20ft
-
Certification:
-
ISO CCC CE
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30-150T
-
Brand Name:
-
LUYI
-
Size:
-
12500*3000*1550 mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
low bed semi trailer
-
Suspension:
-
Mechanical Suspension
-
AXle No.&Brand:
-
2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua
-
Tire:
-
12R22.5
-
Landing Gear:
-
JOST/FUWA/Yahua brand 28T
-
Color:
-
Custom's Requirement
-
King pin:
-
JOST brand 2.0 or 3.5 inch
-
Usage:
-
heavy duty transportation
-
Keywords:
-
3 axle 40ft or 20ft
-
Certification:
-
ISO CCC CE
Product Description

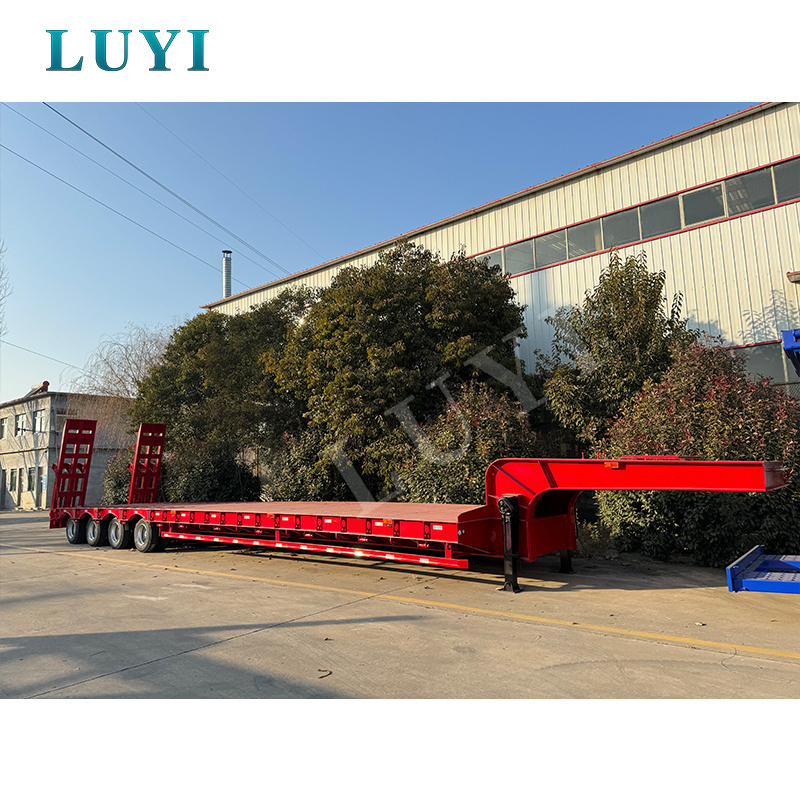

Customized Bulldozer Transport Lowboy Trailer 60 80 Ton excavator load Lowbed low loader Trailer
Specification
|
Dimensions
|
16000*3000*(700mm-1200mm) (According to customer demand)
|
|
Axle specs.
|
FUWA ,YAHUA or BPW Brand
|
|
Suspension
|
Mechanical or air supension (American or German)
|
|
Rim
|
6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
|
|
King Pin
|
JOST 2" or 3.5" traction pin
|
|
Support legs
|
JOST, FUWA or YAHUA brand 28T
|
|
Wheelbase
|
7180/6680/6260+1310+1310mm,Or other
|
|
Steel Spring
|
8/8/8, 10/10/10, 12/12/12 pieces per axle
|
|
Ladder
|
Manual or hydraulic automatic
|
|
Electrical system
|
24V, 7 pin socket, One set 7-core standard Cable
|
|
Tire
|
8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20
|
|
Spare Tire Carriers
|
2 pieces
|
|
The material of Main beam
|
Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm;
Material is Q345 Carbon Steel. |
|
Side beam
|
16mm-25mm channel steel (Material is Q235 carbon steel)
|
|
Platform plate
|
5/6/7 mm Diamond Plate
|
|
Brake
|
Kemi Brand of China
|
|
Brake Chamber
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
|
|
ABS system
|
optional
|
|
Light
|
Tail lamp with turn signal, brake light & reflector, side lamp etc
|
|
Tool box
|
1 sets(waterproof type)
|
|
Spare tire carrier
|
1 sets(Patent type)
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
|
|
Packing
|
Polish with wax before shipping |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
