Quick Details
-
Theoretical Shot Volume(cm³):
-
104 cm³
-
Injection Rate (g/s):
-
80 g/s
-
Injection Weight (g):
-
95 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
320*300
-
Weight (KG):
-
1500 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
235 mm
-
Model Number:
-
XY50-B
-
Power (kW):
-
380 kW
-
Max pump pressure:
-
14Mpa
-
Pump motor power:
-
5.5kw
-
Heating power:
-
4.1kw
-
Oiltank cuage:
-
100L
-
Clamping force:
-
500
-
Screw L\D ratio:
-
18.7L\D
-
Shot volume:
-
80cm
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Mold Height(mm):
-
120 - 350 mm
-
Ejector Stroke(mm):
-
80 mm
-
Ejector Force(kN):
-
28 kN
-
Theoretical Shot Volume(cm³):
-
104 cm³
-
Injection Rate (g/s):
-
80 g/s
-
Injection Weight (g):
-
95 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
32 mm
-
Screw L/D Ratio:
-
20
-
Distance between Tie Bars:
-
320*300
-
Weight (KG):
-
1500 kg
-
Place of Origin:
-
China
-
Open Stroke(mm):
-
235 mm
-
Model Number:
-
XY50-B
-
Power (kW):
-
380 kW
-
Max pump pressure:
-
14Mpa
-
Pump motor power:
-
5.5kw
-
Heating power:
-
4.1kw
-
Oiltank cuage:
-
100L
-
Clamping force:
-
500
-
Screw L\D ratio:
-
18.7L\D
-
Shot volume:
-
80cm
-
Marketing Type:
-
Ordinary Product
Details Images

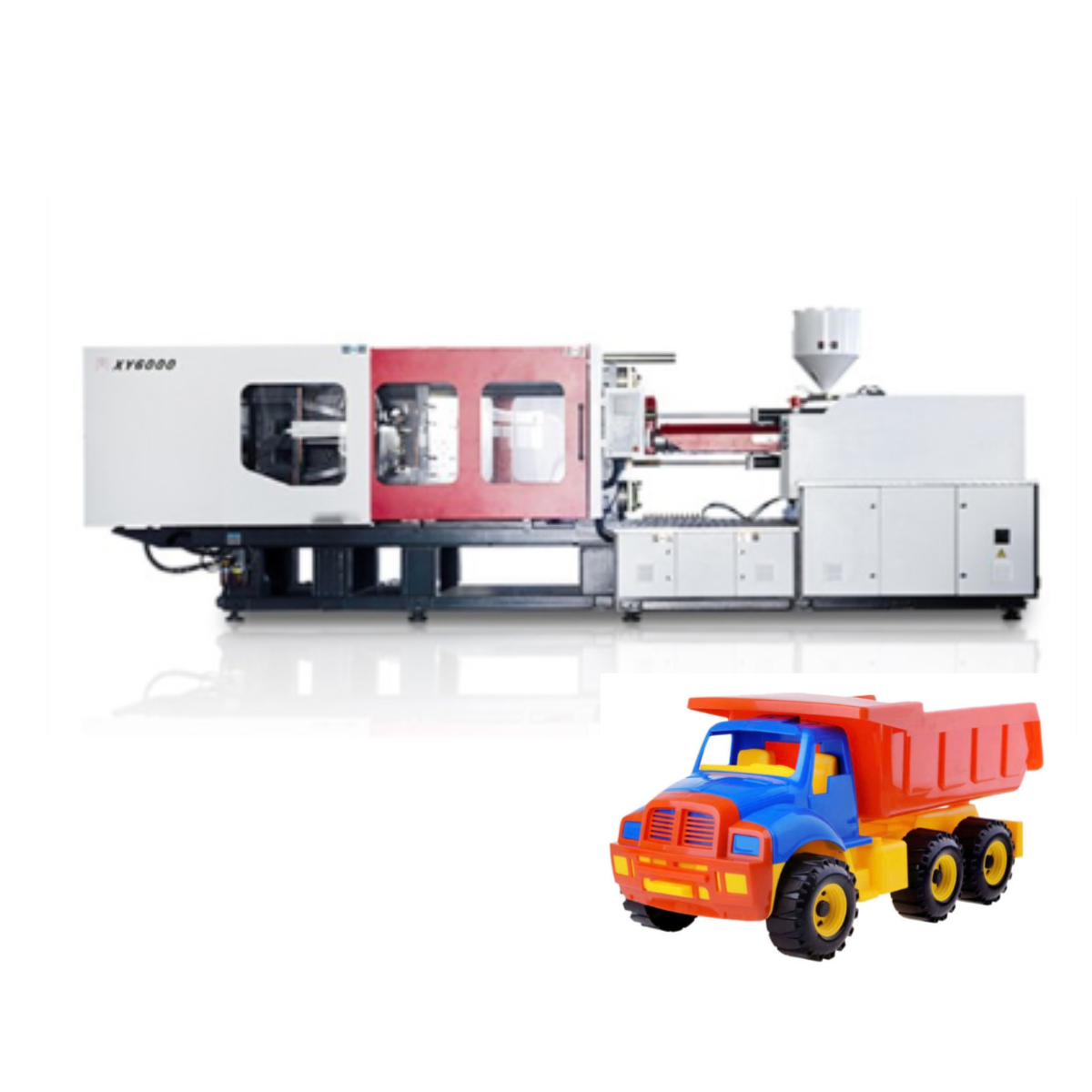

70Ton injection molding machine
There is no extra energy consumption due to output volume changes according to load In the phase of holding pressure,servo motor lowers rotate and consumes a little of energies,motor doesn't work and consumes no energy. Servo energy-saving injection moulding machines will save 20%-80% energy and bring you prominent economic.
|
规格
|
SPECIFICATION
|
CN
|
XY70
|
|
||||
|
|
|
|
A
|
B
|
||||
|
注射装置
|
INJECTION UNIT
|
|
INJECTION UNIT
|
|
||||
|
螺杆直径
|
SCREW DIAMETER
|
mm
|
32
|
34
|
||||
|
螺杆长径比
|
SCREW L/D RATIO
|
L/D
|
20
|
18.8
|
||||
|
理论注射容积
|
SHOT VOLUME(THEORETICAL)
|
cm3
|
104
|
118
|
||||
|
注射重量
|
INJECTION WEIGHT
|
g
|
95
|
107
|
||||
|
注射速率
|
INJETION RATE
|
g/s
|
80
|
90
|
||||
|
注射压力
|
INJECTION PRESSURE
|
Mpa
|
203
|
180
|
||||
|
螺杆转速
|
SCREW SPEED
|
rpm
|
0-200
|
|
||||
|
合模装置
|
CLAMPING UNIT
|
|
CLAMPING UNIT
|
|
||||
|
合模力
|
CLAMPING FORCE
|
KN
|
700
|
|
||||
|
移模行程
|
OPEN STROKE
|
mm
|
280
|
|
||||
|
拉杆内间距
|
SPACE BETWEEN TIE-BARS
|
mm
|
320X300
|
|
||||
|
最大模厚
|
MAX.MOULD HEIGHT
|
mm
|
350
|
|
||||
|
最小模厚
|
MIN.MOULD HEIGHT
|
mm
|
120
|
|
||||
|
顶出行程
|
EJECTOR STROKE
|
mm
|
80
|
|
||||
|
顶出力
|
EJECTOR FORCE
|
KN
|
28
|
|
||||
|
其他
|
OTHERS
|
|
OTHERS
|
|
||||
|
最大油泵压力
|
MAX.PUMP PRESSURE
|
Mpa
|
14
|
|
||||
|
油泵马达功率
|
PUMP MOTOR POWER
|
KW
|
7.5
|
|
||||
|
电热功率
|
HEATING POWER
|
KW
|
6.1
|
|
||||
|
外形尺寸
(长x宽x高) |
MACHINE DIMENSIONS(LxWxH)
|
m
|
3.3X1.0X1.5
|
|
||||
|
邮箱容积
|
OILTANK CUBAGE
|
L
|
120
|
|
||||
|
机器重量(约)
|
MACHINEWEIGHT(APPROXIMATE)
|
t
|
2.4
|
|
||||
|
|
|
|
|
|
||||
Product packaging
We can customize different packing methods according to customers' requirements.
