Quick Details
-
Input Ports:
-
1*VGA+1*Audio+1*Mic 1*USB2.0
-
Output Ports:
-
1*VGA+1*Audio+1*Mic 4*USB
-
Resolution:
-
4K@30Hz, 1920 x 1080@60Hz
-
Size:
-
185*105*33mm
-
Weight:
-
2.5kg/pair
-
Operating Temperature:
-
0~50°C
-
Fiber Type:
-
Single mode single fiber
-
Power supply:
-
DC12V
-
Warranty:
-
1 Year
Quick Details
-
Model Number:
-
PW-VGA-USB2.0
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
VGA KVM Fiber Optic Extender
-
Input Ports:
-
1*VGA+1*Audio+1*Mic 1*USB2.0
-
Output Ports:
-
1*VGA+1*Audio+1*Mic 4*USB
-
Resolution:
-
4K@30Hz, 1920 x 1080@60Hz
-
Size:
-
185*105*33mm
-
Weight:
-
2.5kg/pair
-
Operating Temperature:
-
0~50°C
-
Fiber Type:
-
Single mode single fiber
-
Power supply:
-
DC12V
-
Warranty:
-
1 Year
Specification
VGA Video Optical Extender is a device that extends VGA signals and USB 2.0 signals and audio signals through optical fibers.It can remotely display and control front-end devices through fiber optic extensions
2. Using gigabit digital coding technology, connect the local sending end of the device to the VGA video signal and USB controlsignal of the computer host, etc., and connect it through the optical fiber jumper (single-mode can transmit 20 kilometers, multi-mode transmission 300-500 meters) to the receiving end of the extender Users can control remotely at the receiving end.
1. Optical fiber ultra-clear video KVM extender integrating VGA video signal, USB keyboard and mouse control signal, USB2.0 HUB function (USB device, U KEY, printer, mobile hard disk, touch screen and other USB devices), RS232 interface signal, audio two-way signal, LC optical fiber interface, iron shell body；
2. Using gigabit digital coding technology, connect the local sending end of the device to the VGA video signal and USB controlsignal of the computer host, etc., and connect it through the optical fiber jumper (single-mode can transmit 20 kilometers, multi-mode transmission 300-500 meters) to the receiving end of the extender Users can control remotely at the receiving end.
3. Supports 3840*2160@30Hz image resolution for superior image display. At the same time, it provides high-quality video quality with extremely low latency transmission capability. It can be widely used in education, banking and securities, medical care,confidential office and other fields。

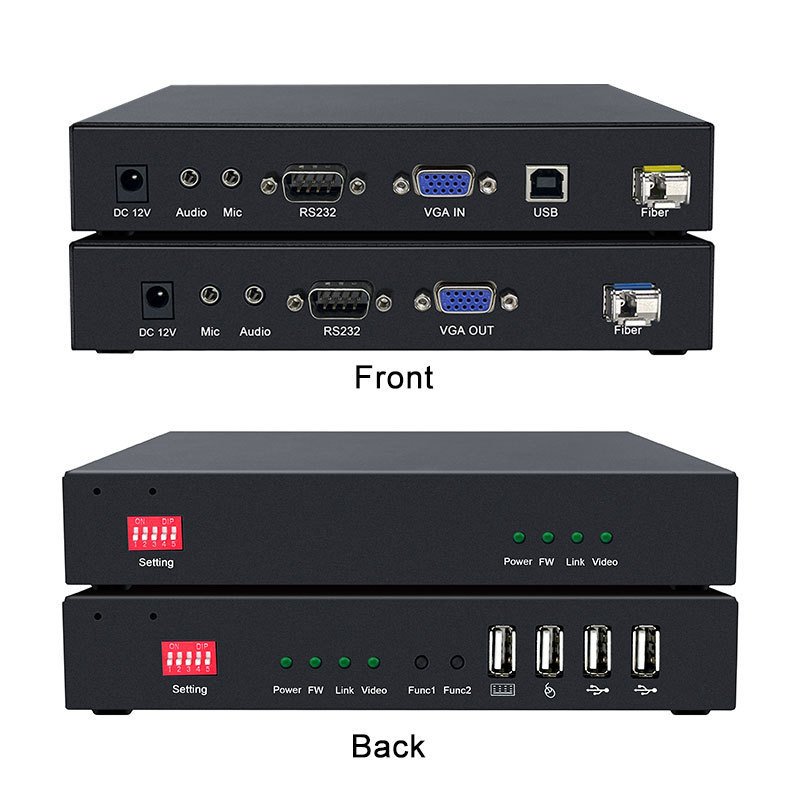

Connection operations
1. Confirm whether the code of the DIP switch of the transmitter and receiver is consistent
2. The transmitter is connected to the managed host using standard video, USB, and audio cables；
3. The receiver is connected to a monitor, audio device, USB keyboard and mouse, and USB device；
4. The transmitter and receiver are connected by a fiber optic cable；
5. Power on the transmitter and receiver；
2. The transmitter is connected to the managed host using standard video, USB, and audio cables；
3. The receiver is connected to a monitor, audio device, USB keyboard and mouse, and USB device；
4. The transmitter and receiver are connected by a fiber optic cable；
5. Power on the transmitter and receiver；
6. The transmitter and receiver are connected via LEDs；
7. Hot-swappable, controlled devices can be added or removed at any time without KVM powering down；
8.Cross-platform support, supporting major operating systems such as Windows, Linux and Sun
7. Hot-swappable, controlled devices can be added or removed at any time without KVM powering down；
8.Cross-platform support, supporting major operating systems such as Windows, Linux and Sun
