Quick Details
-
Brand Name:
-
Sentek, Sentek
-
Model Number:
-
BR-1012, BR-1012
-
Max. Current:
-
0.5A
-
Type:
-
Automatic Transfer Switch
-
Product name:
-
Auto Transfer Switch
-
Material:
-
ABS
-
Usage:
-
Door
-
Function:
-
Door Window Safety
-
Wire:
-
Standard 18" #22AWG leads
-
Color:
-
White Brown Grey
-
Certification:
-
UL,CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
100V
-
Place of Origin:
-
Zhejiang, China, Zhe jiang .China
-
Brand Name:
-
Sentek, Sentek
-
Model Number:
-
BR-1012, BR-1012
-
Max. Current:
-
0.5A
-
Type:
-
Automatic Transfer Switch
-
Product name:
-
Auto Transfer Switch
-
Material:
-
ABS
-
Usage:
-
Door
-
Function:
-
Door Window Safety
-
Wire:
-
Standard 18" #22AWG leads
-
Color:
-
White Brown Grey
-
Certification:
-
UL,CE
Specification:
| product Name: | Security Magnetic Alarm Contact Door Reed Switch | MaximumContact Rating(W) | 10 |
| Model: | BR-1012 | Maximum Switching Current(A) | 0.5 |
| Cable: | Standard 18" #22AWG leads | Colsed Gap[Inch(mm)] | 3/4 (19) |
| Reed Form: | N/O | Maximum InitialContact Resistance(Ohm) | 0.150 |
| Color: | White, Brown, Grey | Maximum Switching Voltage(VDC/VAC) | 100 |
| Depature Gap[Inch(mm)] | 0.8 (20) | Material: | ABS |

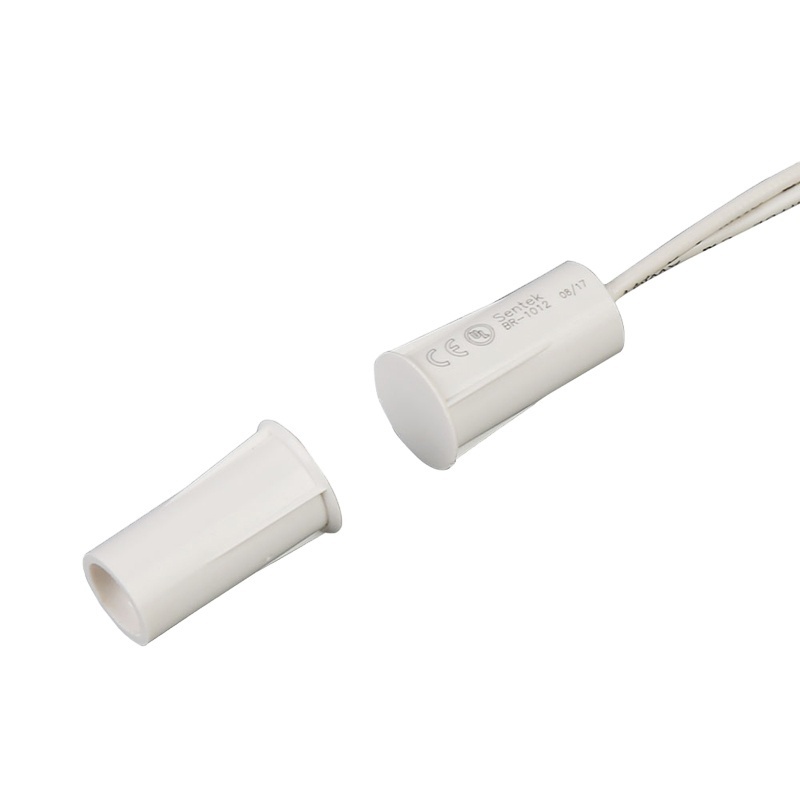

Security Magnetic Alarm Contact Door Reed Switch
* 3/8" diameter miniature flush mounted
* Press to fit
* Standard 18" #22AWG Leads
* Special leads upon request
* Switch or magnet are available separately
* Resistor, Diode and Supervisory Loop available on request
* Colors: White, Brown, Grey
|
Part Number |
Loop Type |
Reed Form |
Closed Gap [Inch(mm)] |
DepatureGapV [Inch(mm)] |
MaximumInitia lContact Resistance (Ohm) |
Maximum Contact Rating (W) |
Maximum Switching Voltage
(VDC/VAC |
Maximum Switching Current (A) |
| BR-1012 | Closed | N/O | 3/4 (19) | 0.8 (20) | 0.150 | 10 | 100 | 0.5 |
| BR-1012WG | Closed | N/O | 1 1/4 (32) | 1.45 (37) | 0.150 | 10 | 100 | 0.5 |
| BR-1012WGL | Closed | N/O | 1 1/8 (28) | 1.1 (28) | 0.150 | 10 | 100 | 0.5 |
| BR-1012MN2550 | Closed | N/O | 3/4 (20) | 0.9 (23) | 0.150 | 10 | 100 | 0.5 |
| BR-1012DM | Closed | N/O | 5/8 (16) | 0.75 (19) | 0.150 | 10 | 100 | 0.5 |
| BR-1012DMWG | Closed | N/O | 1 (25) | 1.05 (27) | 0.150 | 10 | 100 | 0.5 |
