Quick Details
-
Interface Standard:
-
CCS / GBT
-
Output Current:
-
80A / 125A
-
Output Power:
-
20KW / 30KW, 20KW / 30KW (Optional)
-
Input Voltage:
-
380V, 3-Phase,380V±15%
-
Rated Current:
-
80A / 125A
-
Touch Screen:
-
4.3inch / 7inch touch screen (Optional)
-
Output Voltage:
-
DC200-750V
-
Efficiency:
-
≥95%
-
OCCPP protocol:
-
OCCPP 1.6J
-
Charging Interface:
-
CCS / GBT / ChAdemo (Optional)
-
Charging Cable Length:
-
4M (Optional)
-
RCD:
-
type C, type B
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
AN-HJL-PODC
-
Brand Name:
-
ANER-G
-
Interface Standard:
-
CCS / GBT
-
Output Current:
-
80A / 125A
-
Output Power:
-
20KW / 30KW, 20KW / 30KW (Optional)
-
Input Voltage:
-
380V, 3-Phase,380V±15%
-
Rated Current:
-
80A / 125A
-
Touch Screen:
-
4.3inch / 7inch touch screen (Optional)
-
Output Voltage:
-
DC200-750V
-
Efficiency:
-
≥95%
-
OCCPP protocol:
-
OCCPP 1.6J
-
Charging Interface:
-
CCS / GBT / ChAdemo (Optional)
-
Charging Cable Length:
-
4M (Optional)
-
RCD:
-
type C, type B
BANNER
Products Description
|

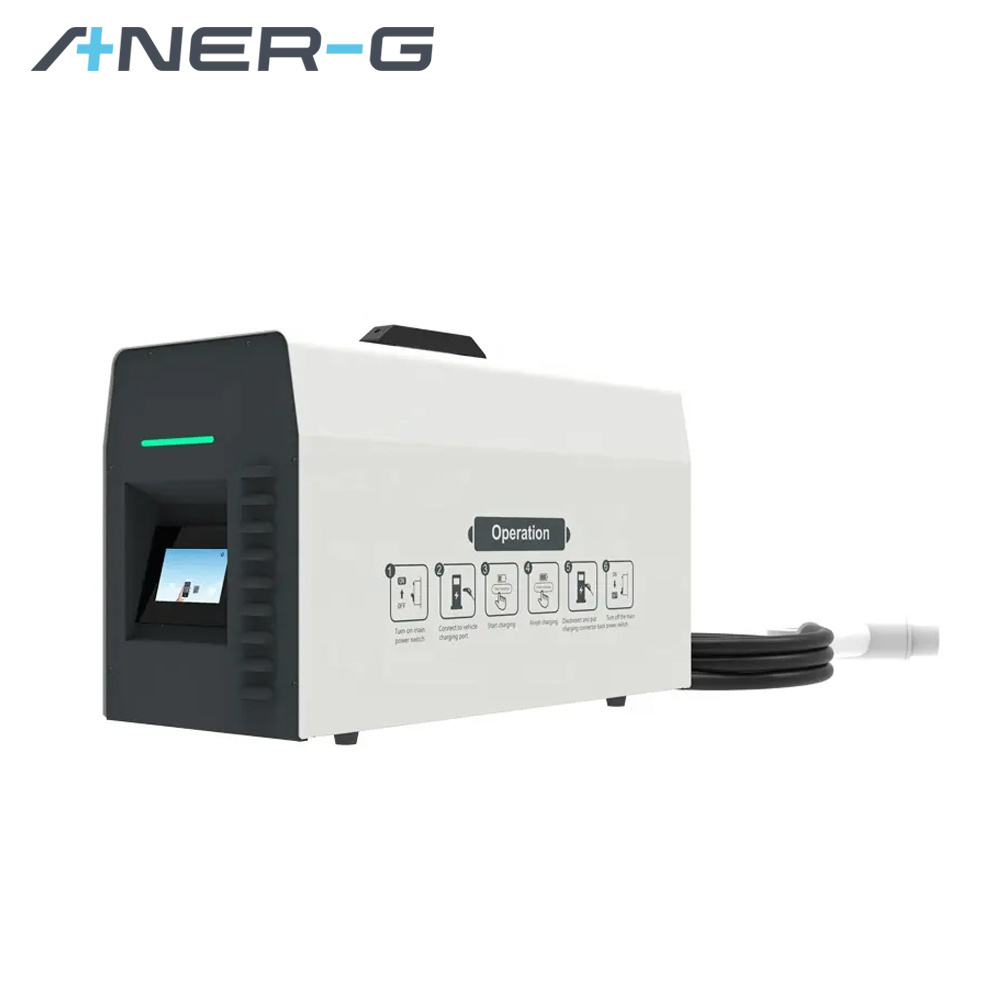

Electric Car DC EV Charger Mobile EV Charging Station CCS1 CCS2 GBT 20KW 30KW OCPP1.6J Portable EV Fast Charger
|
|
|
|
Type
|
Portable DC EV Charger
|
|
|
Charging Standard
|
CCS1 / CCS2 / GBT/ ChAdemo (Optional)
|
|
|
Power
|
20KW / 30KW (Optional)
|
|
|
AC Supply System
|
Three-Phase, 5 Wire AC system
|
|
|
Nominal Input Voltage
|
AC380V±15%
|
|
|
Input Frequency
|
45-65HZ
|
|
|
Rated output voltage
|
DC200-750V / DC150-500V
|
|
|
Operating current
|
80Amp / 125Amp
|
|
|
Power factor
|
0.99(50% load above)
|
|
|
Ambient Humidity
|
5 to 95%
|
|
|
Ambient Temperature Range
|
-25°C to 55°C
|
|
|
Storage Temperature
|
-40 to 70°C
|
|
|
Charging method
|
RFID card / plug & play
|
|
|
User Authentication
|
OR Code/ Password Login
|
|
|
Interface between Charger and CMS
|
Ethernet/3G/4GWIFI (Optional)
|
|
|
Display Screen
|
4.3inch touch screen
|
|
|
OCPP
|
1.6J
|
|
|
Cable length
|
4M (Optional)
|
|
