Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Meeshon
-
Voltage:
-
Customized
-
Weight:
-
850 kg
-
Marketing Type:
-
Hot Sale Product
-
PLC Brand:
-
None
-
Cutting Materials:
-
Cardboard, corrugated paper, honeycomb paper, PP sheet, etc.
-
Function:
-
Cutting, creasing, grooving, marking, contour cutting, etc.
-
Working Area:
-
1300x1100mm, 2500x1600mm, customized
-
Cutting Thickness:
-
0.1-40.0mm, depends on material
-
Tolerance:
-
0.1mm
-
Cutting Speed:
-
0.1-1.2m/s
-
Supported Format:
-
DXF, PLT, etc.
-
Transmission System:
-
Ethernet
-
After-sales Service:
-
Training, tech-support, spare parts, etc.
-
Customization:
-
Machine size, color, function, power supply, etc.
Quick Details
-
Type:
-
cardboard box v grooving cutting machine
-
Production Capacity:
-
600-800 pcs/day
-
Max. workable width:
-
1100mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Meeshon
-
Voltage:
-
Customized
-
Weight:
-
850 kg
-
Marketing Type:
-
Hot Sale Product
-
PLC Brand:
-
None
-
Cutting Materials:
-
Cardboard, corrugated paper, honeycomb paper, PP sheet, etc.
-
Function:
-
Cutting, creasing, grooving, marking, contour cutting, etc.
-
Working Area:
-
1300x1100mm, 2500x1600mm, customized
-
Cutting Thickness:
-
0.1-40.0mm, depends on material
-
Tolerance:
-
0.1mm
-
Cutting Speed:
-
0.1-1.2m/s
-
Supported Format:
-
DXF, PLT, etc.
-
Transmission System:
-
Ethernet
-
After-sales Service:
-
Training, tech-support, spare parts, etc.
-
Customization:
-
Machine size, color, function, power supply, etc.
Products Description
Package Using Digital Flatbed Knife Cutter CNC Oscillating Knife Cutting Machine Cardboard Box V Grooving Cutting Machine
Jinan Meeshon
cardboard box v grooving cutting machine
is an automatic digital multi-function cutting machine suitable for cutting all kinds of paper packaging materials, such as corrugated paper, honeycomb paperboard, hollow paperboard, cardboard, gray cardboard, and PP hollow sheet and some advertising materials, like self-adhesive vinyl paper, KT board, PVC board, EVA, etc.
According different kinds of materials, the cutting thickness for paper boards can up to 40.0mm, advertising boards up to 25.0mm, and foam boards reach 100.0mm.
The entire production
process
of
Meeshon
cardboard box v grooving cutting machine
does not require any dies, reduce costs, shorten delivery times, and provide production flexibility.
Meeshon
cardboard box v grooving cutting machine
can do cutting, creasing, marking, grooving, kiss-cutting, etc., making it capable of different tasks.
CCD cameras will be equipped to assist in cutting printed materials for precise results.
Product Parameters
|
Model
|
MS-1311D
|
MS-1813D
|
MS-2516D
|
MS-3018D
|
|||
|
Working Area
|
1300*1100mm
|
1800*1300mm
|
2500*1600mm
|
3000*1800mm
|
|||
|
Cutting Thickness
|
0.1-40.0mm, depending on the material, customized cut up to 100.0mm
|
|
|
|
|||
|
Cutting Tolerance
|
±0.1mm
|
|
|
|
|||
|
Transmission Interface
|
Ethernet
|
|
|
|
|||
|
Max Cutting Speed
|
1200mm/s
|
|
|
|
|||
|
Supported Format
|
DXF, PLT, and more
|
|
|
|
|||
|
Fixed Mode
|
Vacuum Absorb
|
|
|
|
|||
|
Function
|
Cutting, Creasing, Grooving, Marking, Positioning-cutting
|
|
|
|
|||
|
Recommended Configuration
|
Cutting tool, Creasing tool, Grooving tool, Marking tool, CCD camera
|
|
|
|
|||
|
Materials Available For Cutting
|
Cardboard, Corrugated Board, Honeycomb Paper, Gray Board, PP Corrugated Sheet, Vinyl paper, etc.
|
|
|
|
|||
|
Transmission system
|
Servo motor, linear guide rail, rack and pinion, belt
|
|
|
|
|||
|
Safety device
|
Infrared adopted, sensitive response, safe and reliable
|
|
|
|
|||
|
Supply voltage
|
AC110V/220V/380V±10%, 50HZ/60HZ, customized
|
|
|
|
|||
Details Images

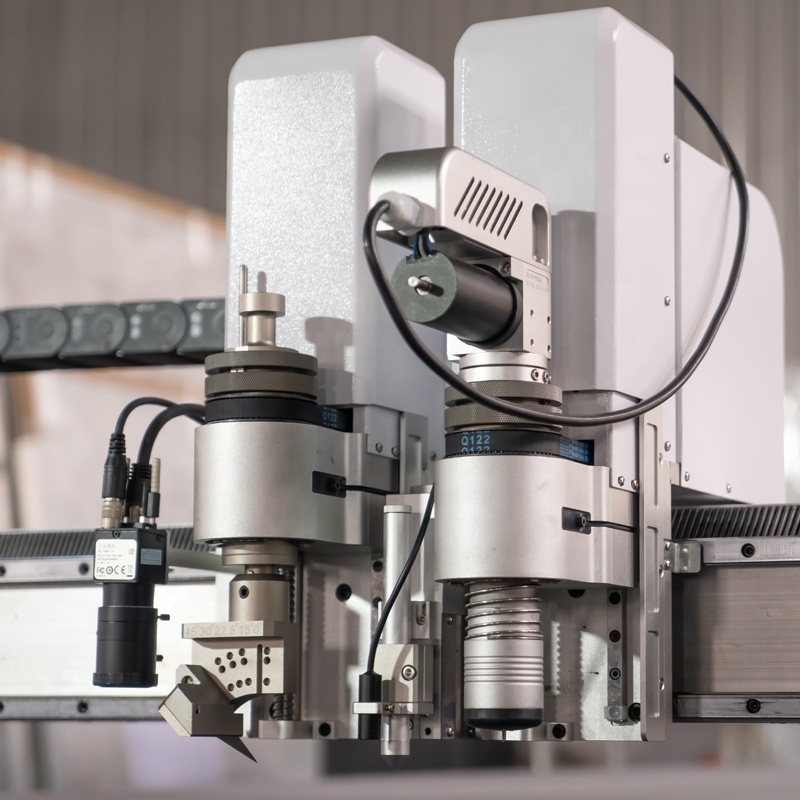

New Modular Tool Holder Design
Easier to install tools, when customers increase the product range, they only need to buy new required tools. Provides convenience for customers to upgrade their products.
Compatible tools: oscillating knife tool, drag tool, creasing tool, V-cutter, kiss cut tool.
Panasonic Servo Motor
Stable performance, high precision, low failure rate, high speed performance.
Infrared Sensing Safety Device
Horizontal and vertical anti-collision protection is used to guarantee there’s no uncovered blind angle. This will effectively protect operator's safety.
Distribution Box
The CNC cutting machine fixes the control distribution box on the machine body to avoid separation causing line failure. All lines use high flexible cables with good abrasion resistance, moisture resistance, cold resistance and high temperature resistance.
High Precision Aviation Aluminum Vacuum Table
With the unique inner part of the wind structure, to ensure that each area of the platform suction even, more powerful suction.
Tablecloth
High-density felt provides excellent support for the material, ensures a tight fit with every positioning, and protects the plate during cutting.
Lathe Bed Structure
The whole machine is made of 5mm thick square metal tube, whole welding process, processed by imported milling machine to ensure solid and durable, which greatly improves the stability of the machine body when the machine is running.
Chain
Simple assembly, durability, long silent circular motion, fast movement and long service life.
