Factory wholesale YE2 400V 380V 220V 180W 370W 550W electric right angle AC Asynchronous worm gear reduction motor with brake

Factory wholesale YE2 400V 380V 220V 180W 370W 550W electric right angle AC Asynchronous worm gear reduction motor with brake

FOB Reference Price: Get Latest Price

≥1 Pieces

US $105

≥10 Pieces

US $100

≥100 Pieces

US $95

≥500 Pieces

US $90

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: HENGBAI

Model Number:: YE2-7134

Frequency:: 50HZ/60HZ

life time:: 10000hours

colour:: blue/sliver

change brush:: 2000hours

Application:: Power Tools,packing machine

Motor type:: PMDC Brushed Motor

efficiency:: 85%

bearings:: SKF

oil seal:: SKF

Voltage:: 220/380V 380/660V 230/400V 400/690V 440V

Cooling method:: IC411

Quick Details

AC Voltage:: 380V/220V

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Brand Name:: HENGBAI

Model Number:: YE2-7134

Frequency:: 50HZ/60HZ

life time:: 10000hours

colour:: blue/sliver

change brush:: 2000hours

Application:: Power Tools,packing machine

Motor type:: PMDC Brushed Motor

efficiency:: 85%

bearings:: SKF

oil seal:: SKF

Voltage:: 220/380V 380/660V 230/400V 400/690V 440V

Cooling method:: IC411

Product Description

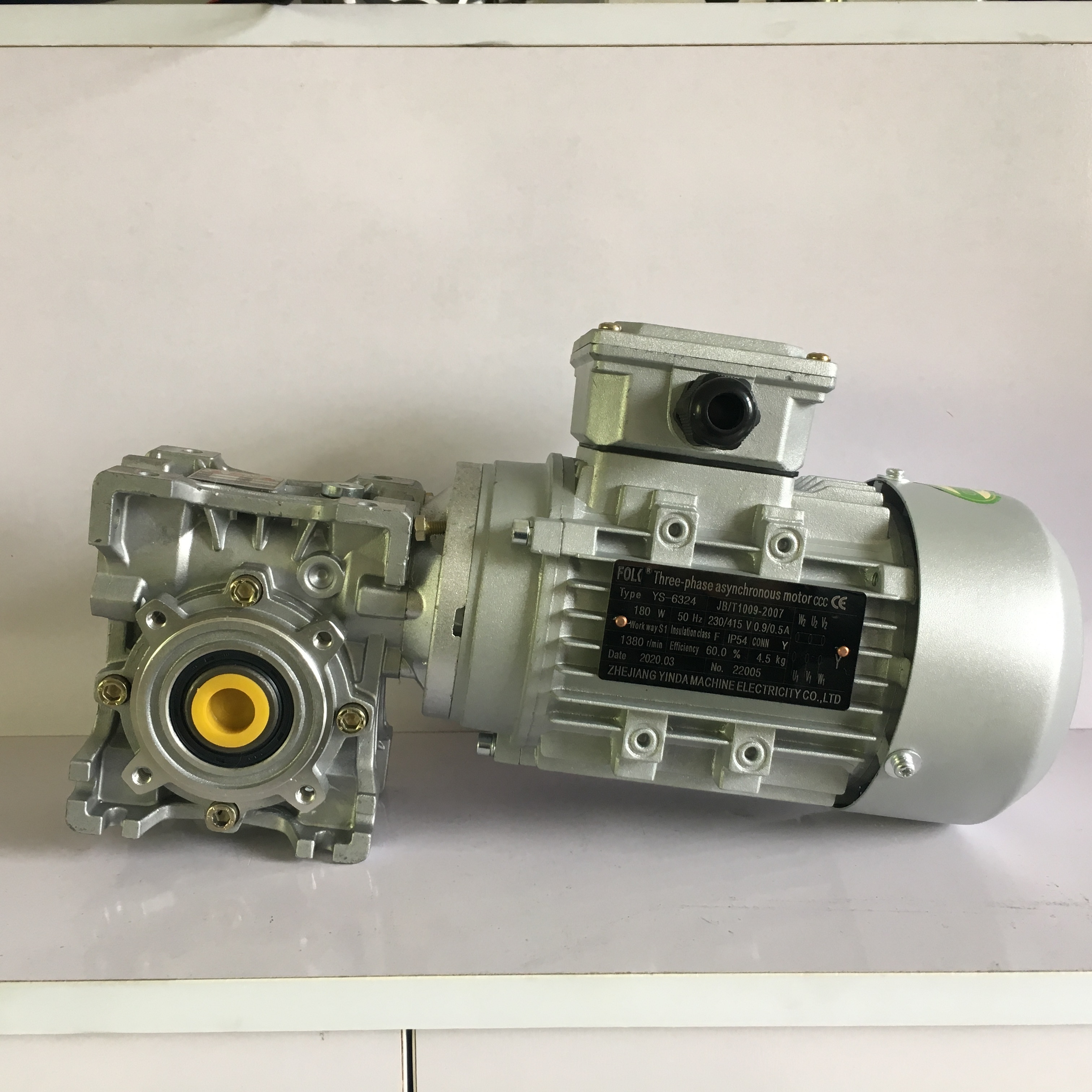

NMRV50.YE2-7134 SERIES AC WORM GEAR MOTOR

technical data

YL71 series motor technical data

Model	rated voltage v	50HZ load speed rpm	60HZ load speed rpm	output power W	rated torque Nm	Stall torque Nm	motor length mm
YE2-7114	380V/220V	1450	1750	180W	0.98	2.9	225
YE2-7124	380V/220V	1450	1750	370W	1.95	6.2	225
YE2-7134	380V/220V	1450	1750	550W	2.90	9.2	225

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder

YE2-7114 with NMRV50 series gear motor specification:

ratio	7.5	10	15	20	25	30	40	50	60	80	100
efficiency	95%	90%	90%	80%	80%	75%	70%	65%	55%	45%	45%
rated speed(50HZ)	194	145	97	73	58	48	36	29	24	18	14.5
rated speed(60HZ)	234	175	117	87	70	58	44	35	29	22	17.5
rated torque	6.9	8.5	13.2	15.6	18.7	22.5	27.4	30.6	32.8	35.2	44.1

YE2-7124 with NMRV50 series gear motor specification:

ratio	7.5	10	15	20	25	30	40	50	60	80	100
efficiency	95%	90%	90%	80%	80%	75%	70%	65%	55%	45%	45%
rated speed(50HZ)	194	145	97	73	58	48	36	29	24	18	14.5
rated speed(60HZ)	234	175	117	87	70	58	44	35	29	22	17.5
rated torque	13.7	18.8	25.8	33.6	41.7	44.2	51.7	61.8	65.7	70.3	85.8

YE2-7134 with NMRV50 series gear motor specification

ratio	7.5	10	15	20	25	30	40	50	60	80	100
efficiency	95%	90%	90%	80%	80%	75%	70%	65%	55%	45%	45%
rated speed(50HZ)	194	145	97	73	58	48	36	29	24	18	14.5
rated speed(60HZ)	234	175	117	87	70	58	44	35	29	22	17.5
rated torque	20.5	28.2	38.7	50.4	62.5	66.3	77.5	92.7	100	100	100
