Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1900 mm
-
Travel (Y Axis)(mm):
-
3700 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1900*3700*300mm
-
Power (kW):
-
16
-
Weight (KG):
-
2800
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Spindle Speed:
-
0-24000RPM
-
Drive Mode:
-
Servo system
-
Command:
-
G Code, *uoo, *mmg, *plt
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC control system
-
Motor:
-
Leadshine Servo Motor
-
Tools cooling:
-
OIL sprayer pump
-
Vacuum Pump:
-
7.5KW VACUUM Pump
-
Tool Magazine:
-
12pcs ISO30 tool holder
Quick Details
-
Working Table Size(mm):
-
1900*3700
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1900 mm
-
Travel (Y Axis)(mm):
-
3700 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
AC380V/50HZ
-
Dimension(L*W*H):
-
1900*3700*300mm
-
Power (kW):
-
16
-
Weight (KG):
-
2800
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Spindle Speed:
-
0-24000RPM
-
Drive Mode:
-
Servo system
-
Command:
-
G Code, *uoo, *mmg, *plt
-
Inverter:
-
11KW Fuling inverter
-
Control System:
-
Taiwan LNC control system
-
Motor:
-
Leadshine Servo Motor
-
Tools cooling:
-
OIL sprayer pump
-
Vacuum Pump:
-
7.5KW VACUUM Pump
-
Tool Magazine:
-
12pcs ISO30 tool holder

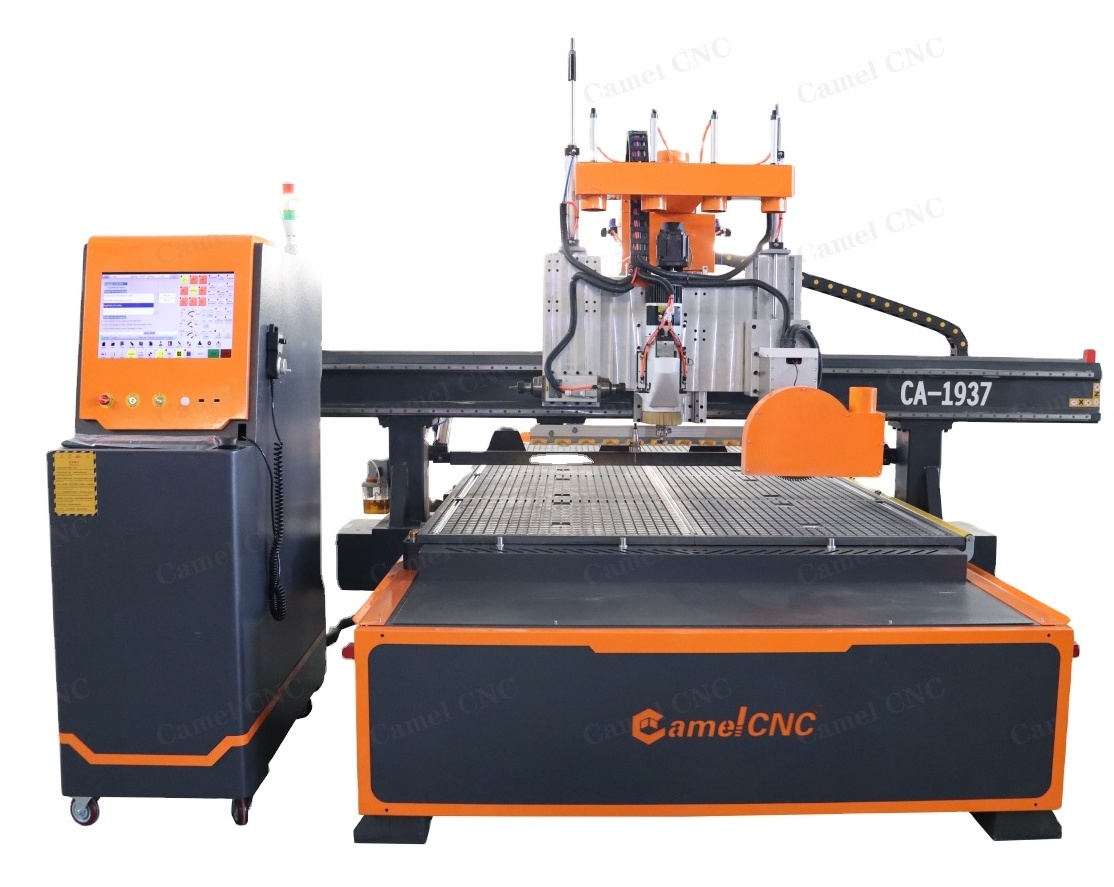

Automatic 4 axis wood cnc router machinery furniture industry cabinet door design CA-1937 with horizontal spindle saw blade
1.Woodworking Industry:MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum,iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
2.Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3.Architectural model industry: metal models of copper, aluminum,iron etc, and non-metal models, such as artificial marble, grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
Taiwan LNC control system support tools change automatically,with reasonable design makes operation more convenient.
Movable 14pcs linear auto tool change magazine,carousal type as optional.
9kw HQD air cooled spindle with 5+4 boring head can do engraving and drilling special for cabinets efficiently.
Secondary dust removal with pushing device behind of gantry.
Big gantry cover keeps cleaning,and ensure the safety during working.
Horizontal spindle for Side drilling and slotting
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function.
We can recommend the most suitable machine according to our experience.
Q2: This is the first time i buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer"online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.
Q7: How is the payment?
Normally we accept T/ or LC, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
