Quick Details
-
Output Speed:
-
2 - 1450 rpm
-
Place of Origin:
-
Guangdong, China
-
Drive Shaft:
-
2 way 3 way 4 way
-
Efficiency::
-
95%
-
Gearing Type:
-
Spiral Bevel Gear
-
Rotate Direction:
-
clockwise anti-clockwise
-
Noise Level:
-
less than 80dB
-
Temperature Level:
-
less than 50 Degrees Celsius
-
Warranty:
-
12 Months
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
Max 132 N.m
-
Input Speed:
-
Max 1450 rpm
-
Output Speed:
-
2 - 1450 rpm
-
Place of Origin:
-
Guangdong, China
-
Drive Shaft:
-
2 way 3 way 4 way
-
Efficiency::
-
95%
-
Gearing Type:
-
Spiral Bevel Gear
-
Rotate Direction:
-
clockwise anti-clockwise
-
Noise Level:
-
less than 80dB
-
Temperature Level:
-
less than 50 Degrees Celsius
-
Warranty:
-
12 Months

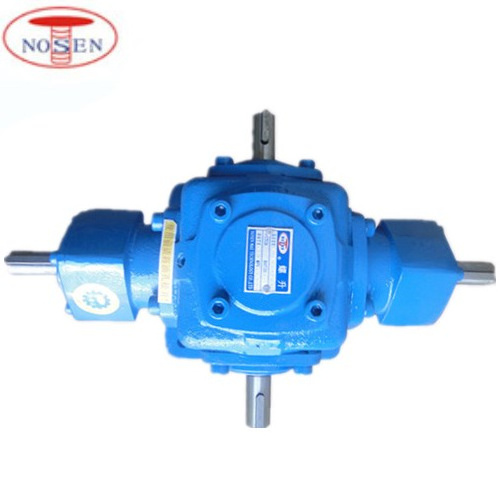

High Efficiency Power Transmission Machine Steering 4 Way Bevel Gearbox
|
Model
|
RN-6M | ||||||||
|
Input RPM
|
10 | 100 | 200 | 300 | 400 | 580 | 870 | 1150 | 1450 |
|
Gear Ratio
|
1:1 | ||||||||
|
Work Torque (N.m)
|
132 | 127 | 124 | 123 | 122 | 119 | 113 | 103 | 96 |
|
Input Power(kw)
|
0.106 | 1.02 | 1.99 | 2.95 | 3.9 | 5.51 | 7.88 | 9.53 | 11.18 |
|
Gear Ratio
|
2:1 | ||||||||
|
Work Torque(N.m)
|
116 | 114 | 111 | 110 | 109 | 108 | 105 | 104 | 102 |
|
Input Power(kw)
|
0.047 | 0.46 | 0.89 | 1.32 | 1.75 | 2.51 | 3.66 | 4.79 | 5.93 |
| Features | |
| Model |
RN-2M,RN-4M,RN-6M,RN-8M, RN-10M,RN-12M,RN-16M, RN-20M,RN-25M. |
| Speed Ratio | 1:1,2:1,3:1,4:1,5:1. Special ratio,following clients' orders |
| Input Shaft | 2 ways,3ways,4 ways gearboxes are available |
| Configurations |
spiral bevel gears,bearings,aluminum housing,oil sealing, input and output shafts etc. |
| Material |
Alloy steel spiral bevel gears: , taper roller bearings, cast iron gearbox base; S45C Input&Output shaft |
| Functions | right angles change transmission directions, |
| Compared to worm gear reducer: | |
| spiral bevel gear box is of flexiable operational capacity, | |
| high transmission torque and save more cost. |
For Example:
Model: RN-2M-I-LR-O--1:1
RN---- Nosen brand
2M--- Gearbox base No.
I-LR-O--- Direction code
1:1---- Speed ratio
>Relative products
Trade terms:CIF FOB EXW
Payment Terms: L/C,T/T Western Union
Delivery Time:5-7working days after deposit.
Packaging Detail:Standard exporting package
Shipping: By sea,by air and by express delivery
