- Product Details
- {{item.text}}
Quick Details
-
Communication:
-
RS485
-
Certificate:
-
ISO9001:2008
-
Transit Speed:
-
30~40 persons / min
-
Rotating Direction:
-
Both way
-
Warranty:
-
1 Year
-
Feature:
-
Durable
-
Driving Motor:
-
DC brush motor
-
Keyword:
-
turnstile mechanism
Quick Details
-
Place of Origin:
-
China
-
Cabinet Material:
-
304 Stainless steel
-
Mechanism Material:
-
Die-casting Alloy Aluminum
-
Communication:
-
RS485
-
Certificate:
-
ISO9001:2008
-
Transit Speed:
-
30~40 persons / min
-
Rotating Direction:
-
Both way
-
Warranty:
-
1 Year
-
Feature:
-
Durable
-
Driving Motor:
-
DC brush motor
-
Keyword:
-
turnstile mechanism

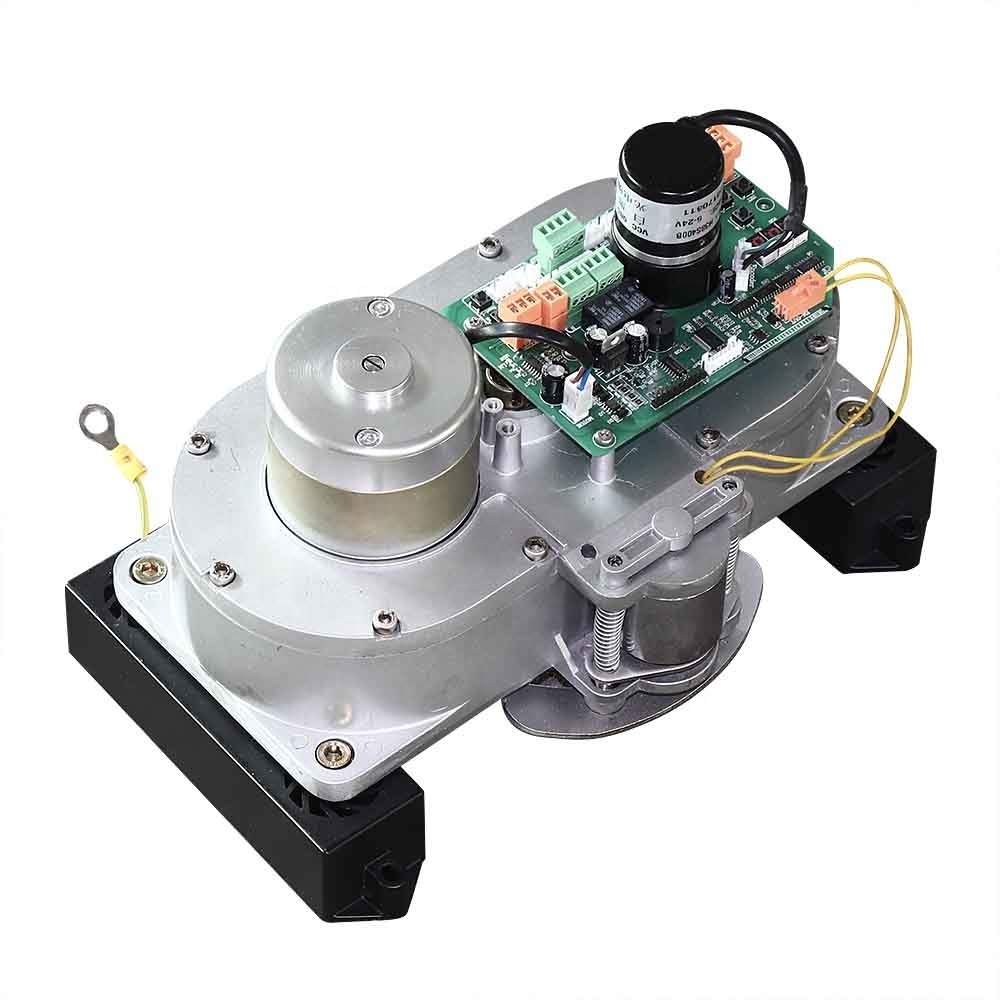

High Quality DC Motor Full Automatic Tripod Turnstile Gate Mechanism
This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Production Series
| Model Item | WJTS211 |
| Dimension of Housing | 420*330*980mm |
| Length of Pole(out of housing) | 490mm |
| Material of housing | 304 Stainless steel |
| Driving Motor | 24V Brush DC Motor |
| Input Interface | Dry Contact and Switch Signal Connection |
| Driving Motor | Brush dc motor |
| Transit Speed | 25~32 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Working Temperature | —25°C~50°C |
| Relative Humidity | ≤90%, no condensation |
Main Features
1). Card reader available, support WEIGNAD 26/34 communication card reader
2). Bi-directional pass/any single direction pass(adjustable)
3). Arm auto-drop when power off and auto rise up when power on and auto stop on obstacle
4). Traffic light indicator/ Pass direction indication
5). Alarm light available(optional function)/Remote control available (optional function)/ Counter available (optional function)
6). RS232 socket available which can connect to computer. It can also connect to computer by Internet LAN socket (Optional function)
