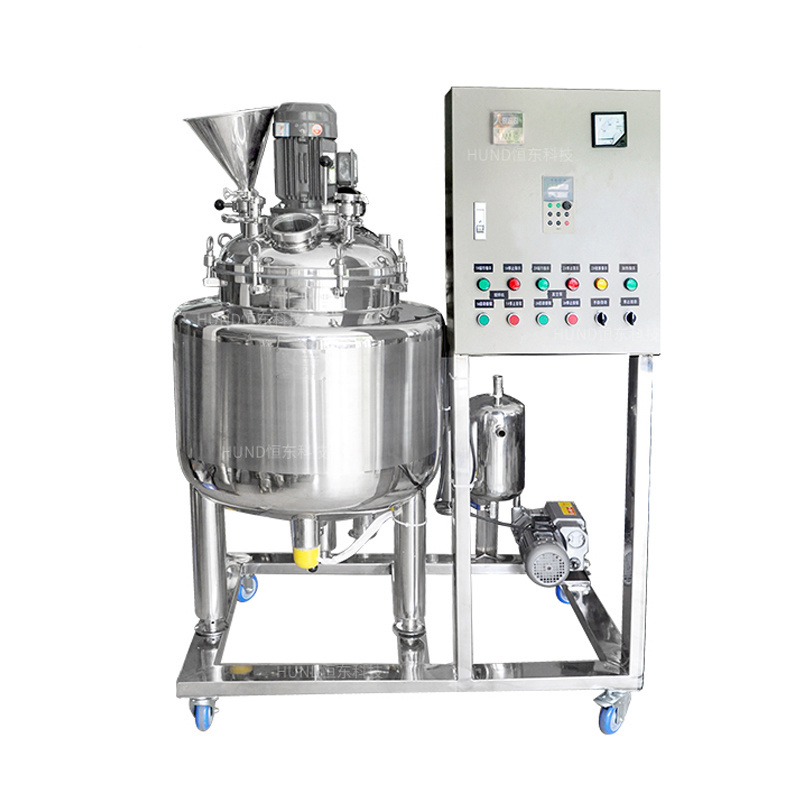

50L 100L Small Mix Equipment Tomato Gel Mayonnaise Cream Mixer Blending Ketchup Sauce Electric Heated Mixing Tank

50L 100L Small Mix Equipment Tomato Gel Mayonnaise Cream Mixer Blending Ketchup Sauce Electric Heated Mixing Tank

FOB Reference Price: Get Latest Price

≥1 Sets

US $2100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 500 KG

Place of Origin:: Guangdong, China

Brand Name:: HunDom

Voltage:: 220v/380v Customized

Dimension(L*W*H):: as customers' requirement

Power (kW):: 1.5 kW

Marketing Type:: Hot Product 2021

Spout size:: 45mm

Heating power:: 12kw

Usage:: Food , chemical , dairy , beverage ects

Function:: Mixer Blender and Emulsifying

Machine Type:: Dispersion Blender Mixer Machine

Quick Details

Barrel Volume (L):: 500

Max. Loading Volume (L):: 10000 L

Range of Spindle Speed(r.p.m):: 1 - 65 r.p.m

Weight (KG):: 500 KG

Place of Origin:: Guangdong, China

Brand Name:: HunDom

Voltage:: 220v/380v Customized

Dimension(L*W*H):: as customers' requirement

Power (kW):: 1.5 kW

Marketing Type:: Hot Product 2021

Spout size:: 45mm

Heating power:: 12kw

Usage:: Food , chemical , dairy , beverage ects

Function:: Mixer Blender and Emulsifying

Machine Type:: Dispersion Blender Mixer Machine

Products Description

50L 100L Small Mix Equipment Tomato Gel Mayonnaise Cream Mixer Blending Ketchup Sauce Electric Heated Mixing Tank

Specification
Material: SS304 / 316L;
Capacity: 50-5000L (customized is accepted);
Configuration with agitator and/or homogenizer;
Jacket: single layer, double jacket, three-layer
Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (design according to pressure);
Head: open cover, seal with manhole/handhole etc.;
Shape: cylinder or cone, conical /flat/elliptical bottom with discharge.
Heat Method: steam, electricity, hot water or oil circulated.

Application

It is widely used in dairy industry, food industry, chemical industry, beverage and other industrial sectors, as heating, cooling, heat preservation, anti-corrosive, strong production capacity, Cooling, insulation, sterilization treatment or storage of slurry must be stainless steel tanks, especially for pasteurization of milk and insulation, ice cream production line is the necessary equipment.

Model	Power (KW)	Speed (r/min)	Dimension of Tank (mm）	Insulation (mm)
HD-1000	7.5	23-600/2800	1060x1220	50
HD-2000	11	23-600/2800	1340x1500	50
HD-3000	15	23-600/2800	1410x2000	50
HD-4000	18.5	23-600/2800	1620x2000	50
HD-5000	22	23-600/2800	1810x2000	50

More details

Structure

The equipment is a liquid storage containers, composed of reducer, stirring paddle and the material valve, disc thermometer and other components.

Single Layer

The inner layer: adapts stainless steel plate SS304 or 316L material, and the surface mirror polishing.

Double Jacket
The jacket: made of SS304 steel, spiral jacket device, cold water from the bottom up without pressure, to achieve the purpose of the best heating and cooling.

Three Layers
The external insulation layer: the environmental polyurethane foam casting/ perlite particles, maintaining the temperature difference with the outside, to the effect of insulation.

Reducer
Reducer output shaft connected with the stirring paddle, the use of looper connection, easy disassemble and cleaning.

Additional Devices
Sterile respirator, sterile sampling port, manhole/ cover, inlet and outlet, thermometer, CIP cleaning spray balls, Liquid level gauge, ladder, (Other special customized requirements from customers are acceptable.)

Mixer Type

Agitator

Mixing speed rpm and impeller type can be customized according to customers’ request. Such as:

1)Anchor with scrapers
2)Frame with scrapers
3)Dispenser(single/double/three layers)
4)Triple impeller（double/three layers）
5)Turbine disk
6)Pitched paddles
6)Ribbon mixer
7)Top entry high shear emulsifier
8)Bottom entry high shear emulsifier
9)Anchor+ Dispenser
10)Anchor+ Top emulsifier
11)Anchor+ Bottom emulsifier
12)Anchor+ Emulsifier+Dispenser
13)Anchor+ Emulsifier+Pitched paddles
(one-direction/Coaxial double-direction)

Optional Emulsifier

A: Suitable for materials that are easy to mix and have no requirement for fineness.
B: Applied to vacuum/pressure tank, mechanical seal is installed on the shaft to prevent liquid/gas leakage.
C: Suitable for materials that are not easy to mix and have requirement for fineness.
D: Installed at the bottom of the tank and usually used with overhead mixer together.

A. Top Entry:

To be used both in open cover atmospheric pressure tank and sealed with manhole vacuum/positive pressure tank.
B. Bottom Entry:
It is outstanding when the liquid level in the tank gets very low during operation, or the space is limited. What is more, strong vortex as well as aeration is greatly reduced with the bottom mounted mixers.

C. Inline Circulation:
The high-shear emulsification pump has the function of homogeneous、mixing and conveying, and handles low viscosity liquids without need for additional transfer pumps. It can be used for pipeline connection, single-pass or multi-circulation processing products.
