Quick Details
-
Dimension(L*W*H):
-
Machine Size
-
Model Number:
-
OEM
-
Weight (T):
-
1
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
After Warranty Service:
-
Online support
-
Type:
-
High-Speed Punching Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIidear
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Machine Size
-
Model Number:
-
OEM
-
Weight (T):
-
1
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customizable
-
After Warranty Service:
-
Online support
-
Type:
-
High-Speed Punching Machine
Product Overview

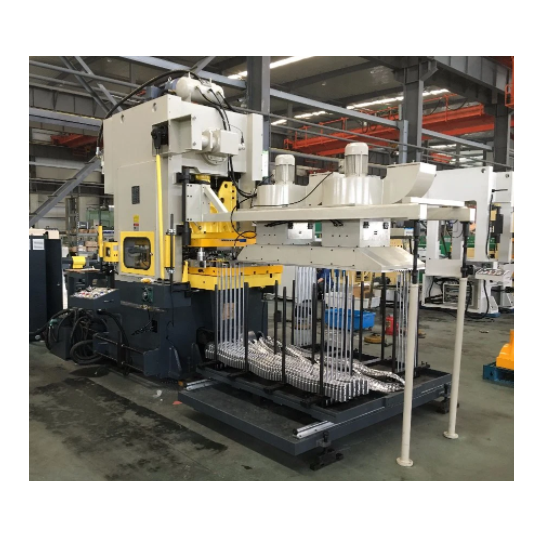

fin press line punching machine
1.eries C-type fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the produxtion of air conditioner fins. The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control systerm.
2. Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected as well as the function of progress change.
3. Production line of special specifications can be made subject to the user's requirements.
The main components:
♦ aluminum foil uncoiling mechanism (photoelectric induction automatic discharge)
♦ aluminum foil
♦ aluminum foil protective device of oil device
♦ with a new design
♦ low noise, high speed precision press
♦ high speed precision fin die
♦ single and double jump mechanism ( optional),
♦ a material pulling mechanism
♦ the latest design guide rod type finned stacking device
♦ fertilizer collecting device
♦ the man-machine interface of professional electrical control system
♦ aluminum foil uncoiling mechanism (photoelectric induction automatic discharge)
♦ aluminum foil
♦ aluminum foil protective device of oil device
♦ with a new design
♦ low noise, high speed precision press
♦ high speed precision fin die
♦ single and double jump mechanism ( optional),
♦ a material pulling mechanism
♦ the latest design guide rod type finned stacking device
♦ fertilizer collecting device
♦ the man-machine interface of professional electrical control system
FEATURES AT A GLANCE
|
Type
|
Four-column two-point mechanism
|
|
Capacity(KN)
|
800
|
|
Slide of Stroke (mm)
|
40
|
|
No-load stroke(spm)
|
150~300
|
|
Die height (mm)
|
280~330(Final size will confirm)
|
|
Slide Lifting height (mm)
|
100
|
|
Size of table(H×L, mm)
|
1600×1200(Final size will confirm)
|
|
Size of slide(H×L, mm)
|
1055×1190
|
|
Main motor power(KW)
|
15
|
|
Aluminum coil Inner Diameter)
|
Φ150
|
|
Max diameter of aluminum coil(mm)
|
Φ1200
|
|
Max width of aluminum coil (mm)
|
820
|
|
Material rack loading weight(Kg)
|
2000
|
|
Sucking Length(mm)
|
900mm
|
|
Collecting Height(mm)
|
720~900mm
|
|
Total Weight(±2Ton)
|
18
|
|
Working Pressure(kg f/cm2)
Gas consumption(m3/min) |
5.5~7.5kgf/cm2
1.0m3/min |
|
Power Supply
|
AC380V±10%/50HZ
|
About Aidear
Aidear
An excellent, specialized refrigeration system solutions provider.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Aidear
Based on Honesty, Responsible, Technology and continuous Innovation.
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Aidear, your idea!
Factory Tour
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
