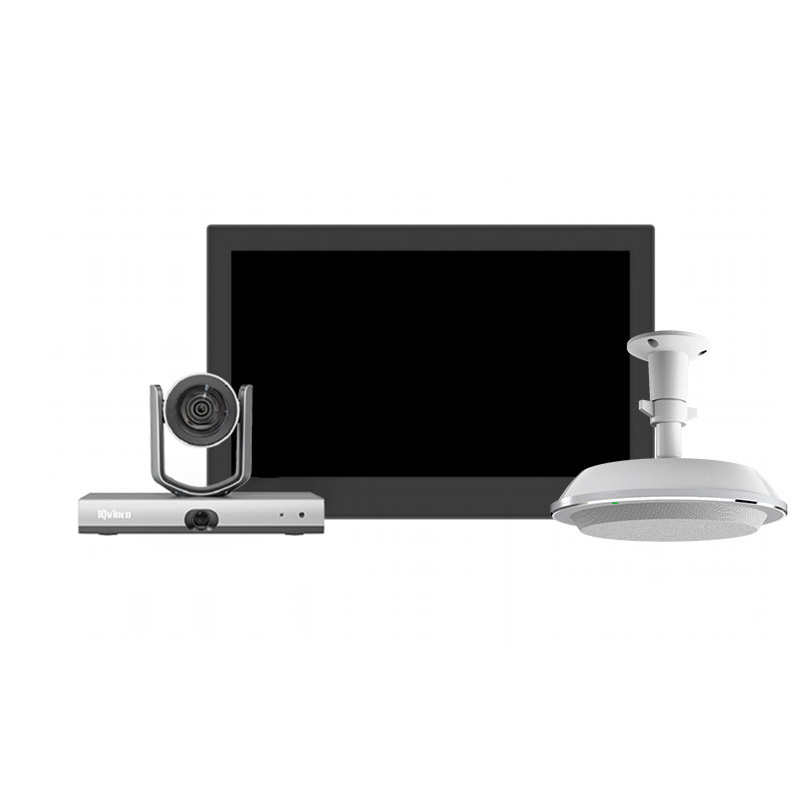

Educational System Meeting Conference Camera 4k Portable Classroom Lecture Capture for School Classrooms

Educational System Meeting Conference Camera 4k Portable Classroom Lecture Capture for School Classrooms

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2100

≥50 Pieces

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: IQBoard

Model Number:: LCS2310-2

System:: Embedded remote broadcast directing platform

Video input:: HDM1*1

Screen size:: 11.6 inch

Pickup radius:: 6 meters

Audio Output:: RCA: Analog audio output

Pickup adapter:: 6 pin CANNON , used for connecting special pickup

White balance:: Auto, indoor, outdoor, one-click, manual

Auto focus:: Support

Weight:: 0.5kg

Resolution(highest):: 1080P

Quick Details

Type:: Video Conference System

Function:: Lecture Capture

Place of Origin:: Fujian, China

Brand Name:: IQBoard

Model Number:: LCS2310-2

System:: Embedded remote broadcast directing platform

Video input:: HDM1*1

Screen size:: 11.6 inch

Pickup radius:: 6 meters

Audio Output:: RCA: Analog audio output

Pickup adapter:: 6 pin CANNON , used for connecting special pickup

White balance:: Auto, indoor, outdoor, one-click, manual

Auto focus:: Support

Weight:: 0.5kg

Resolution(highest):: 1080P

Products Description

Classroom with Lecture Capture System

By connecting the Lecture Capture System to NMP, we can build a - Lecture Capture classroom with live streaming, so more video input sources can be extended to the Lecture Capture System, also there are abundant video course resources can be obtained.

System structure	Embedded ARM Linux
Audio interface	Audio Input:Line in 1; Wireless MIC in 1；
Audio interface		Audio Output:Line out 1; Audio out for earphone 1;
Storage	Built in HDD;1TB
Battery	Built-in 150WH rechargeable battery pack
Display	15.6 inch IPS FHD LCD screen
Touch	Capacitive touch screen
Environment temperature	0℃-40℃
Environment humidity	0-85%RH
Power consumption	~45W(including battery pack charging power)
Power adapter	Power adapter External 19V@65W power adapter
Dimension	387mm(W) ×248mm(D) ×29.5mm(H)
Camera and Lens Specifications
Image sensor	1/2.8 inch HD CMOS
Sensor pixels	2.07 million pixels, 16:9 aspect ratio
Video format	SDI Output: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;720P60/50/30/25/59.94/29.97 LAN Output: Supports up to 1920*1080@60fps
Optical lens	20x optical zoom lens f＝5.5mm～110mm
Viewing angle	3.3° (narrow angle) and 54.7°(wide angle)
Aperture ratio	F1.6 – F3.5
Digital zoom	10X
Video adjustment	Brightness, chroma, saturation, contrast, sharpness, blackandwhite mode, gamma curve
Interface Functionality and Performance
Video output interface	SDI, LAN, WiFi (wireless RF)
Video coding	H.265, H.264
Audio input interface	A-IN: Dual-channel 3.5mm line-leve
Network interface	1000M Ethernet port (10/100BASE-TX)
Communication protocol	Protocol: VISCA/Pelco-D/Pelco-P Baud rate: 115200/9600/4800/2400 bps
PTZ (Pan-Tilt-Zoom) Specifications
Rotation angle range	Horizontal: ±170°, vertical: -30°～90°
Rotation speed	Horizontal: 0.1°～60°/sec, vertical: 0.1°～30°/sec
Preset speed	Horizontal: 60°/sec, vertical: 30°/sec
Number of presets	Set up to 255 presets (10 by remote control)
Others
Temperature	Working temperature: -10℃～+40℃Storage temperature: -10℃～+60℃
Humidity	Working humidity: 20%～80% Storage humidity: 20%～90%
Dimensions	Length × Width × Height: 149mm ×214mm×198mm
Weight (approx.)	1.87kg
Accessories
Included accessories	Power adapter, remote control, user manual, warranty card, packing list
Optional accessories	Mounting bracket
