Quick Details
-
Weight:
-
3000kg
-
Size:
-
L3600*W1300*H1800mm
-
Power:
-
2.2kw
-
Productivity:
-
720L/h
-
Weight (KG):
-
3000 kg
-
Product name:
-
Stacked Screw Sludge Dewatering Machine
-
Capacity:
-
DS80-160kg/h
-
Sludge concentration:
-
5000mg/L-50000mg/L
-
Operating weight:
-
3000kg
-
Net weight:
-
1600kg
-
Keywords:
-
Stacked Screw Sludge Dewatering Machine
-
Advantage:
-
Efficient
-
Usage:
-
Water Treament
-
Function:
-
Producing Fresh Water
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Henan,China(Mainland)
-
Brand Name:
-
Honest
-
Material:
-
Sludge Dehydrator
-
Weight:
-
3000kg
-
Size:
-
L3600*W1300*H1800mm
-
Power:
-
2.2kw
-
Productivity:
-
720L/h
-
Weight (KG):
-
3000 kg
-
Product name:
-
Stacked Screw Sludge Dewatering Machine
-
Capacity:
-
DS80-160kg/h
-
Sludge concentration:
-
5000mg/L-50000mg/L
-
Operating weight:
-
3000kg
-
Net weight:
-
1600kg
-
Keywords:
-
Stacked Screw Sludge Dewatering Machine
-
Advantage:
-
Efficient
-
Usage:
-
Water Treament
-
Function:
-
Producing Fresh Water
-
Color:
-
Customized Color

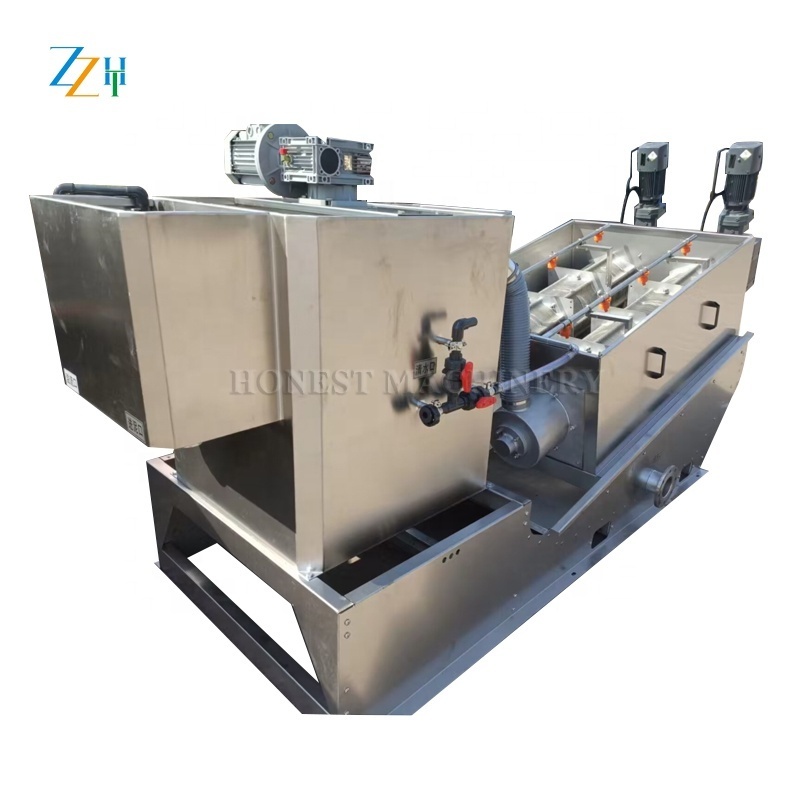

Hot Sale Sludge Dewatering Pressing / Waste Water Sludge Dewatering Press / Stacked Screw Sludge Dewatering Machine
Working principle:
When the equipment is working, the sludge enters the filter tube from the feeding inlet, and moves towards the discharge port due to the push of the spiral shaft rotary vane. As the screw pitch between the spiral shafts gradually reduces, the pressure on the sludge also increases, so the sludge dehydrate under the effect of pressure difference. The water flows out from the filter gap between the fixed ring and the movable ring. At the same time, the equipment relies on the self-cleaning function between the fixed plate and the movable plate to clean the filter gap to prevent blocking. The mud cake is discharged from the discharge port under the push of the spiral shaft after full dehydration.
Equipment features:
Low energy consumption, not easy to block, small space area, high automation, simple operation and maintenance.
|
Model |
HT-DL351 |
|
Size |
L3600×W1300×H1800mm |
|
Total power |
2.2kw |
|
Capacity |
DS80-160kg/h |
|
Sludge concentration |
5000mg/L-50000mg/L |
|
Max dosage |
720L/h |
|
Power supply |
1φ 230V 50Hz 3phase |
|
N et weight |
1 600kg |
|
Operating weight |
3 000kg |
If you need further information, please contact us freely, we will do our best to cooperate with you.
