Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2x1.7x1.7m
-
Weight:
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
slit blade:
-
vertical/round blade
-
control:
-
computer control/PLC control
-
Certification:
-
CE
-
unwind diameter:
-
400mm
-
slit width:
-
30-1000mm
-
rewind diameter:
-
20-200mm
-
rewind shaft:
-
2'',3'',1.5''
-
paepr core change:
-
manual
-
precision:
-
0.2mm
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
350 m/min
-
Max. workable width:
-
1000mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HWASEN
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2x1.7x1.7m
-
Weight:
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
slit blade:
-
vertical/round blade
-
control:
-
computer control/PLC control
-
Certification:
-
CE
-
unwind diameter:
-
400mm
-
slit width:
-
30-1000mm
-
rewind diameter:
-
20-200mm
-
rewind shaft:
-
2'',3'',1.5''
-
paepr core change:
-
manual
-
precision:
-
0.2mm

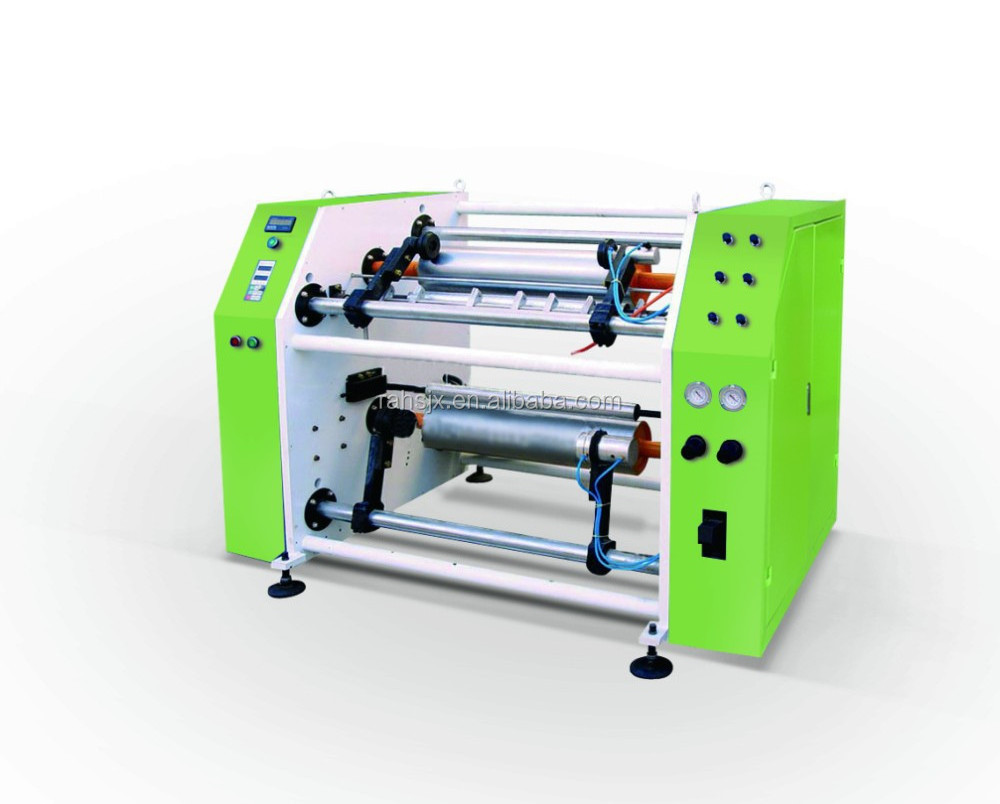

HSRW-1000 PE stretch film roll slitter rewinding machine
1 .Feature:
1 ) It is a kind of multi-functional machine integrated with slitting and rewinding.
2 ) It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.
2 . Main Technical Specification
|
Model |
HS RW- 10 00 |
|
Max. Unwind width |
10 00mm |
|
Main motor |
2.2kw |
|
Linear speed of machinery |
50 - 30 0 m/min |
|
Paper roll change type |
By hand |
|
Max. Unwind diameter |
500mm |
|
Unwind paper core diameter |
3" |
|
Min. Rewind width |
100-1000mm |
|
Rewind diameter |
50-200mm |
|
Core specification of sub-roll |
3",2", 1" |
|
Overall dimensions (L×W×H) |
2 ×1. 7 ×1. 7 m |
|
Weight |
1500kg |
3. PICTURES
