Quick Details
-
Description:
-

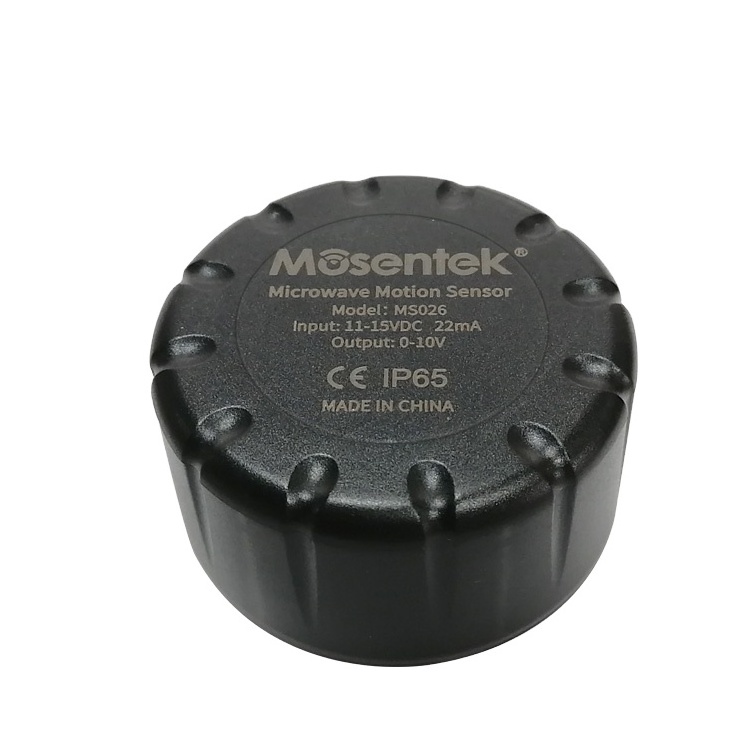

zhaga book 18, ZHAGA dimmable microwave motion sensor
-
Model Number:
-
MS026
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOSENTEK
-
Theory:
-
microwave motion sensor
-
Output:
-
0-10v dimming, 0-10v / PWM
-
Warranty:
-
5 Years
-
Detection Range:
-
10-12m diameter range
-
Function:
-
dimming control and daylight monitoring
-
Installation Height:
-
13m Max (ceiling mounting)
-
input:
-
12V DC 25mA
-
Sensing Object:
-
human body motion
-
IP Rating:
-
IP65
-
Parameter setting:
-
remote controller setting
-
daylight sensor::
-
Dual light sensor
Quick Details
-
Use:
-
lighting and lighting system, outdoor lighting
-
Features:
-
zhaga book 18 dimmable motion sensor
-
Mounting Type:
-
open, ceiling and wall mounting
-
Description:
-
zhaga book 18, ZHAGA dimmable microwave motion sensor
-
Model Number:
-
MS026
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOSENTEK
-
Theory:
-
microwave motion sensor
-
Output:
-
0-10v dimming, 0-10v / PWM
-
Warranty:
-
5 Years
-
Detection Range:
-
10-12m diameter range
-
Function:
-
dimming control and daylight monitoring
-
Installation Height:
-
13m Max (ceiling mounting)
-
input:
-
12V DC 25mA
-
Sensing Object:
-
human body motion
-
IP Rating:
-
IP65
-
Parameter setting:
-
remote controller setting
-
daylight sensor::
-
Dual light sensor
High bay 13M Daylight harvest and 0-10v dimming zhaga IP65 motion sensor
This product is a new motion sensor used in project upgraded from normal lighting to intelligent lighting system. Easy operation and multiple functions for your options, if the lighting fixture manufacturers / contactors do not want the sensor function, they just need to easily remove the sensor head and put the cover cap on, the fixture becomes standard non-sensor control fixture.
Intelligent photocell to measure and differentiate natural light from LED light even when used built-in. Memory function with one button commissioning, easy operation and user friendly. IR remote commissioning, easy setting and user friendly.
Intelligent photocell to measure and differentiate natural light from LED light even when used built-in. Memory function with one button commissioning, easy operation and user friendly. IR remote commissioning, easy setting and user friendly.
Product Features
1. MS026 is a 5.8GHz microwave sensor with 0-10V output dedicated for highbay UFO and highbay linear
2. Build in with visible light and daylight sensors to detect the dusk and dawn for auto on at night and off at dawn.
3. Reinforce detection range antenna design with 13m highbay detection range, suitable for highbay UFO and linear highbay application.
4. IP65 rating for waterproof and wet location application.
5. MS026 is design with the standard ZHAGA Book18 interface socket for end user choose the sensor function and no sensor function, easy to plug installation when user wants the light with sensor function.
2. Build in with visible light and daylight sensors to detect the dusk and dawn for auto on at night and off at dawn.
3. Reinforce detection range antenna design with 13m highbay detection range, suitable for highbay UFO and linear highbay application.
4. IP65 rating for waterproof and wet location application.
5. MS026 is design with the standard ZHAGA Book18 interface socket for end user choose the sensor function and no sensor function, easy to plug installation when user wants the light with sensor function.
Product Description
Packing & Delivery
PVC bag and white blank box for customization
|
Quantity(pcs)
|
1-100
|
101-1000
|
1001-5000
|
>5000
|
|
Lead time (days)
|
3
|
7
|
14
|
To be negotated
|
