It has the feature of light weight, small volume, not easily broken, high mechanical strength, high pollution resistant, good aging resistance, high anti explosive and others.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

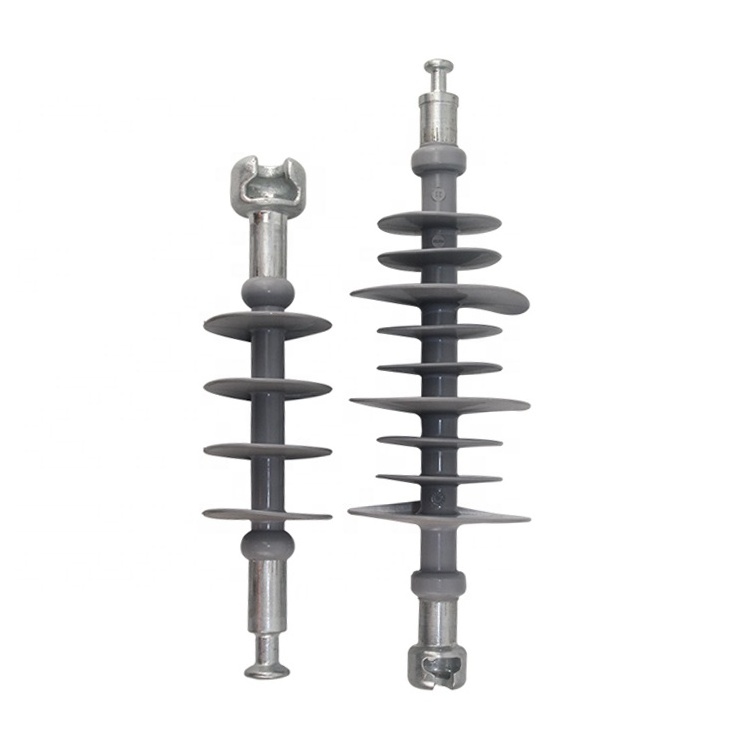

Pin Polymer Suspension Silicone Insulator Ball And Socket
-
Color:
-
Gray, red, blue or customized
-
Thickness:
-
Customer Demands
-
Diameter:
-
5-180mm Insulator core rod(epoxy resin rod)
-
Voltage:
-
10kv -750kv silicone rubber insulator
-
Insulator fittings:
-
Ball, Socket, Tongue, Clevis, Flange and so on
-
Feature:
-
Heat-Resistant, light weight, high mechanical strength, etc
-
Usage:
-
Electric Power
-
OEM:
-
Available
-
Sample:
-
Sample Available
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
THIM
-
Model Number:
-
Ball And Socket
-
Product name:
-
Pin Polymer Suspension Silicone Insulator Ball And Socket
-
Color:
-
Gray, red, blue or customized
-
Thickness:
-
Customer Demands
-
Diameter:
-
5-180mm Insulator core rod(epoxy resin rod)
-
Voltage:
-
10kv -750kv silicone rubber insulator
-
Insulator fittings:
-
Ball, Socket, Tongue, Clevis, Flange and so on
-
Feature:
-
Heat-Resistant, light weight, high mechanical strength, etc
-
Usage:
-
Electric Power
-
OEM:
-
Available
-
Sample:
-
Sample Available
Product Information
Composite Suspension Insulator
This product is especially suitable for polluted area, high mechanical tensile load and large span and compact line.
|
Type
|
No.
Of
Sheds
|
“X”
Length
inches
(mm)
|
Diameter
Inches
(mm)
|
Leakage Distance Inches (mm)
|
Dry Arc Distance inches (mm)
|
Lighting withstan voltage
|
Wet power frequency voltage
|
Coupling size
|
SML Pounds (kN)
|
|
|
|
|
D/d
|
|
|
|
|
|
|
|
FXBW-10/70
|
4
|
310
|
105/75
|
350
|
152
|
90
|
40
|
16
|
70
|
|
FXBW-36/40
|
9
|
440
|
130/90
|
950
|
320
|
230
|
150
|
16
|
40
|
|
FXBW-36/100
|
9
|
483
|
130/90
|
950
|
320
|
230
|
150
|
16
|
100
|
|
FXBW-35/70
|
12
|
660
|
135/110
|
1600
|
526
|
230
|
150
|
16
|
70
|
|
FXBW-35/100
|
12
|
680
|
135/110
|
1600
|
526
|
230
|
150
|
16
|
100
|
|
FXBW-66/70
|
20
|
980
|
135/110
|
2500
|
826
|
410
|
185
|
16
|
70
|
|
FXBW-66/100
|
20
|
1000
|
135/110
|
2500
|
826
|
410
|
185
|
16
|
100
|
|
FXBW-66/120
|
20
|
1040
|
135/110
|
2500
|
826
|
410
|
185
|
16
|
120
|
|
FXBW-110/70
|
26
|
1190
|
135/110
|
3500
|
1050
|
550
|
250
|
16
|
70
|
|
FXBW-110/100
|
26
|
1210
|
135/110
|
3500
|
1050
|
550
|
250
|
16
|
100
|
|
FXBW-110/120
|
26
|
1250
|
135/110
|
3500
|
1050
|
550
|
250
|
16
|
120
|
|
FXBW-220/120
|
54
|
2470
|
150/120
|
6300
|
2130
|
1000
|
395
|
16
|
120
|
|
FXBW-220/210
|
56
|
2470
|
170/120
|
6300
|
2155
|
1000
|
395
|
20
|
210
|
Product structure and advantages
Our company specially produces composite insulator for power transmission line, the important structure is made of shed housing, epoxy fiberglass core and metal end fittings.
The surface of terminal end fittings is covered with zinc coating(hot-dip galvanization) for corrosion protection.
Compared with same type ceramic and glass insulator, silicone rubber insulator has the following advantages:
（1）Small volume, light weight(is 1/7~1/10 times than ceramic insulator in the same voltage), sheds have good elasticity, not broken, convenient transportation and installation, economy.
（2）High mechanical strength. FRP ROD has high tensile strength, which is 5-10 times than ceramic materials, for core is small cross section, which makes the products small size, light weight, high tensile strength, and easy to manufacture more than 300KN large tons insulators.
（3）High antifouling property, good aging resistance performance, the sheds made of silicone rubber injection mold has good hydrophobicity and migration, which makes insulator high anti pollution flashover voltage and good electric corrosion resistance.
（4）Easy installation and maintenance, can greatly reduce outage loss which cause due to maintenance and maintenance charges which cause by manual labor intensity.
（5）Simple production process, short delivery time.
Detail Display
Composite Suspension Insulator——
Ball and Socket Insulator
①
Shed connected with core by integral forming
②
Metal end fittings, core and sheds connected by new crimping process
③
The thickness of housing > 3mm, uniform
thickness, confirm
to IEC Standard
④
Acid resistant, high temperature resistant of epoxy fiberglass core
⑤
The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating shedding when crimping, prolonging the service life of the product.
Product structure
1.Shed housing: Silicon rubber, composite polymer
2.Epoxy fiberglass core: Glass-fiber reinforced epoxy resin rod
3.Metal end fittings: Hot-dip galvanized steel
2.Epoxy fiberglass core: Glass-fiber reinforced epoxy resin rod
3.Metal end fittings: Hot-dip galvanized steel
Testing Equipment
Inspection instrument and equipment for composite insulator
We have a strict quality assurance system, first-class production equipment and inspection instrument, and multiple technical talented persons. The quality of our products accords with IEC,ISO,ASTM,ANSI,GB/T,Q/G-DW,JB/T,DL etc.
