Quick Details
-
Filling Accuracy:
-
1g
-
Voltage:
-
AC220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINBON
-
Dimension(L*W*H):
-
80x1000x1600mm
-
Weight:
-
100 KG
-
Product name:
-
Cake pizza coating machine
-
Keywords:
-
Cosmetic Fillng Machine
-
Usage:
-
Honey Paste Filling Machine
-
Advantage:
-
Efficiency
-
Material:
-
SUS 304
-
Filling nozzles:
-
1 Nozzle
-
Operation:
-
Automatic Operation
-
Suitable for:
-
High Viscous Products
-
Function:
-
Automatic Filler
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Filling Material:
-
Other
-
Filling Accuracy:
-
1g
-
Voltage:
-
AC220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SINBON
-
Dimension(L*W*H):
-
80x1000x1600mm
-
Weight:
-
100 KG
-
Product name:
-
Cake pizza coating machine
-
Keywords:
-
Cosmetic Fillng Machine
-
Usage:
-
Honey Paste Filling Machine
-
Advantage:
-
Efficiency
-
Material:
-
SUS 304
-
Filling nozzles:
-
1 Nozzle
-
Operation:
-
Automatic Operation
-
Suitable for:
-
High Viscous Products
-
Function:
-
Automatic Filler
Product Description

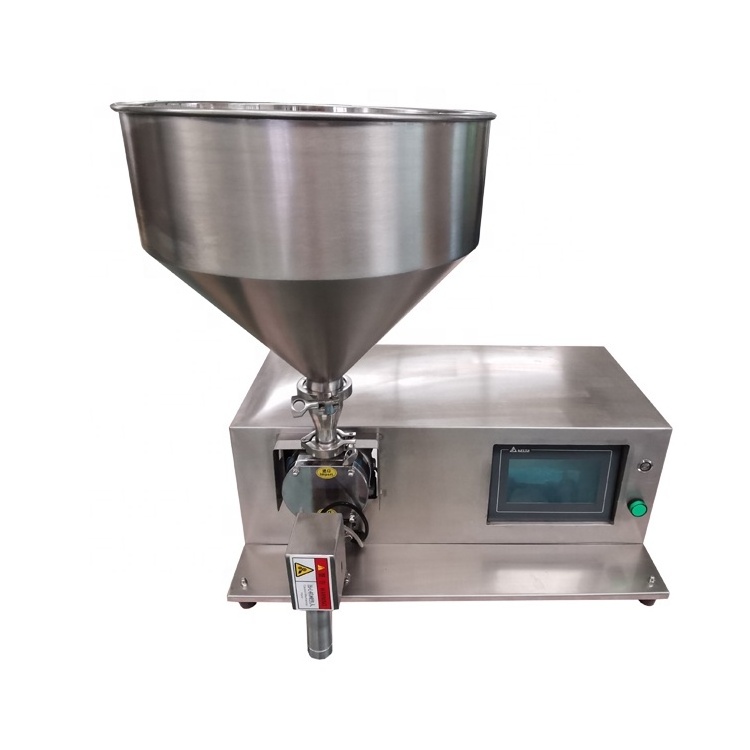

Honey paste Filling Machine Brief Introduction
The automatic honey paste filling machine is composed of touch screen, PLC, rotor pump, conveying system, movable bracket etc. It is a new type of automatic filling machine with small footprint and convenient movement newly developed by our company. The machine not only can work with user's existing production line to realize automatic production, but also can be used as a desktop automatic filling equipment; it can not only meet the needs of large-scale production in factories, but also meet the production needs of small batches such as laboratories or workshops. This is the machine with small size, strong functions and wide range of applications. A slight adjustment of the equipment according to the actual needs of users can meet the actual filling needs of users.
Features
Famous brand touch screen, PLC, motor, electrical components, etc. are used to ensure machine system can working stable in long-term. The touch screen interface is simple and intuitive, and the equipment can be used proficiently without professionals.
Fully automatic production, automatic bottle feeding, automatic bottle positioning, automatic filling, and automatic output of finished products; automatically stop filling when lack bottle or no bottle to avoid material waste.
The metering pump is equipped with a SUS304 rotor pump (SUS316 for option)
The filling volume setting and filling speed of each pump can be independently adjusted and set
The machine has a counting function, which is convenient for users to count the production capacity.
The filling system adopts anti-drip and anti-backflow design, which makes the filling more accurate.
The conveyor adopts chain design, which has strong loading capacity, wear-resistant, corrosion-resistant, durable, non-deformable and easy to clean. The filling and bottle moving are smooth and stable.
The conveyor is equipped with an independent speed control system, which is convenient for the speed adjustment to match with the front and rear production equipment.
The machine can be equipped with a screw capping/pressing capping device to realize automatic filling and capping, which greatly saves labor costs.
This machine can be equipped with dust cover, it is optional functions and need custom made machine.
The whole machine is made of stainless steel 304, and the stainless steel surface is more beautiful by wire drawing processing,
easy to clean and sterilize without hygienic dead ends, and meets the requirements of HACCP and GMP in the food and medical industry.
Application
It is suitable for quantitative dispensing of fluids and semi-fluids of various viscosity values and materials containing solid
particles, especially for high-viscosity materials such as honey, chocolate, silica gel, glue, butter, etc.
It is widely used for quantitative packaging in the food and daily chemical industries, such as yogurt, sesame paste, mashed potatoes, salad dressing, cheese, eight-treasure porridge, jelly jam, cosmetics, ice cream, sauces, hand creams, shampoo, shower gel etc.
It inject food material into bread core, puffs, etc. by replacing the discharge nozzle, which is suitable for bakeries, cake
houses, western restaurants, coffee shops, food processing factories, etc.; it can also coat products such as cakes with cream, etc. or Do pastry decorations, etc.
particles, especially for high-viscosity materials such as honey, chocolate, silica gel, glue, butter, etc.
It is widely used for quantitative packaging in the food and daily chemical industries, such as yogurt, sesame paste, mashed potatoes, salad dressing, cheese, eight-treasure porridge, jelly jam, cosmetics, ice cream, sauces, hand creams, shampoo, shower gel etc.
It inject food material into bread core, puffs, etc. by replacing the discharge nozzle, which is suitable for bakeries, cake
houses, western restaurants, coffee shops, food processing factories, etc.; it can also coat products such as cakes with cream, etc. or Do pastry decorations, etc.
Specification
|
Model No.
|
|
YH-500
|
|
|
|||
|
Filling Range
|
|
150-50000ml
|
|
|
|||
|
Best Filling Accuracy
|
|
± 1-2% （Filling volume, product status, speed will affect accuracy）
|
|
|
|||
|
Production Capacity
|
|
1-60BPM
|
|
|
|||
|
Pump Type
|
|
Rotor Pump (SUS304)
|
|
|
|||
|
Nozzle Quantity
|
|
1pcs
|
|
|
|||
|
Belt Width
|
|
80mm
|
|
|
|||
|
Conveyor Length
|
|
1300mm
|
|
|
|||
|
Hopper
|
|
20L
|
|
|
|||
|
Air Source
|
|
0.4-0.6Mpa
|
|
|
|||
|
Power Source
|
|
AC220V;50HZ;1P
|
|
|
|||
|
Working Mode
|
|
Automatic/Semi-auto
|
|
|
|||
|
Display
|
|
Touch Screen
|
|
|
|||
|
Material
|
|
Stainless steel 304
|
|
|
|||
Main Parts
|
Part Name
|
|
Brand/Origin
|
|
|
|||
|
Touch Screen
|
|
Delta/Taiwan, China
|
|
|
|||
|
PLC
|
|
Delta/Taiwan, China
|
|
|
|||
|
Servo Driver
|
|
Delta/Taiwan, China
|
|
|
|||
|
Servo Motor
|
|
Delta/Taiwan, China
|
|
|
|||
|
Power Supply Unit
|
|
Delta/Taiwan, China
|
|
|
|||
|
Rotor Pump
|
|
Sinbon/Hongkong, China
|
|
|
|||
|
Stepper motor
|
|
ZD/Taiwan, China
|
|
|
|||
Packing & Delivery
WOODEN CASE +CARTON BOX
