Quick Details
-
Voltage:
-
380V/3Phase/50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JZJ
-
Model Number:
-
JZJ-8000-EU
-
Warranty:
-
1year
-
Outside size:
-
7006*5360*3420mm
-
Inner size:
-
6900*4000*2650mm
-
Wall panels:
-
50mm
-
Thickness:
-
0.426mm
-
Heating type:
-
riello G20
-
Spraying booth:
-
SUS304
-
Burner:
-
Light oil burner
-
Light system:
-
lamps
-
Wall panel:
-
EPS
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth
Quick Details
-
Power:
-
19KW
-
External Size:
-
7006*5360*3480(L*W*H)
-
Internal Size:
-
6900*4000*2650(L*W*H)
-
Voltage:
-
380V/3Phase/50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JZJ
-
Model Number:
-
JZJ-8000-EU
-
Warranty:
-
1year
-
Outside size:
-
7006*5360*3420mm
-
Inner size:
-
6900*4000*2650mm
-
Wall panels:
-
50mm
-
Thickness:
-
0.426mm
-
Heating type:
-
riello G20
-
Spraying booth:
-
SUS304
-
Burner:
-
Light oil burner
-
Light system:
-
lamps
-
Wall panel:
-
EPS
-
Environmental certificate:
-
CE Approved Cabinet Spray Booth

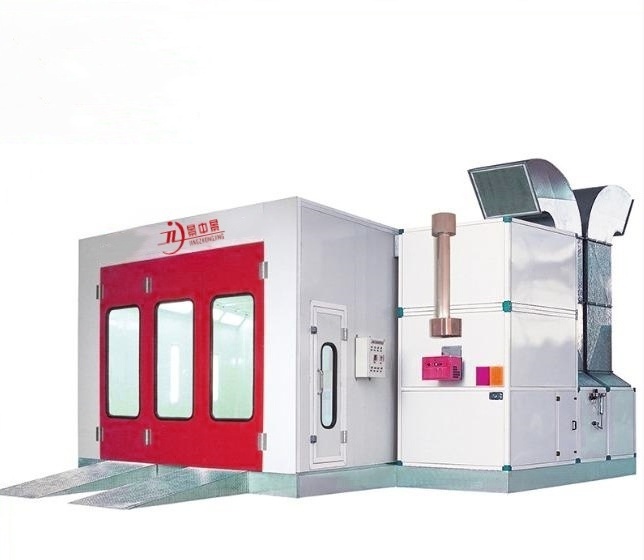

Product Description
Product parameters
|
Model: JZJ-8000-EU
|
|
|
|
|||
|
Outside Dimension (mm)
|
7006*5360*3480(L*W*H)
|
Inside Dimension(mm)
|
6900*4000*2650(L*W*H)
|
|||
|
Front Door(mm)
|
3000*2600(W*H)
|
Service Door (mm)
|
800*2000(W*H)
|
|||
|
Total Power
|
19KW
|
Total Weight(Ton)
|
3.8
|
|||
|
Cabin System
|
Wall panel
|
50mm EPS sandwich panel, steel sheet thickness: 0.426mm
|
|
|||
|
|
Ceiling panel
|
0.8mm galvanized steel sheet.
|
|
|||
|
|
Ramps
|
3 pieces 2000*900mm ramps
|
|
|||
|
|
Basement
|
300mm depth, two rows grids and three rows checkered plates.
|
|
|||
|
|
Glass
|
5mm safety tempered glass
|
|
|||
|
|
Windows
|
Square glass windows
|
|
|||
|
Air Make-up System
|
Air inlet fan system
|
1*7.5kw turbo fan ,proof-explosion ABB/Simens motor
|
|
|||
|
|
Exhausted fan system
|
1*7.5kw turbo fan ,proof-explosion ABB/Simens motor
|
|
|||
|
|
Air capacity
|
25000m3/h
|
|
|||
|
|
Exhausted ducting
|
8 meters air duct,one flop damper and one weather hood |
|
|||
|
Purification System |
Pre-filter
|
G3 grade
|
|
|||
|
|
Ceiling filter
|
EU5 / F5
|
|
|||
|
|
Floor filter
|
Green fiber glass filter / G3 grade
|
|
|||
|
|
Exhausted fan filters
|
Fiber glass filter and active carbon
|
|
|||
|
Heating System
|
Heat exchanger
|
SUS304 material, argon arc welding.
|
|
|||
|
|
Heating burner:
|
Riello diesel burner
|
|
|||
|
|
Heating productivity
|
180000Kcal/h |
|
|||
|
|
Spray to baking switch
|
20N Belimo brand electric damper
|
|
|||
|
|
Chimney ducting
|
3 meters stainless ducting and one chimney cap
|
|
|||
|
|
Max heating temperature
|
80℃
|
|
|||
|
|
fuel consumption
|
5-6L/vehicle
|
|
|||
|
Lighting System
|
Ceiling lights
|
8 Units, each 4 * 18W LED lamps. Total 576 W
|
|
|||
|
|
Side lights
|
8 Units, each 2 * 18W LED lamps. Total 288 W
|
|
|||
|
|
Illumination
|
900LUX
|
|
|||
|
Controlling System
|
Switched control panel
|
Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm
|
|
|||
