Quick Details
-
Power:
-
STANDARD, Diesel,Gas, Battery, Electricity Optional
-
Min. Lifting Height:
-
As Per Model Number
-
Table Size:
-
900*700mm or 1200*800mm
-
Overall Dimensions:
-
As per model number
-
Weight:
-
2800 kg
-
Working Radius:
-
9.5m
-
Support Legs:
-
Hydraulic/4
-
Emergency Decline System:
-
Yes
-
Moving Mode:
-
By Tractor with retractor
-
Travel Speed:
-
Max 90Km/h
-
Control Panel:
-
Upper& Under
-
Turning Degree:
-
360°
-
Surface Treatment:
-
Plastic Spraying
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAVAC
-
Power:
-
STANDARD, Diesel,Gas, Battery, Electricity Optional
-
Min. Lifting Height:
-
As Per Model Number
-
Table Size:
-
900*700mm or 1200*800mm
-
Overall Dimensions:
-
As per model number
-
Weight:
-
2800 kg
-
Working Radius:
-
9.5m
-
Support Legs:
-
Hydraulic/4
-
Emergency Decline System:
-
Yes
-
Moving Mode:
-
By Tractor with retractor
-
Travel Speed:
-
Max 90Km/h
-
Control Panel:
-
Upper& Under
-
Turning Degree:
-
360°
-
Surface Treatment:
-
Plastic Spraying

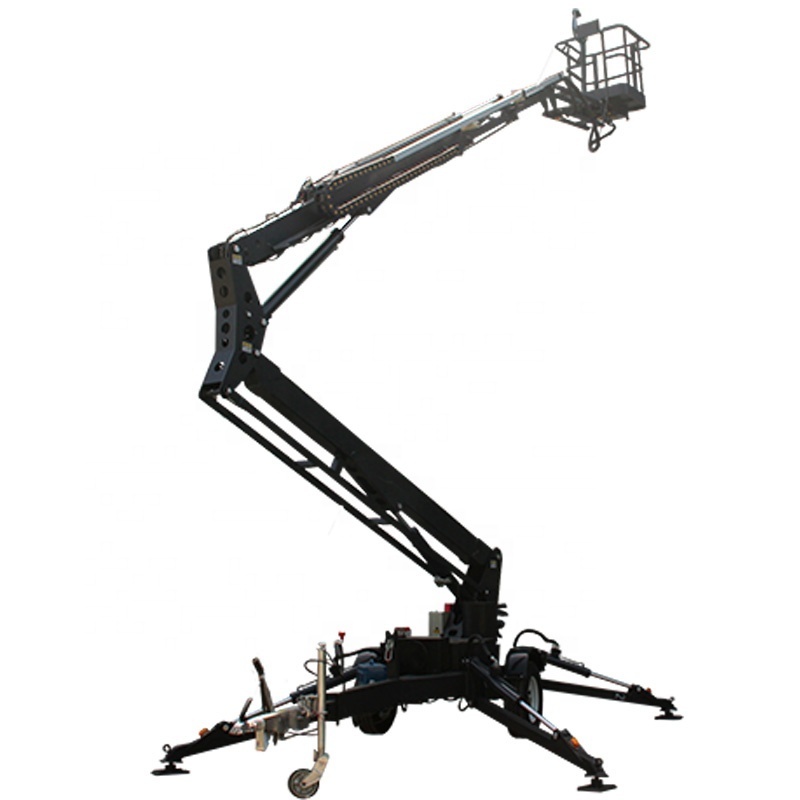

Towable Articulated boom lift is one of the most ideal aerial lift platform for both indoors and outdoors maintenance work. It can rotate 360 degree in the air and platform height is from 8m to 20m. Articulated boom lift is driven by Diesel,Gas, or Battery or confused Power. It is widely used in neighborhood unit, road light maintenance, factories high place maintenance, construction site and so on.
|
Model Type |
TBL-12 A |
TBL-14 A |
TBL-16 A + Telescopic |
TBL-18 A + Telescopic |
TBL-20 A + Telescopic |
TBL-2 2A + Telescopic |
TBL-2 4A + Telescopic |
|
Working height |
12M |
14M |
16M |
18M |
20M |
2 2 M |
2 4 M |
|
Lifting height |
1 0 M |
1 2 M |
1 4 M |
16 M |
18 M |
20 M |
22 M |
|
Load capacity |
200KG |
||||||
|
Platform size |
0.9*0.7M or 1.2*0.8M optional free |
||||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
1 1 M |
1 1 M |
12 M |
|
Net Weight |
1855 KG |
2 050 KG |
2 300 KG |
2 500 KG |
3000 KG |
4300KG |
4500KG |
|
Overall Size( L*W*H) |
5.2 *1.7*2.1M |
6.2 *1.7*2.1M |
5.55 *1.7*2.1M |
5.7 *1.7*2.2M |
6.5 *1.8*2. 3 M |
5.5 *1. 8 *2. 3 M |
5.5 *1. 8 *2. 3 M |
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
Towable Articulated boom lift moves by tractor towing and lifts by diesel, gas or battery power. Operator can control lifting and lowering both on the platform and on the ground through the control system.
Safety Precautions:
1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve
4. Check Valve 5. Adjustment Valve 6. Gradienter
