- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingshi
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
3200*2200*1500mm
-
Weight (KG):
-
850
-
Working area:
-
1300x2500mm
-
Spindle:
-
3.2kw Water Cooling Spindle
-
Control system:
-
DSP A11 Control System
-
Transmission:
-
Gear Rack
-
Inverter:
-
Fuling Inverter
-
Table Surface:
-
T-slot Aluminum +PVC
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Motor and driver:
-
Leashine Stepper Motor Driver
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingshi
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
3200*2200*1500mm
-
Weight (KG):
-
850
-
Working area:
-
1300x2500mm
-
Spindle:
-
3.2kw Water Cooling Spindle
-
Control system:
-
DSP A11 Control System
-
Transmission:
-
Gear Rack
-
Inverter:
-
Fuling Inverter
-
Table Surface:
-
T-slot Aluminum +PVC
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Motor and driver:
-
Leashine Stepper Motor Driver
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Working Voltage:
-
AC220V/AC380/50HZ/60HZ

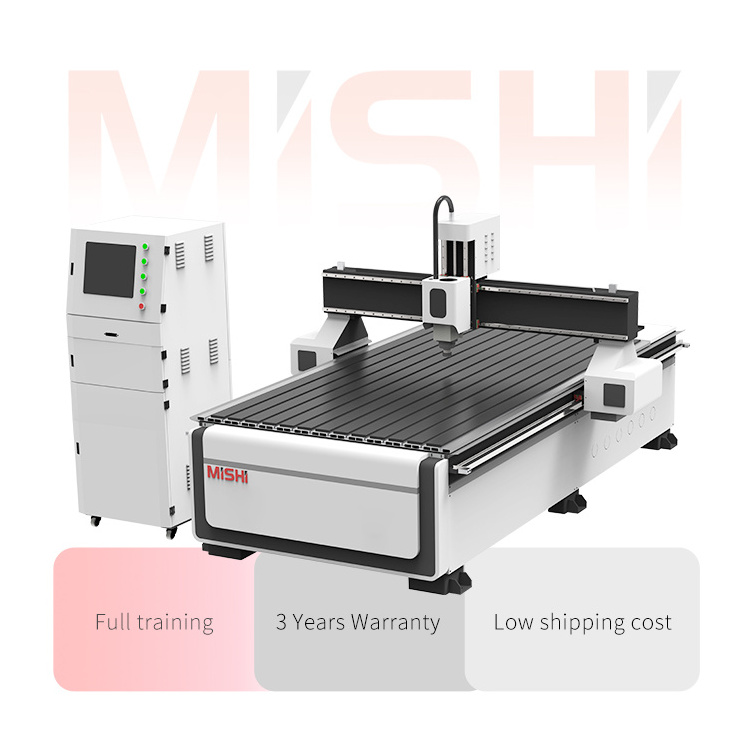

Product Show
Technical Parameters
|
Machine Type
|
1325 Single Head CNC Router Woodworking Machine
|
|
Table Size
|
1300*2500mm
|
|
Countertop Structure
|
Aluminum Profile Counter Top
|
|
Work Plan
|
1300*2500*200mm
|
|
Bed Structure
|
Welded Steel
|
|
XYZ Transmission
|
XY Helical Rack Drive, Z Screw Drive
|
|
Guide
|
20 Square Rail
|
|
Maximum Empty Travel Speed
|
17000mm/min
|
|
Working Speed
|
15000mm/min
|
|
Spindle Power
|
3.2 kw JST Water Cooling spindle
|
|
Spindle Speed
|
0-24000rmp
|
|
Motor
|
Leadshine 860
|
|
Operating Voltage
|
AC220V/380V, 50HZ
|
|
Run Command
|
G Code
|
|
Operating System
|
DSP/NC Studio
|
|
Distribution Cabinet
|
Independent Cabinet
|
|
Support Software
|
Type 3,Artcam,JD
|
|
Assist
|
Dust Hood, Dust Tube
|
Detailed Images
Product Description
(1) Machine body design with high strength and double driving motors of Y axis, which have more reaso-nable design, fast processing speed, easy-operated maintenance, and low fault rate.
(2) Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
(3) Imported and high precision linear guide rails have features such as stable operation, high precision, and steady support, which prolong the service life of machines.
(4) Z-axis adopts imported ball screw with industrial level can positioning accurately and make processi-ng effects more perfect.
(5) Energy-saving vacuum absorption table function and dust collectors can protect the environment.
(6) Software has good compatibility. The machine can be compatible with various CAD/CAM designs & making software such as TYPE3, Artcam, JD, UG, MasterCAM, PowerMill, and So on.
Application
Woodworking
Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
Advertisement
Engraving and cutting various labels and number plates.
Art craft
Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs st-air railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable materials
Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials.
After sales service
We have professional pre-sales and after sales service Mingshi CNC team
1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free o nline technical support and install train.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free o nline technical support and install train.
Shipping and Packing
Packaging Details
1. Outside package: Standard export plywood case for CNC Router for advertising.
2. Inner package: Stretch film and plastic film for humidity.
Port
Qingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
Jinan Mingshi Machinery Equipment Co., Ltd
Our company established in 2010, we have 11 years experience in CNC Router and Industrial laser equipment integrating R&D, design, sales and production.
We have CE and SGS certification, units that value quality and keep promises.
We have CNC router, wood router, fiber laser cutting machine and industrial laser equipment.
Team
We have profession technical and sale man, participates in more than 50 large-scale industrial exhibitio-ns at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has modern workshop. There are about 100 pr-oduction technical personnel and more than 15 research personnel.
We have CE and SGS certification, units that value quality and keep promises.
We have CNC router, wood router, fiber laser cutting machine and industrial laser equipment.
Team
We have profession technical and sale man, participates in more than 50 large-scale industrial exhibitio-ns at home and abroad, showing machines to more than 30,000 potential customers.
Factory
Our factory covers an area of 10000 square meters and has modern workshop. There are about 100 pr-oduction technical personnel and more than 15 research personnel.
Q: How to install and maintain the machine?
A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.
Q: What are the machine working environment requirements?
A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?
A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?
A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
