Quick Details
-
Model Number:
-
VD01Y-B3
-
Warranty:
-
2 years
-
Type:
-
Hand Sensor Module, ir sensor switch
-
Power:
-
12V/36W;24V72W, 12V/36W;24V72W
-
Sensing Range:
-
<8 CM
-
Product Name:
-
Hand Sensor Module
-
Input/Output:
-
DC5V/12V/24V
-
Indicator Light:
-
Warm White
-
Dimming level:
-
on / off
-

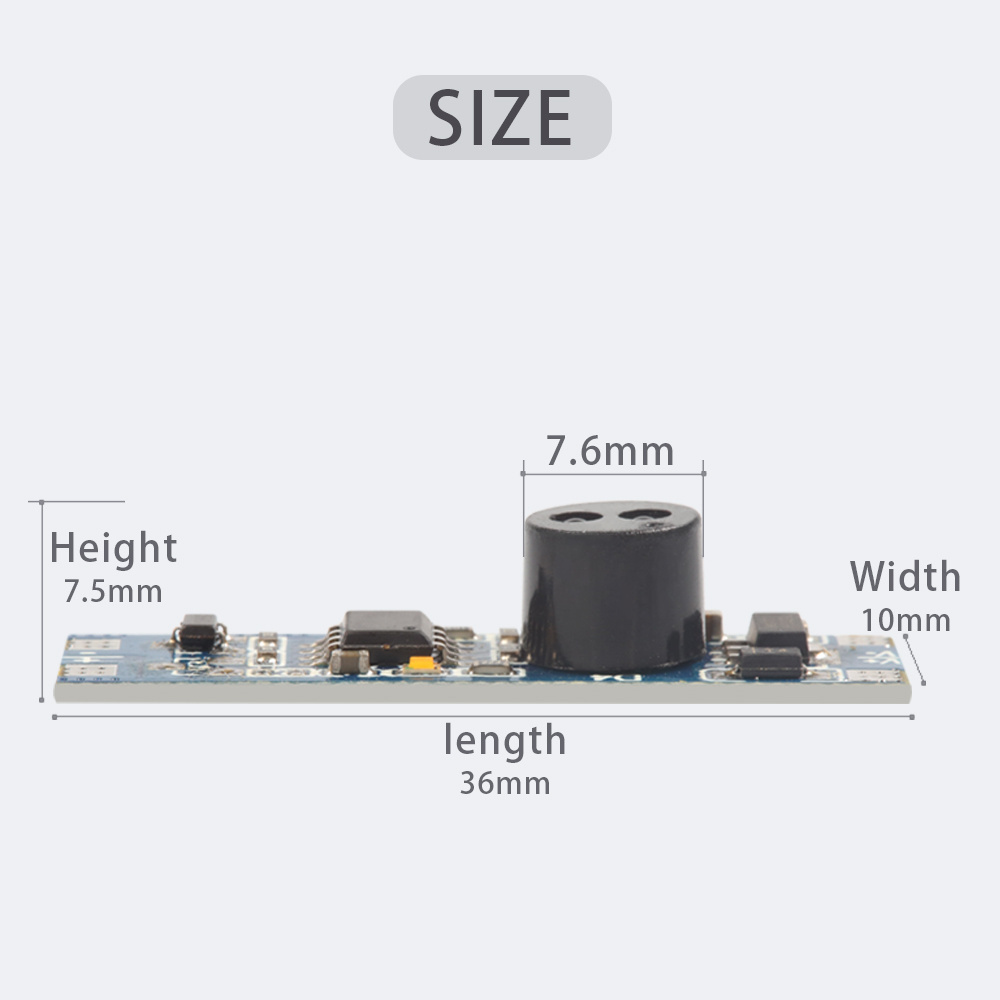

product size:
-
36*10*1.0mm
-
Detection Range:
-
<8 cm
-
Application:
-
LED strip / aluminum strip
-
warranty period:
-
2year
-
Certification:
-
CE/ROHS/FCC
Quick Details
-
Voltage:
-
DC5V/12V/24V
-
Place of Origin:
-
GUA
-
Brand Name:
-
FICLUX
-
Model Number:
-
VD01Y-B3
-
Warranty:
-
2 years
-
Type:
-
Hand Sensor Module, ir sensor switch
-
Power:
-
12V/36W;24V72W, 12V/36W;24V72W
-
Sensing Range:
-
<8 CM
-
Product Name:
-
Hand Sensor Module
-
Input/Output:
-
DC5V/12V/24V
-
Indicator Light:
-
Warm White
-
Dimming level:
-
on / off
-
product size:
-
36*10*1.0mm
-
Detection Range:
-
<8 cm
-
Application:
-
LED strip / aluminum strip
-
warranty period:
-
2year
-
Certification:
-
CE/ROHS/FCC
*
The VD01 series
hand sweep
contactless
sensor
is designed for switching on / off and dimming
12/24 V
LED strips insta
lled in an aluminu
m profile. The device is controlled without direct physical contact using a palm movement. The display is carried out using an LED with a color temperature of
3000K in the OFF state
.
*
To function properly the IR sensor must be open and exposed with no plastic cover over top.
Brief description and functionality of VD01:
* small dimensions, high sensitivity sensor, with stable operation through the diffuser at a distance of up to 8 cm. (Need to drill the diffuser)
* very easy installation of the switch on an adhesive base on a profile;
* wide contact pads for soldering;
* LED light indicator that indicates the device status, color temperature no indicator-light on, 3000K-off;
* dimming function with last state memory.
When the voltage is applied, the device is set to standby mode. The lighting is turned off, and the indicator LED glows warm white.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the area of the indicator. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Attention! Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
* small dimensions, high sensitivity sensor, with stable operation through the diffuser at a distance of up to 8 cm. (Need to drill the diffuser)
* very easy installation of the switch on an adhesive base on a profile;
* wide contact pads for soldering;
* LED light indicator that indicates the device status, color temperature no indicator-light on, 3000K-off;
* dimming function with last state memory.
When the voltage is applied, the device is set to standby mode. The lighting is turned off, and the indicator LED glows warm white.
Switching on and off is carried out by a single raising of the hand to the place of installation of the switch in the area of the indicator. Dimming of lighting occurs when you hold your hand in the glow area of the switch indicator.
Attention! Do not use acidic fluxes for soldering! This puts the device out of service and is not a warranty case!
|
Product Name
|
Hand Sensor Module
|
|
|
|
Model No
|
VD01Y-A3
|
VD01Y-B3
|
|
|
Function
|
Hard on/off+ Dimming
|
Fade on/off +Dimming
|
|
|
Input/Output
|
DC5V/12V/24V
|
|
|
|
Power
|
12V/36W;24V/72W
|
|
|
|
Current
|
3A Max
|
|
|
|
Product Size
|
36*10*1.0mm
|
|
|
|
Detection range
|
< 8cm
|
|
|
|
Indicator light
|
Warm White
|
|
|
|
Warranty Period
|
2years
|
|
|
ATTENTION!
Install, connect, and maintain the switch only when the power is turned off.
ATTENTION!
Do not use acidic fluxes for solderin
g! This
puts the device out of service and is not a warranty case!
