G70 Heavy duty iron link chain / Tow chain tie down binder chain flat bed

G70 Heavy duty iron link chain / Tow chain tie down binder chain flat bed

FOB Reference Price: Get Latest Price

≥100 Meters

US $50.83

≥500 Meters

US $49.42

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Z2Lifting

Model Number:: 1/4"~3/4"

Product name:: Grade 70 Binder Chain

Surface treatment:: Gold Galvanized

Application:: Cargo Tie Down

Size:: Standard Size

Type:: USA Standard

Packing:: Normally Iron Barrel

Quick Details

Finish:: Yellow Chromat

Structure:: Welded Chain

Place of Origin:: China(Mainland)

Brand Name:: Z2Lifting

Model Number:: 1/4"~3/4"

Product name:: Grade 70 Binder Chain

Surface treatment:: Gold Galvanized

Application:: Cargo Tie Down

Size:: Standard Size

Type:: USA Standard

Packing:: Normally Iron Barrel

Product Description

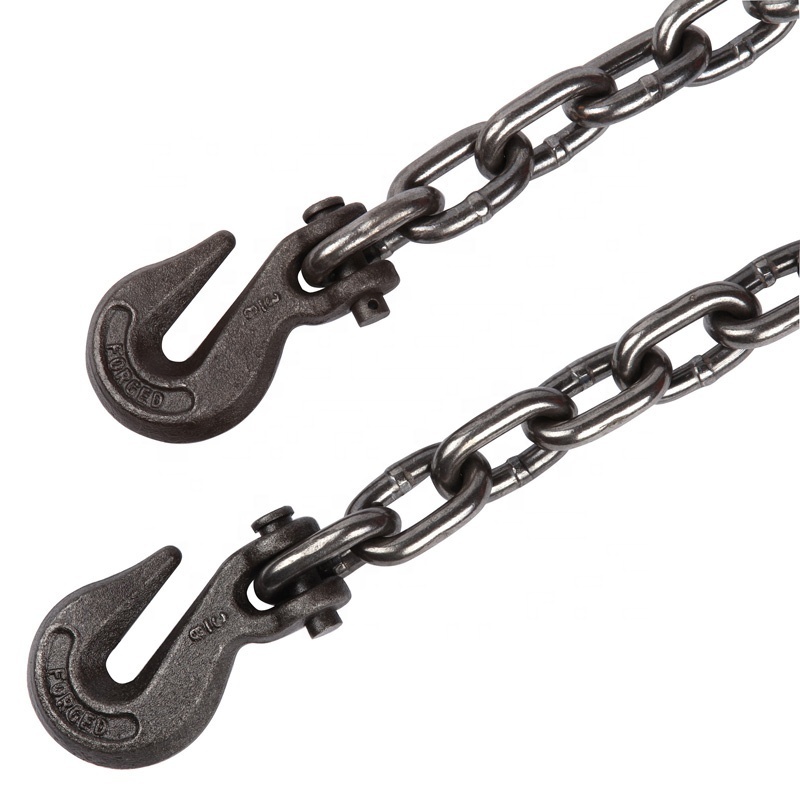

Heavy duty Grade 70 Transport Chain

is made using high-strength, low-alloy carbon steel and coated with a yellow zinc chromate finish for corrosion protection and quick identification as grade 70 tie down chains. The high quality, standard link chain is heat-treated, and strength tested for superior quality.
All our grade 70 chains are embossed with the proper markings to meet NACM standards. Fitted with forged carbon steel clevis grab hooks attached at both ends.

· Grade 70 Transport Chain is used for load securement and binding applications designed specifically to provide a light, yet strong chain for binding, tie-downs, towing and construction use. Yellow Zinc is induction heat treated, the chain meets all requirements set by the Department of Transportation (DOT), CCMTA & CVSA for truck tie-down use.

· Grade 70 Chain is used in the following industries: Agriculture & Forestry, Construction, Bridge Builders, Highway and Street, Military, Transportation & Utilities - Power, Water, Sewer & Pipe.

G70 binder chain is NOT TO BE USED FOR for OVERHEAD LIFTING.

SIZE (IN-MM)	WLL(LBS)	PITCH(MM)	INSIDE WIDTH (MM)	BREAKING FORCE(LBS/KN)
1/4"-7	3150	31.5	9.8	12600/56
5/16"-8	4700	32.8	11.2	18800/83.6
3/8"-10	6600	35	14	26400/117.4
7/16"-11	8750	41.6	16.6	35000/155.4
1/2"-13	11300	45.5	18.2	45200/200.8
5/8"-16	15800	56	20	63200/280.8
3/4"-20	24700	70	25	98800/439.2

Production Area

Raw material Area

Forming : be formed to the required dimension. Z2 self-designed bending macine series for 3mm to 25mm chain.

Welding : The weld was produced using the resistance butt processes and positioned in the center of one leg of the link.

Calibrating : All links has beed calibrated before heat treatment.

Heat treatment : All the chain has been intermediate-frequency heat treated.

Proof testing : All the chain has been subjected to the manufacturing proof force test specified as standard.

Stamping Area

Final Examination

Detailed Images

Usage

Packing&Shipping

Indivisual plastic bag

Carton

Iron drum

Company Introduction

Hangzhou Zhezhong Chain Co.,Ltd (Z2 CHAIN) established in Hangzhou City of China in 2006. We focuses on manufacturing G80 and higher level welded lifting chain. Our main products are G80 and 100 lifting chain based on EN818-2 standard and load chain.We have the most advanced automatic machines industry, and senior engineering group that all had decades of years experience. Based on the good machines, skilled engineers, strict quality control systems and excellent management group, Z2 CHAIN is producing and had already supplied quantity of high quality chains.

Z2LIFTING is a group of Hangzhou Zhezhong Chain Co. and Ruby Imp 7 Exp Co. We located in Hangzhou City of China. Our Business focuses on the manufacturing & supplying the high quality of lifting, rigging, material handing & marine equipments. To ensure safety and meet customers' satisfaction, Z2LIFTING always pay great attention to inspection and delivery. Our aim is not only to be a trader in lifting area, but effort to help our customer grow and build safety and long-term business in their markets.

Our Services & Strength

· Z2Lifting has a professional quality inspection group and a set of quality control system. We can also provide quality test certificates to customers.

· Z2Lifting has a firm certificate. It's certificated by GB/T 19001-2016/ ISO 9001:2015

Sample Room

Exhibition

CHINA HOMELIFE POLAND 2015

NATIONAL HARDWARE SHOW 2018

ASIA-PACIFIC SOURCING 2019

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory . We have more than 13 years experience.

Q: How long is your delivery time?
A: Generally it is 30-45 days.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight. But the freight cost can be reduced in later orders.

Q: What is your terms of payment ?
A: T/T in advance, balance before shipment. Or L/C

Q: What is your general international express?
A: We usually cooperate with F edEx, DHL, UPS, EMS express.

If you have another question, pls feel free to contact us as below:
