Quick Details
-
Voltage:
-
380V
-
Product name:
-
Welding Positioner Turntable
-
Application:
-
Rotate/overturn welding work piece
-
Function:
-
Automatic Lifting, Tilting and Rotating
-
Operate:
-
Remote controller/foot pedal
-
After-sales Service Provided:
-
Spare Parts Video Technical Support
-
Table diameter:
-
1000mm
-
Loading:
-
1200kgs
-
Angle:
-
0-120°
-
Adjusting Speed Way:
-
Frequency Stepless Speed Adjust
-
Rotation speed:
-
0.1-1Rpm/Min
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
China
-
Weight (KG):
-
900
-
Voltage:
-
380V
-
Product name:
-
Welding Positioner Turntable
-
Application:
-
Rotate/overturn welding work piece
-
Function:
-
Automatic Lifting, Tilting and Rotating
-
Operate:
-
Remote controller/foot pedal
-
After-sales Service Provided:
-
Spare Parts Video Technical Support
-
Table diameter:
-
1000mm
-
Loading:
-
1200kgs
-
Angle:
-
0-120°
-
Adjusting Speed Way:
-
Frequency Stepless Speed Adjust
-
Rotation speed:
-
0.1-1Rpm/Min
Product Description

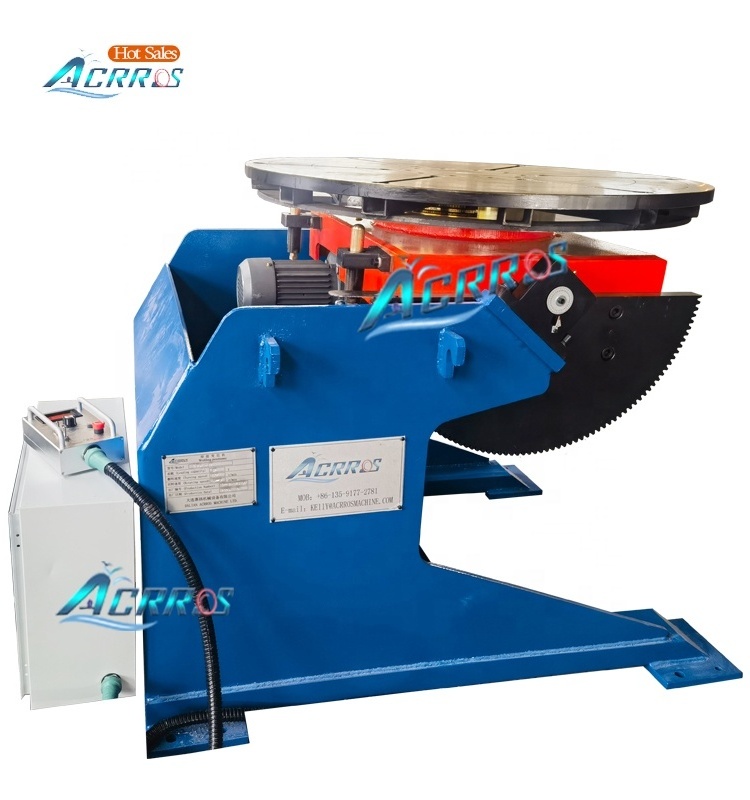

Welding Positioner Turntable
The seat-type positioner is composed of a rotating mechanism, a turning mechanism, a frame, and an electronic control system.
It rotates and flips the worktable to make the workpiece in the optimal welding or assembly position.
Feature
Welding Positioner Turntable
1. Variable frequency stepless speed regulation.
2. Can turning freely.
3. Wide applicability.
4. The work surface is made by precision machining of castings, which is not easy to be damaged by welding spatter.
5. The body adopts a seat structure, and the overall stability of the equipment is good.
3. Wide applicability.
4. The work surface is made by precision machining of castings, which is not easy to be damaged by welding spatter.
5. The body adopts a seat structure, and the overall stability of the equipment is good.
Detailed Images
Size Information
WELDING POSITIONER TURNTABLE
*The rotation of the worktable adopts stepless speed regulation by frequency conversion.
*The worktable is driven to tilt by sector gear or hydraulic cylinder.
*The rotation angle of the worktable is 0 ~ 120 °.
*It can realize joint control with an operation machine or welding machine.
*The control system can be configured with three types of configurations: push-button digital control, switch digital control, and switch relay control
*The worktable is driven to tilt by sector gear or hydraulic cylinder.
*The rotation angle of the worktable is 0 ~ 120 °.
*It can realize joint control with an operation machine or welding machine.
*The control system can be configured with three types of configurations: push-button digital control, switch digital control, and switch relay control
Size Chart of This Design
|
Model
|
Loading
|
Rotation Speed
|
Turning Angle
|
Table Diameter
|
Eccentricity Distance
|
|
AWP-1200KG
|
1200kgs
|
0.1-1R/Min
|
0-120°
|
1000mm
|
150mm
|
|
AWP-2000KG
|
2000kgs
|
0.1-1R/Min
|
0-120°
|
1200mm
|
150mm
|
|
AWP-3000KG
|
3000kgs
|
0.06-0.6R/Min
|
0-120°
|
1400mm
|
200mm
|
|
AWP-5000KG
|
5000kgs
|
0.05-0.5R/Min
|
0-120°
|
1600mm
|
200mm
|
|
AWP-10Ton
|
10Ton
|
0.0.5-0.5R/Min
|
0-120°
|
2000mm
|
200mm
|
Manufacture Specification
The
welding positioner
is a practical auxiliary positioner.
It is mainly used in workplaces such as welding of steel structures and assembly of mechanical parts. It is widely used in the manufacturing industry of various steel structures such as flanges,pipe joints, etc.
It can also be used as peripheral equipment and a robot to achieve automatic welding.
It is one of the commonly used equipment in modern pipeline, container, and steel structure manufacturing enterprises
Best Selling
Recommending Styles
【Warranty
WELDING POSITIONER TURNTABLE
】
We provide 1 YEAR warranty for every our customer. If you have any questions, please feel free to contact us directly. We will give you a reply as soon as possible.
If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB:+86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-86-159-4081-4820
WECHAT:+86-86-159-4081-4820
Company Introduction
Dalian Acrros Machine Co, Ltd has focused on introducing and cultivating high-tech talents and takes it as development
strategy. Acrros have been specialized in manufaturing welding positioners for more than 15 years.
strategy. Acrros have been specialized in manufaturing welding positioners for more than 15 years.
All of its welding positioner are certificated approved and exported all over the world. ACRROS is getting great reputation for its great quality and service.
Welding positioners are the machines be used to change the position of work piece on the welding positioner turntable and to ensure smooth rotation of the work piece at certain required speed. So welding postitioner normally means a table rotates workpiece at certain rotation speed, optional torch holder, tailstock, pipe bracket etc.
ACRROS can be your loyal friends, we can establish our own national brand and witness prosperous future harmonious world.
Our Services & Strength WELDING POSITIONER TURNTABLE
Advantages
：Frequency conversion stepless speed regulation, free to flip, wide applicability.
Scope of Application： Applied to a variety of welding shaft, disk, cylinder of the rotating body of the workpiece.
Brief Intro: Through the rotation and flipping of the worktable, the workpiece is in the optimal welding or assembly position.
Scope of Application： Applied to a variety of welding shaft, disk, cylinder of the rotating body of the workpiece.
Brief Intro: Through the rotation and flipping of the worktable, the workpiece is in the optimal welding or assembly position.
If you interested in our products,Please dont hesitate to contact us for inquiry,
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
DALIAN ACRROS MACHINE CO.,LTD.
Ms.Belinda Acrros _ Manager
E-MAIL: Belinda @ acrrosmachine.com
MOB:+86-159-4081-4820
WHATSAPP:+86-159-4081-4820
WECHAT:+86-86-159-4081-4820
WECHAT:+86-86-159-4081-4820
FAQ
Q: Can I get some samples?
A: Yes, sample orders welcomed.
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
A: Yes, sample orders welcomed.
Q: Could I use my own logo or design the items?
A: Yes, customized logo and design on mass production are available,.
Q: Why do I trust you?
A: We are "Alibaba" verified supplier and we have high quality goods and service.
Q: What is your shipping item ?
A:
1. By Couriers: DHL/UPS/FEDEX/TNT to your address directly.
2. By Sea: Delivery to your sea port.
3. To your agent: Delivery to your China agent.
