Quick Details
-
Dimension(L*W*H):
-
70*38*42 cm
-
Weight:
-
46KG
-
Work pressure:
-
30Mpa Mpa(300bar)
-
Displacement:
-
100L/min
-
Lubrication method:
-
Splash lubrication
-
Control method:
-
Manual shutdown
-
Inflation speed:
-
6 ltr bottle 30Mpa about 22 min
-
Safety devices:
-
Interval installation valve
-
Clean air:
-
1 oil-water separation
-
Certified product:
-
CE certification, MA test report
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
HBBC-100
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
70*38*42 cm
-
Weight:
-
46KG
-
Work pressure:
-
30Mpa Mpa(300bar)
-
Displacement:
-
100L/min
-
Lubrication method:
-
Splash lubrication
-
Control method:
-
Manual shutdown
-
Inflation speed:
-
6 ltr bottle 30Mpa about 22 min
-
Safety devices:
-
Interval installation valve
-
Clean air:
-
1 oil-water separation
-
Certified product:
-
CE certification, MA test report

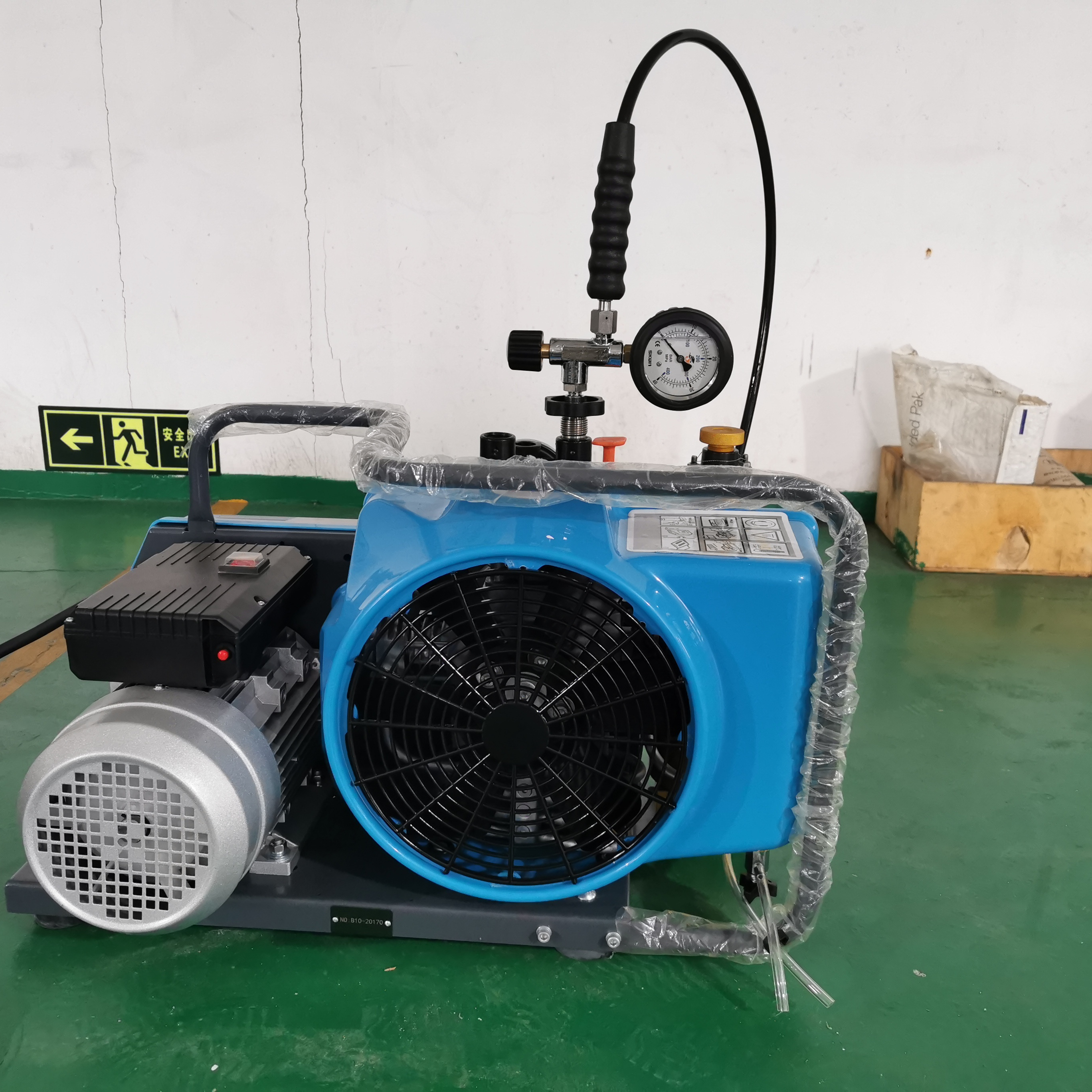

Hot Sale 265L/Min High Pressure Compressor for Filling Cylinders at Home on Boats or on Dive Trips
Product Description
PRODUCT DETAILS
Manufacturing Technique
This product is mass-produced after design changes and optimizations in accordance with the German model. The final piston adopts a special process, the piston ring adopts the Japanese Riken process, and all casting products are cast in a large-scale outsourcing factory. The product has been on the market for many years and has won users’ approval. Unanimously praised. This product adopts three-cylinder three-stage compression, splash lubrication, last-stage safety valve and filter system. HBBC-100 can provide safe compressed air for any industry that requires high-pressure pure air source, and provide safe compressed air that meets the requirements of human breathing. This product is designed, produced and tested and accepted in accordance with the requirements of GB/T 12929-2008 "Marine High Pressure Piston Air Compressor"; the air quality complies with the EN12021 international breathing compressor breathing standard; HBBC-100 is a kind of air compression equipment, it will be free 1 kg (1bar/0.1Mpa) of the air in the state is compressed to a high pressure gas with a gauge pressure of 300 kg (300bar/30Mpa). The oil and impurities in the high-pressure air can filter the inhaled air containing fine particles (PM2.5) to a safety value of less than 10 micrograms, which meets the standards set by the World Health Organization, making the exhaust gas clean and tasteless. The personnel provide highly purified, clean, odorless, safe and reliable compressed breathing air.
Specification
|
|
Work pressure
|
Displacement
（L/min）
|
Power
（KW）
|
Motor
（V）
|
Rotate speed
（rpm)
|
Compressor grade
|
Noise
（dB）
|
Cooling Method
|
Dimension
（cm)
|
|
|
|
|
|
|
|
|
|
|
|
|
HC-X100Q
|
30
|
100
|
5.5hp
|
Gasoline
|
2800
|
4
|
≤80
|
Air-cooling
|
50×33×52
|
|
HC-X100D
|
30
|
100
|
2.2
|
220/380
|
2800
|
4
|
≤80
|
Air-cooling
|
50×33×52
|
|
HC-W200D
|
30
|
200
|
4
|
380
|
1100
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W300D
|
30
|
300
|
5.5
|
380
|
1250
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W400D
|
30
|
400
|
7.5
|
380
|
1360
|
3
|
≤85
|
Air-cooling
|
100×60×72
|
|
HC-W400DZ
|
30
|
400
|
7.5
|
380
|
1360
|
3
|
≤70
|
Air-cooling
|
130×70×108
|
Product composition and characteristics
The rotating part is equipped with a protective cover device to ensure the safety of the operator;
High-strength nylon cooling fan for better heat dissipatione;
Three-cylinder three-stage compression, low compression ratio, reliable performance;
Motor drive or gasoline engine drive to meet the gas supply demand under various conditions;
Splash-type high-efficiency lubrication;
Air filter (paper filter element);
Oil-water separator (standard with manual blowdown);
Air purification system (standard with manual blowdown) activated carbon, molecular sieve, carbon monoxide absorption molecules constitute a triple breathing air purification system, reusable packing cartridge, simple and convenient replacement, saving cost;
Manual shutdown function (optional automatic shutdown);
Final safety valve, automatic discharge of over pressure;
Shockproof pressure gauge 0～5800psi/400bar;
The compressor base is made finely and durable;
Stainless steel cooling system;
