Quick Details
-
Voltage:
-
220V/380V
-
Power:
-
130KW/160KW/256KW/205KW
-
Weight:
-
3500 KG
-
Dimension(L*W*H):
-
39*1.5*2.5m
-
Product name:
-
Corn Flakes Production Line
-
Name:
-
Corn Flakes Processing Machine
-
Function:
-
Snack Processing Machine
-
Type:
-
Puffed Snacks Processing Machine
-
Material:
-
SUS304 Stainless Steel
-
Final product:
-
Puffing Food Processing Machine
-
Usage:
-
Puffing Snacks Processing
-
Suitable for:
-
Snacks Puffing Machine
-
Advantage:
-
Easy Operation High Efficiency
-
Item:
-
Corn Flakes Extruder
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHIYIN
-
Voltage:
-
220V/380V
-
Power:
-
130KW/160KW/256KW/205KW
-
Weight:
-
3500 KG
-
Dimension(L*W*H):
-
39*1.5*2.5m
-
Product name:
-
Corn Flakes Production Line
-
Name:
-
Corn Flakes Processing Machine
-
Function:
-
Snack Processing Machine
-
Type:
-
Puffed Snacks Processing Machine
-
Material:
-
SUS304 Stainless Steel
-
Final product:
-
Puffing Food Processing Machine
-
Usage:
-
Puffing Snacks Processing
-
Suitable for:
-
Snacks Puffing Machine
-
Advantage:
-
Easy Operation High Efficiency
-
Item:
-
Corn Flakes Extruder

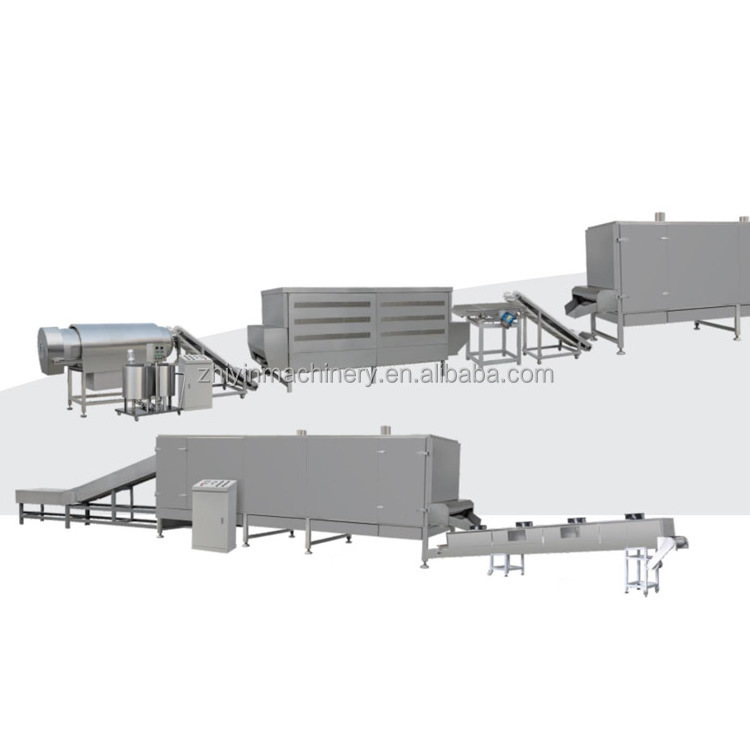

Product Description
Corn Flakes Extruder Breakfast Cereal Corn Flakes Production Line Cereal Puffed Food Machinery Snacks Processing Machine
Corn Flakes Extruder Breakfast Cereal Corn Flakes Production Line Cereal Puffed Food Machinery Snacks Processing Machine
Product description:
Corn flakes is a kind of crispy food which is processed by twin- screw extruder, add cocoa , sugar, honey and maltose as instant breakfast food for people Nowadays. Corn flakes processing machine Using corn grits (Powder), wheat flour, rice flour, oat meal, other grain meals as basic materials. Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel , flower and heart etc.
Specification
Corn Flakes Extruder Breakfast Cereal Corn Flakes Production Line Cereal Puffed Food Machinery Snacks Processing Machine
|
Model
|
ZYCP65
|
ZYCP70
|
ZYCP75
|
ZYCP85
|
|
Installed Power
|
130kw
|
160kw
|
256kw
|
205kw
|
|
Capacity
|
100-120kg/hour
|
200-260kg/hour
|
200-350kg/hour
|
300-500kg/hour
|
|
Dimension
|
39×1.5×2.5m
|
41×1.5×2.5m
|
52×1.5×2.6m
|
45×1.5×2.6m
|
Main Features of Corn flakes production line/Corn Flakes Making Machine
1. Easy to change mold,then can get more different shapes.
2. Made of high quality stainless steel,more safe and easy to clean.
3. Working stable,high efficiency.
4. Will change the voltage according customer’s request.
5. The main motor adopts the high quality y series two phase, three phase motor, ensures the power
to be strong.
6. The food produced by the corn flake extruder has unique shape, various tastes, scientific nutrition ratio and reasonable
structure design of the equipment.
7. The screw is special material, the equipment has the fast self-cleaning function,the machine stability is high, the operation is simple and easy to learn.
8. Accurate parameter control to ensure that the product has the same shape and taste
2. Made of high quality stainless steel,more safe and easy to clean.
3. Working stable,high efficiency.
4. Will change the voltage according customer’s request.
5. The main motor adopts the high quality y series two phase, three phase motor, ensures the power
to be strong.
6. The food produced by the corn flake extruder has unique shape, various tastes, scientific nutrition ratio and reasonable
structure design of the equipment.
7. The screw is special material, the equipment has the fast self-cleaning function,the machine stability is high, the operation is simple and easy to learn.
8. Accurate parameter control to ensure that the product has the same shape and taste
Corn Flakes Extruder Breakfast Cereal Corn Flakes Production Line Cereal Puffed Food Machinery Snacks Processing Machine
|
cheese corn puffs plant cheese puff snack food processing maker corn flour snacks pellet extruder machinery puffing rice processing machine
|
|
|
|
|
||||
|
NO.
|
Name
|
Dimensions
|
Power
|
Product usage
|
||||
|
1
|
Mix machine
|
1260*800*1200mm
|
75kw
|
Used for mixing raw corn flour with a small amount of liquid.
|
||||
|
2
|
Screw feeding machine
|
3100*590*2200mm
|
0.75kw
|
The mixed material is conveyed to the feed hopper of the extruder by a screw conveyor.
|
||||
|
3
|
Twin screw extruder
|
5000*1200*1500mm
|
165kw
|
The twin-screw dry extruding extruder is used to extrude the mixed corn flour instantaneously and produce high expanded granules.
|
||||
|
4
|
Vibrating screen
|
1530*820*790mm
|
0.55kw
|
Removal of debris after the formation of highly expanded particles.
|
||||
|
5
|
Air pressure conveyor
|
1200*530*2500mm
|
1.1kw
|
The high compression particles are transported to the Tableting machine by air transport mode.
|
||||
|
6
|
Tableting machine
|
8460*1300*1940mm
|
12.25kw
|
The highly compressed particles are pressed into sheets.
|
||||
|
7
|
Electric oven
|
8460*1300*1940mm
|
66kw
|
There is a good insulation layer between the working room and the box shell, which improves the evenness of temperature in the
box; Drying the product gets rid of excess moisture and increases its shelf life. |
||||
|
8
|
Hoisting machine
|
1579*700*1460mm
|
0.55kw
|
Batch in a Vibrating distributor using a hoist via a post-oven cornflakes.
|
||||
|
9
|
Vibrating distributor
|
1300*1200*1450mm
|
0.37kw
|
The cornflakes are evenly distributed by vibration, so that the products can be more evenly into the high temperature oven.
|
||||
|
10
|
High temperature oven
|
8710*1490*1845mm
|
1.5kw
|
The corn flakes are puffed again at high temperature in the oven to achieve a more crisp taste.
|
||||
|
11
|
Spray candy machine
|
820*540*1680mm
|
4.12kw
|
The machine achieves thermal insulation for the syrup, which can prevent the syrup from cooling into agglomerates. It contains a
nozzle system. |
||||
|
12
|
Seasoning line
|
3750*870*1780mm
|
1.12KW
|
The Spray nozzle system completes the sugar spraying process on the surface of corn flakes in the seasoning machine.
|
||||
|
13
|
Climbing the oven
|
8040*1290*1920mm
|
66kw
|
Dry the sugar and water on the surface of cornflakes.
|
||||
|
14
|
Cooling line
|
5000*500*750mm
|
0.75kw
|
After spraying sugar on the cornflakes out of the dryer after cooling.
|
||||
|
15
|
Packing machine
|
1600*1000*1600mm
|
2kw
|
The finished corn flakes after cooling are automatically weighing and packing
|
||||
