Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Protection Grade:
-
IP65
-
Output signal:
-
NPN+PNP dual output
-
Working temperature:
-
-25C to 80C
-
Power supply:
-
DC 10V to 30V
-
Material:
-
316 Stainless Steel
-
Maximum output current:
-
100mA
-
Working power:
-
<0.5W
-
Detection object:
-
Highly viscous Low corrosive material
-
Detection speed:
-
20ms, 50hz frequency
-
Protection:
-
polarity reverse/overcurrent
Quick Details
-
Mounting Type:
-
external
-
Description:
-
other, liquid proximity sensor
-
Model Number:
-
other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Protection Grade:
-
IP65
-
Output signal:
-
NPN+PNP dual output
-
Working temperature:
-
-25C to 80C
-
Power supply:
-
DC 10V to 30V
-
Material:
-
316 Stainless Steel
-
Maximum output current:
-
100mA
-
Working power:
-
<0.5W
-
Detection object:
-
Highly viscous Low corrosive material
-
Detection speed:
-
20ms, 50hz frequency
-
Protection:
-
polarity reverse/overcurrent

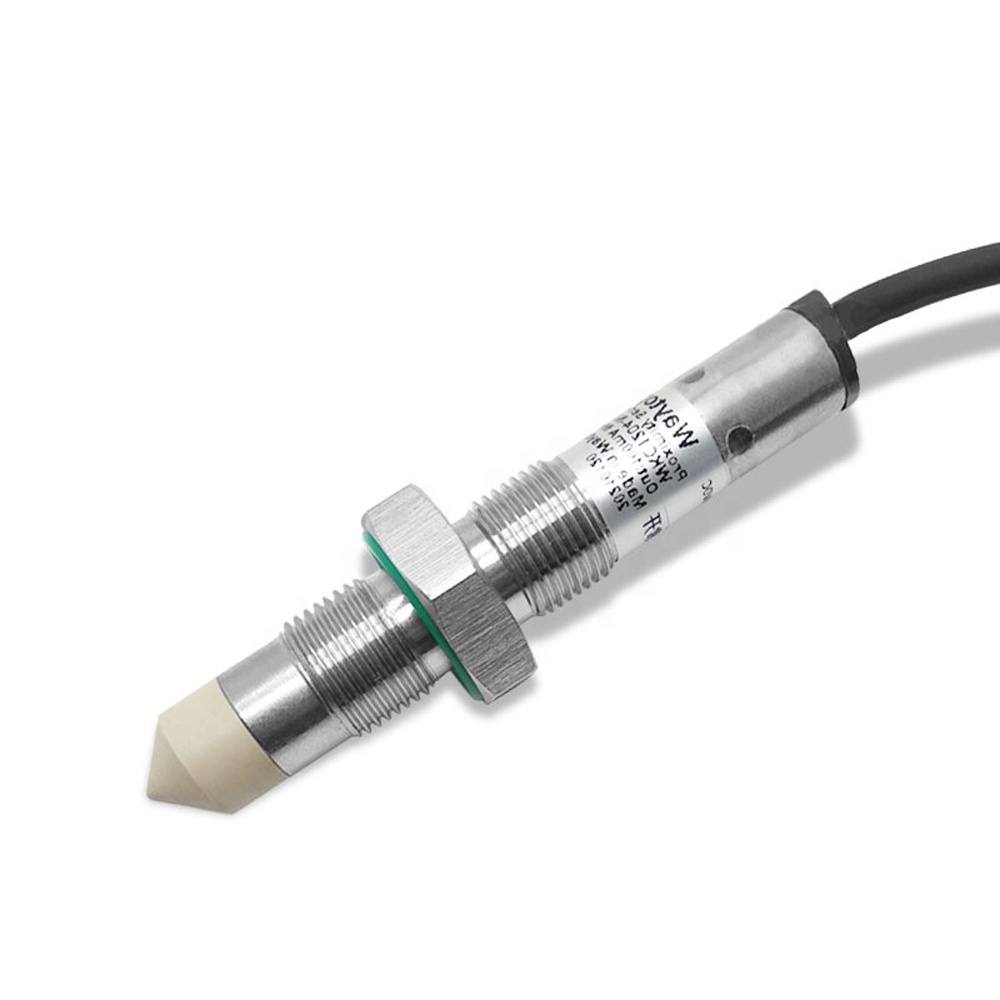

Taidacent NC NO Capacitive Oil Tank Level Gauge Detector Capacitive Liquid Level Transducer Fluid Level Probe Proximity Switch
Product Description
1. Designed for liquid level detection of high-viscosity liquids such as glue, lubricating oil/grease, ink, etc.
2. Capacitive detection determines the presence or absence of liquid and distinguishes liquid by detecting the capacitance of the liquid.
3. The anti-hanging liquid design of the conical head, whether it is installed vertically or sideways, reduces the occurrence of liquid hanging on the detection head as much as possible
4. High-strength structure and sealing design can resist the pressure of 0.3 MPa.
5. Special circuit design Even if there is liquid residue in the probe part, foam, scab, etc., the appearance of false signals can be avoided by adjusting the sensitivity. (Stability details are designed with temperature compensation, reverse polarity protection, and overvoltage protection to improve reliability. This product can be stably detected in the range of low temperature -25°C and high temperature 75°C. These detailed designs largely ensure the detection Stability of performance. The shell is 316 stainless steel, with general anti-corrosion ability, M12*1 standard thread, easy to install.
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Model Number
|
liquid proximity sensor
|
|
Protection Grade
|
IP65
|
|
Output signal
|
NPN+PNP dual output
|
|
Working temperature
|
-25C to 80C
|
|
Power supply
|
DC 10V to 30V
|
|
Material
|
316 Stainless Steel
|
|
Maximum output current
|
100mA
|
|
Working power
|
<0.5W
|
|
Detection object
|
Highly viscous Low corrosive material
|
|
Detection speed
|
20ms, 50hz frequency
|
|
Protection
|
polarity reverse/overcurrent
|
Packing & Delivery
Box package
