Quick Details
-
Brand Name:
-
MEIZLON
-
Voltage:
-
380/415V or customized
-
Dimension(L*W*H):
-
2000*1200*1000mm
-
Weight:
-
1500kg
-
Certification:
-
CE , ISO , TUV , SGS
-
Power:
-
4kw
-
Automatic Grade:
-
Semi-automatic
-
Screw Diameter:
-
21.7mm
-
Groove depth:
-
3.85mm
-
L/D:
-
28-60
-
Main motor power:
-
4KW
-
Screw rotating speed:
-
600rpm/min
-
Output:
-
5-15kg/h
-
Color:
-
Any color as you require
-
Warranty:
-
One year free
-
Design:
-
Customized
-
Main motor:
-
SIEMENS
Quick Details
-
Screw Design:
-
Double-screw
-
Model Number:
-
MTE20
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEIZLON
-
Voltage:
-
380/415V or customized
-
Dimension(L*W*H):
-
2000*1200*1000mm
-
Weight:
-
1500kg
-
Certification:
-
CE , ISO , TUV , SGS
-
Power:
-
4kw
-
Automatic Grade:
-
Semi-automatic
-
Screw Diameter:
-
21.7mm
-
Groove depth:
-
3.85mm
-
L/D:
-
28-60
-
Main motor power:
-
4KW
-
Screw rotating speed:
-
600rpm/min
-
Output:
-
5-15kg/h
-
Color:
-
Any color as you require
-
Warranty:
-
One year free
-
Design:
-
Customized
-
Main motor:
-
SIEMENS

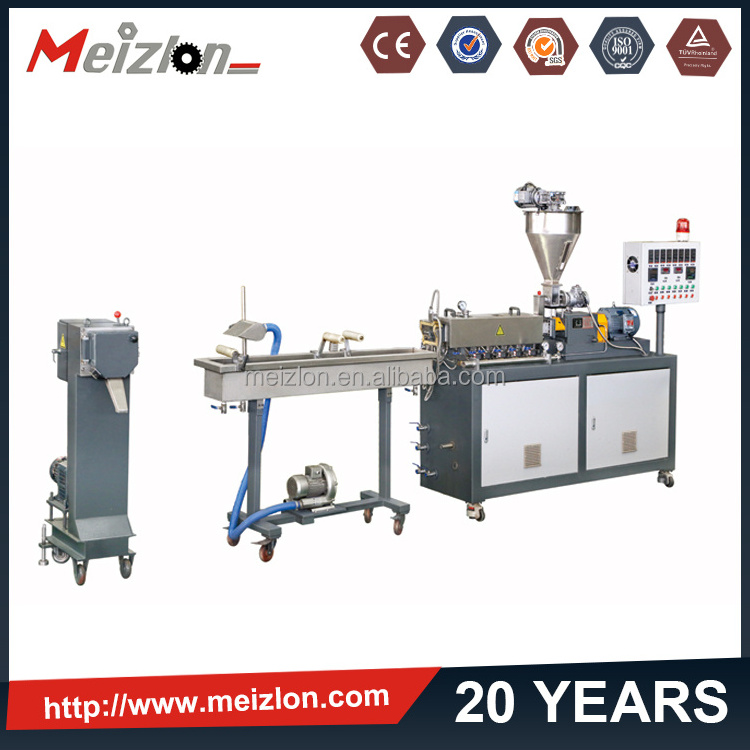

PET bottles flakes scraps granulating pelleting line/ pallet granula Extruding Line/small plastic products making machine
|
>>Gearbox
Reduction transmission: High torque gearbox
|
|
> >Screw Screw Kneading block built on modular principle allows various L/D ratio of screw easily be changed to suit different material. Screw component made of high speed & wear-resisting steel. |
|
|
> >Barrel
By means of the replaceable screw barrel sections, the
processing sections is devided into individual zones. The barrels are heated electrically. In addition, the barrels are provided with longitudinal bores for cooling with water. Uniform temperature distribution, namely on the circumference of the eightshaped barrel bore, is achieved by a reverse forceflow temperature
|
|
Model /Parameter |
Screw Diameter/mm |
Groove depth/mm |
L/D |
Main motor power/KW |
Screw rotating speed(rpm/min) |
Output(kg/h) |
| MT-20 | 21.7 | 3.85 | 28/60 | 4 | 600 | 5-15 |
| MT-26 | 25 | 4.1 | 28/60 | 5.5-10 | 600 | 10-40 |
| MT-36 | 35.6 | 6 | 28-60 | 15-22 | 600 | 15-80 |
| MT-40 | 41 | 7 | 28-60 | 30-37 | 500/600 | 50-150 |
| MT-50 | 50.5 | 9 | 28-60 | 37-55 | 500/600 | 80-200 |
| MT-60 | 60 | 10 | 28-60 | 45-75 | 400/500/600 | 100-300 |
| MT-65 | 62.4 | 11 | 28-60 | 55-90 | 400/500/600 | 150-400 |
| MT-75 | 71 | 12 | 28-60 | 110-250 | 400/500/600 | 250-800 |
| MT-95 | 92 | 16.3 | 28-60 | 200-315 | 400/500/600 | 650-1500 |
| MT-135 | 133 | 23.5 | 28-48 | 600 | 300/400 | 1500-3000 |
application for plastic
