1 .Specially used for the transportation of various contain it can be used repeat-edly for a long time and has sufficient strength.
2. By using containers to transport goods,they can be loaded directly at theshipper's warehouse and unloaded at the consignee's warehouse. When changingvehicles or ships midway, there is no need to remove the goods from the container for replacement.
3. Container semi trailers can be quickly loaded and unloaded, and can be easilytransferred from one transportation tool to another.
- Product Details
- {{item.text}}
Quick Details
-
Size:
-
12400*2500*1500mm (customizable)
-
Place of Origin:
-
Shandong
-
Product name:
-
Skeleton container trailer
-
Function:
-
Transport 20ft 40ft 45ft Container
-
Color:
-
Customized Color
-
Landing Gear:
-
JOST
-
Axle:
-
2/3/4 Axle
-
Suspension System:
-
Mechanical/Air Suspension
-
Tire:
-
12R22.5 optional
-
King pin:
-
2"(50mm) or 3.5"(90mm)
-
Brake System:
-
WABCO
-
Tool box:
-
1 pc
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
Benchi
-
Size:
-
12400*2500*1500mm (customizable)
-
Place of Origin:
-
Shandong
-
Product name:
-
Skeleton container trailer
-
Function:
-
Transport 20ft 40ft 45ft Container
-
Color:
-
Customized Color
-
Landing Gear:
-
JOST
-
Axle:
-
2/3/4 Axle
-
Suspension System:
-
Mechanical/Air Suspension
-
Tire:
-
12R22.5 optional
-
King pin:
-
2"(50mm) or 3.5"(90mm)
-
Brake System:
-
WABCO
-
Tool box:
-
1 pc
Product Description
Specification
|
Overall Parameters
|
|
|
|
Overall dimensions
|
12400mm*2500mm*1500mm/customizable
|
|
|
Platform Height
|
1500mm/customizable
|
|
|
Front side wall height
|
400-450mm/customizable
|
|
|
Main Beam
|
|
|
|
Main Beam Height
|
500mm
|
|
|
Upper Wing Plate Thickness
|
14mm
|
|
|
Lower Wing Plate Thickness
|
16mm
|
|
|
Middle Plate Thickness
|
8mm
|
|
|
Side Beam
|
|
|
|
Material and shape
|
Double T iron Steel
|
|
|
dimensions
|
160mm
|
|
|
Axle
|
|
|
|
Axle Number
|
3
|
|
|
Wheel base
|
1840mm
|
|
|
Axle load
|
16T
|
|
|
Tyre
|
|
|
|
Brand
|
Ling Long/others customizable
|
|
|
Tread
|
1840mm
|
|
|
Specification
|
825-20
|
|
|
Quantity
|
12
|
|
|
Spare Tire Carrier
|
1 SET
|
|
|
Suspension
|
|
|
|
Type
|
Mechanical suspension
|
|
|
Number of leaves
|
10
|
|
|
Thickness
|
8mm
|
|
|
Landing Gear
|
|
|
|
Material and type
|
Steel 28t, 2 speed
|
|
|
Other Parameters
|
|
|
|
King pin
|
50/90
|
|
|
Brake System
|
WABCO
|
|
|
ABS
|
optional
|
|
|
Tool Box
|
1
|
|
|
Electrical system
|
24V Waterproof
|
|

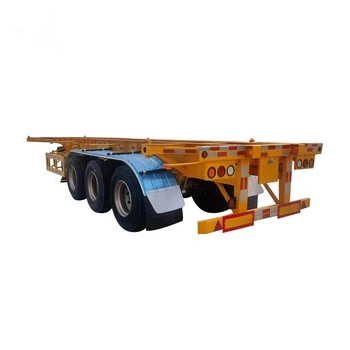

Details Images of flatbed trailer
