Quick Details
-
Panel Efficiency:
-
23.7%
-
Application:
-
Outdoor
-
Solar cell:
-
Sunpower
-
Certificate:
-
CE, FCC, ROHS, REACH
-
Front Surface:
-
ETFE
-
Lamination:
-
Water-proof cloth
-
Type of Connector:
-
DC + USB + Type-C
-
Efficiency:
-
23.7%
-
Net weight:
-
2.9KG
-
Open size:
-
1330 *530mm
Quick Details
-
Model Number:
-
DF100-20SP4H
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1330*530mm
-
Panel Efficiency:
-
23.7%
-
Application:
-
Outdoor
-
Solar cell:
-
Sunpower
-
Certificate:
-
CE, FCC, ROHS, REACH
-
Front Surface:
-
ETFE
-
Lamination:
-
Water-proof cloth
-
Type of Connector:
-
DC + USB + Type-C
-
Efficiency:
-
23.7%
-
Net weight:
-
2.9KG
-
Open size:
-
1330 *530mm
Product Description

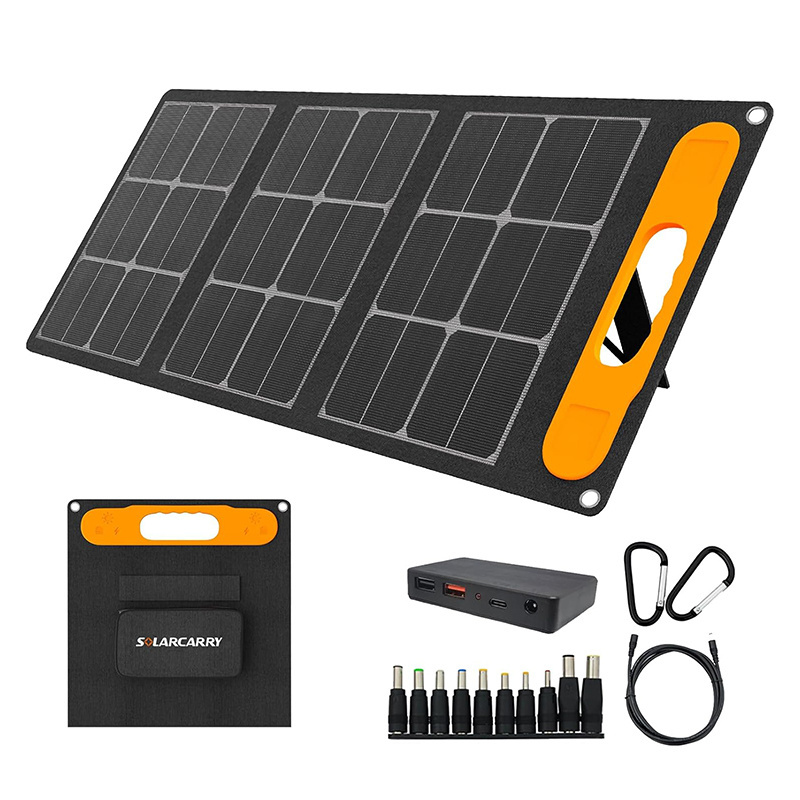

Only focus on portable solar since 2013!
*SunPower cells are the #1 choice for charging due to the combination of high efficiency and ruggedness
*Portable design is better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.
*ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance.
*Longer service life is for higher cost performance.
Details Images
Specification
Mechanical Specifications
|
Solar Cell
|
SunPower
|
|
Surface material
|
ETFE
|
|
Cloth color
|
Black
|
|
No. of folding
|
4 = 1 * 4
|
|
Net weight
|
2.9 KG
|
|
Type of Connector
|
DC + USB + Type-C
|
|
Additional design
|
Kickstands
|
|
Certifications
|
CE, FCC, ROHS, REACH
|
Electrical Specifications
|
Standard Test Condtion
|
Irrandiance 1000W/㎡ Module temperature 25℃,AM=1.5
|
|
Maximum power(Pm)
|
100W
|
|
Voltage at max power(Vmp)
|
20V
|
|
Current at max power(Imp)
|
5.0A
|
|
Open circuit voltage(Voc)
|
24V
|
|
Short circuit current(Isc)
|
5.4A
|
|
Temperature Coefficient of Pmax
|
(-0.41% /ºC)
|
|
Temperature Coefficient of Voc
|
(-0.33% /ºC)
|
|
Temperature Coefficient of Isc
|
(+0.06% /ºC)
|
|
Power Tolerance
|
-0%, +5%
|
|
Operating Temperature
|
-20℃~65℃
|
|
Maximum System Voltage
|
300V DC
|
|
Noct*
|
45℃ ± 2℃
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
